GPON ONT 4GE WIFI POTS FTTX

$31.00

10-49 Piece/Pieces
$30.00

50-99 Piece/Pieces
$27.00

≥100 Piece/Pieces

Transportation:: Ocean, Land, Air

Port:: SHENZHEN, SHEKOU, YANTIAN

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Productivity:	50000
Supply Ability:	50000
Payment Type:	T/T
Incoterm:	FOB,CFR,CIF,EXW,FCA,CPT,CIP
Certificate:	CE,ROHS,3C
HS Code:	8517622990
Transportation:	Ocean,Land,Air
Port:	SHENZHEN,SHEKOU,YANTIAN

Product Description

What are the integration levels of the triple play?

Triple play is a broad and social term. At this stage, it does not mean the physical integration of the three major networks of telecommunication network, computer network and cable television network, but mainly refers to the integration of high-level business applications.The integration of the three networks is conceptually analyzed from different angles and levels, which can involve technology integration, business integration, industry integration, terminal integration and network integration.One of the main ports of triple play devices is the Phone Port, also known as Telephone Port, FXS Port, VoIP/FXS Port, providing users VoIP Function.

Product Overview:

It is the Network Device terminal for ONT in the EPON system, cooperating with OLT. ONT can provide various broadband services to the connected users, such as Internet, VoIP, IPTV, Video Conference and other businesses.It provides a PON interface, four 10/100/1000m adaptive Ethernet ports, and a USB interface based on mature, stable, cost-effective EPON technology.Single fiber WDM technology (down 1490nm, up 1310nm) is adopted to connect only one fiber to OLT, and the maximum transmission distance is up to 20km. It supports the power down and report function and supports the local WEB management function.

Triple Play

Product Interface:

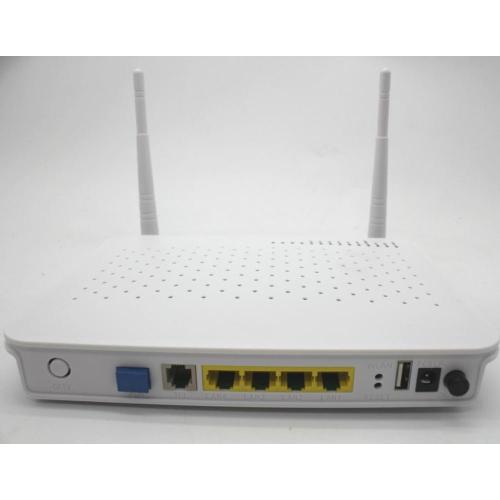

Interface: Hardware Interface: facing the interface direction from left to right, in order of interface:

PON Interface;VoIP/Fxs Port;Net Port 4-Net Port 1;Wireless Switch;Reset Key;USB Interface;DC 12-Volt Interface;Power Switch

Indicator Light: LED definition from left to right:

Power Supply;Fiber G;Optical Signal;Broadband;Phone Port;Port 1-4;USB

Product Feature:

HGU ONU product configuration, support bridge and NAT mode
BOB product process
802.11 b/g/n wireless access
Wireless use of 2*3dbi external dual antenna
USB interface supports configuration saving and recovery
12v / 1.5a external power supply
Provide a VoIP port for ordinary telephone

Product Key Features：

Business Performance:

Supports Spanning Tree;
Two-layer bidirectional line-speed forwarding of data services, support 2K MAC address tables in bridge mode;
3/4-layer hardware NAT/NAPT;
Support 802.3, 802.1q Tag/Untag Ethernet frames;
MAC support ACL rules, IP, TCP/UDP, ICMP and IGMP, IPV6 format;
Each port has eight priority queues, supporting 32 Shared tables with a granularity of 8kpbs；
Supports 8 enhanced filter database stack vlans and port isolation for use；
Port mirroring with multicast monitoring source ports is supported to monitor target ports；
Support port IEEE802.3ad link aggregation, up to 4G bandwidth；
Support DOS attack prevention；
Support in port-based flow control, for exceeding the flow, you can choose to drop the packet or Pause frame back pressure, Support QoS function;
