GPON ONT 4GE WIFI CATV POTS USB

$43.00

10-49 Piece/Pieces
$42.00

50-99 Piece/Pieces
$41.00

≥100 Piece/Pieces

Transportation:: Ocean, Land, Air

Port:: SHENZHEN, SHEKOU, YANTIAN

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Productivity:	50000
Supply Ability:	50000
Payment Type:	T/T
Incoterm:	FOB,CFR,CIF,EXW,FCA,CPT,CIP
Certificate:	CE,ROHS,3C
HS Code:	8517622990
Transportation:	Ocean,Land,Air
Port:	SHENZHEN,SHEKOU,YANTIAN

Product Description

What is triple play?

Triple play is a broad and social term. At this stage, it does not mean the physical integration of the three major networks of telecommunication network, computer network and cable television network, but mainly refers to the integration of high-level business applications.Mainly refers to the integration of high-level business applications, which is manifested in the technical consistency, interconnection and intercommunication can be realized at the network layer, forming seamless coverage, mutual penetration and crossover at the business layer, and the tendency to use a unified IP protocol at the application layer to provide The same goals of diversified, multimedia, and personalized services are gradually converging, and through different security protocols, a set of operation and maintenance models compatible with multiple services in the network is finally formed.One of the main ports of triple play devices is the Phone Port, also known as Telephone Port, FXS Port, VoIP/FXS Port, providing users VoIP Function.

Product Interface:

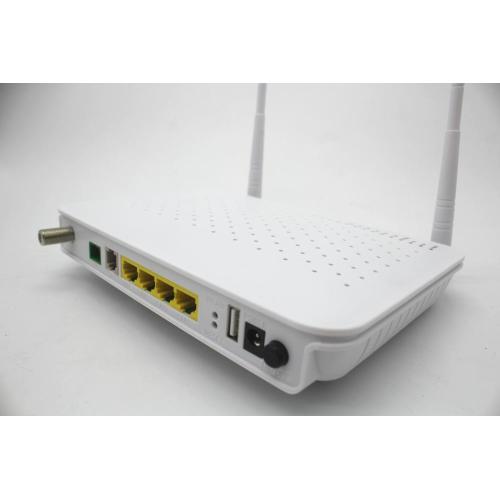

Interface: Hardware Interface: facing the interface direction from left to right, in order of interface: CATV Interface;PON Interface;VoIP/Fxs Port;Net Port 4-Net Port 1;Wireless Switch;Reset Key;USB Interface;DC 12-Volt Interface;Power Switch
Indicator Light:
LED definition from left to right: Power Supply;Fiber G;Optical Signal;Phone Port;Broadband;Port1-4;USB

Telephone Port

HGU ONU product configuration, support bridge and NAT mode
BOB product process
802.11 b/g/n wireless access
Wireless use of 2*3dbi external dual antenna
USB interface supports configuration saving and recovery
12v / 1.5a external power supply
Provide a VoIP port for ordinary telephone
One CATV interface

Product Key Features：

Business Performance:

Supports Spanning Tree;
Two-layer bidirectional line-speed forwarding of data services, support 2K MAC address tables in bridge mode;
3/4-layer hardware NAT/NAPT;
MAC support ACL rules, IP, TCP/UDP, ICMP and IGMP, IPV6 format;
Each port has eight priority queues, supporting 32 Shared tables with a granularity of 8kpbs；
Supports 8 enhanced filter database stack vlans and port isolation for use；
Port mirroring with multicast monitoring source ports is supported to monitor target ports；
Support port IEEE802.3ad link aggregation, up to 4G bandwidth；
Ethernet supports 802.1Qav and 802.1AS/1588v2 timing synchronization；
Support DOS attack prevention；
Support IEEE 802.3az energy-saving Ethernet capability, support 1000base-t, 00base-tx full duplex and 10base-full/half duplex modes；
Support in port-based flow control, for exceeding the flow, you can choose to drop the packet or Pause frame back pressure, Support QoS function;

WIFI Port Feature;CATV Port Feature;VOIP Feature

Specification:

Ambient temperature, offset (℃): -40`85
Digital and analog power supply voltages (VDC): Minimum 3.135, Typ. 3.3 Maximum 3.465
Ultimate condition: battery voltage (active state) (VDC): -105VDC ~ -12VDC
Line current (mA): Minimum 18, Typ. 25 Maximum 45
Ringing voltage (Vrms): Typ. 50 Maximum 65
Second-line return loss (dB): Typ. 30
Longitudinal balance (dB): Typ. 58
Device power consumption (continuous) (W): Typ. 1.5
Connect to ambient thermal resistance (℃/W): Typ. 29
