1GE 1FE 1POTS GPON Terminal Device ONU

GPON has a strong QOS capability. The smallest unit of its processing is T-CONT. Through the dynamic bandwidth allocation algorithm OBA, it acts on T-CONT to complete the dynamic allocation of upstream and downstream bandwidth in the system. Different T-CONTs have different The bandwidth allocation method can meet the different QOS requirements of different data streams such as time delay. The two-tier scheduling mechanism makes the scheduling of data streams accurate and efficient, which makes it possible to distinguish users and service values and provide differentiated services.

GPON ONU Product Introduction:

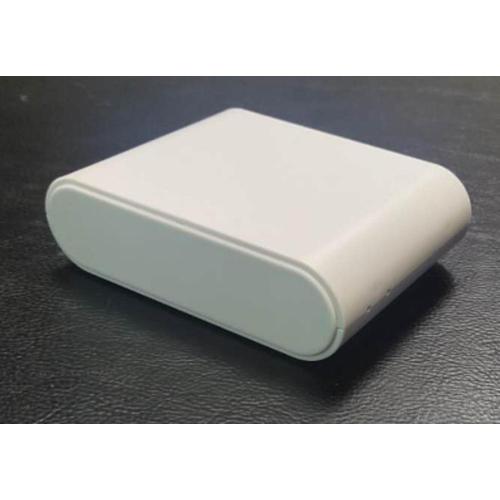

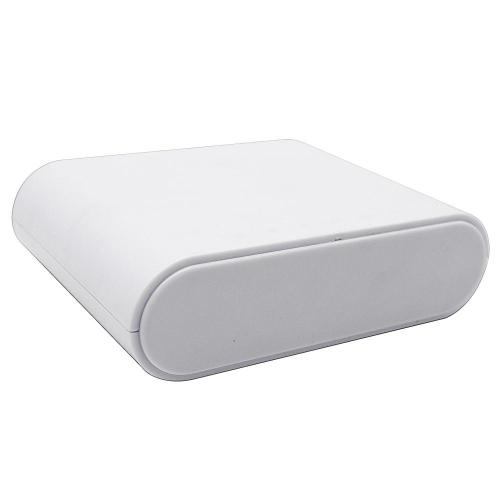

GL-G8011U-HZ is GPON terminal device,work with OLT,it can provide Internet,VOIP,V..It is based on mature and stable cost-effective GPON technology,providing 1 PON port,1 10/100/1000M,1 10/100M, 1 VOIP port.Adopt single fiber WDN technology(downlink 1490nm,uplink 1310nm),require only one fiber to connect with OLT,the longest transmitting distance can be 40KM,support power down report function,support local WEB management function.

GPON Voip Onu Product Interface:

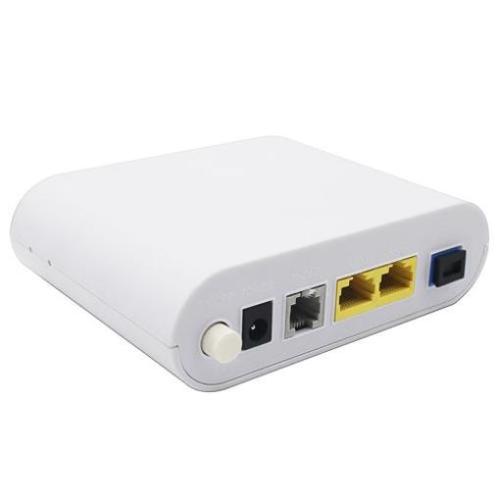

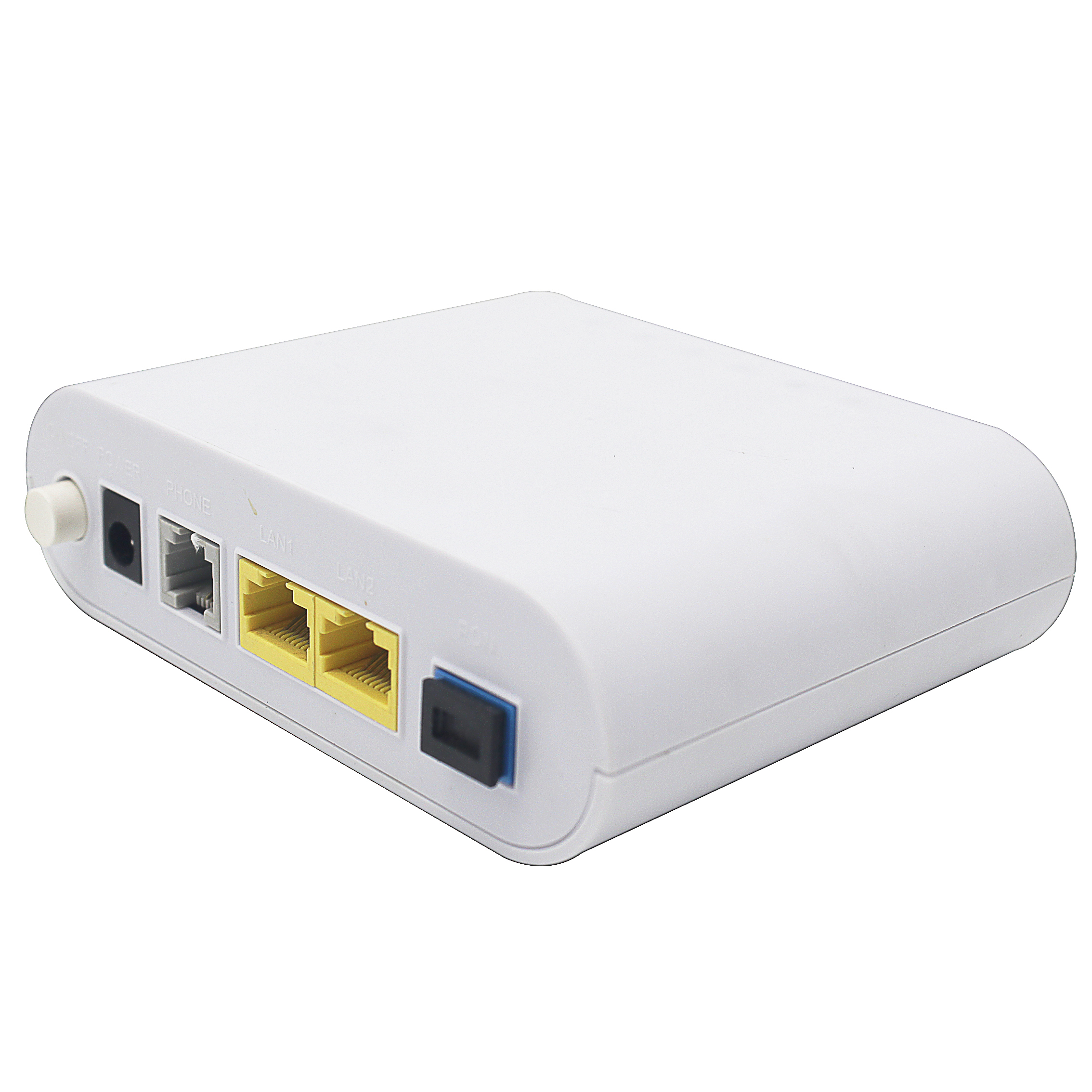

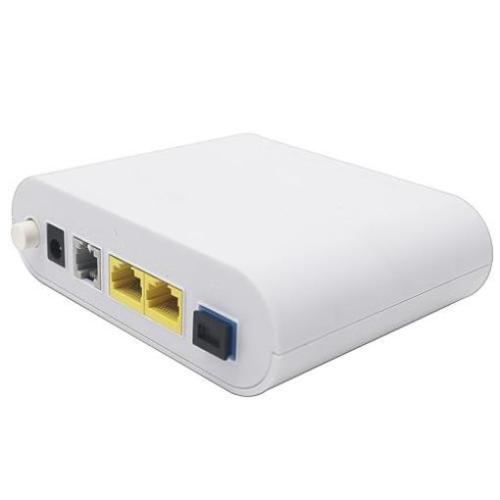

Ports:hardware connection,from left to right as per connection direction,connection sequence:RJ11 Telephone Port,internet port 2 to 1,reset button,USB port,DC12V port,power switch.Indicator light:LED definition from left to right:power,fiber G,fiber signal,broadband,telephone,internet port 1 to 2.

1) Port:Power:external power 12V/1.5A;Internet access:2pcs.support 10/100/1000M self-adaption;Optical port:one SC/PC port;Telephone Port(Pots Port):one RJ11 Telephone Port; CPU: MAC built-in 800Mhz ARM processor;

3) Product size:Product size:163X125X50 mm;

4) Storage temperature humidity:-10°C-55°C 5%-95% non-condensing  Working temperature humidity:-10°C-50°C  5%-95% non-condensing.               Packaging Details：
