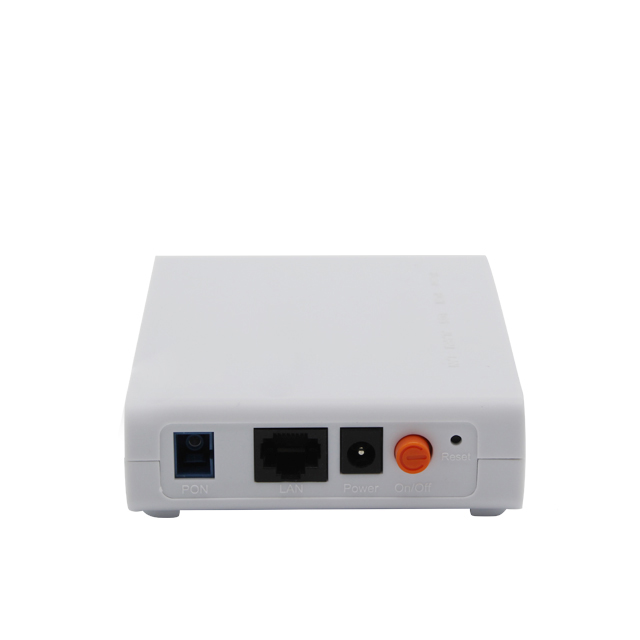

Wholesale Single Port Gpon Onu with FTTH Network
-
$5.00100-499 Piece/Pieces
-
$4.90500-999 Piece/Pieces
-
$4.80≥1000 Piece/Pieces
- Transportation:
- Ocean, Land, Air, Express, OTHERS
- Port:
- SHENZHEN, SHEKOU, YANTIAN
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | GUANGDONG |
|---|---|
| Productivity: | 10000PCS/ PER MONTH |
| Supply Ability: | 10000PCS /PER MONTH |
| Payment Type: | T/T,Paypal |
| Incoterm: | FOB,EXW |
| Certificate: | FCC, RoHS, CE |
| HS Code: | 8517622990 |
| Transportation: | Ocean,Land,Air,Express,OTHERS |
| Port: | SHENZHEN,SHEKOU,YANTIAN |
Ont (optical network terminal) is a product of the xpon network access scheme. Generally speaking, ont is ONU, which is a kind of optical network terminal used for client. Strictly speaking, ont should be a part of ONU. The difference between ont and ONU is that ont is an optical network terminal directly located at the user end, while ONU is an optical network unit, and there may be other networks.
Technical Parameter:
|
Module |
G8010U-FZ |
|
User interface |
1 10/100/1000M RJ45 port. |
|
PON |
Transmission speed: upstream 1.25Gbps, downstream 1.25Gbps Network coverage radius: 20KM Optical receive sensitivity: -25dBm Luminous power:＞0dBm Security: ONU authentication mechanism |
|
VLAN |
Port-based VLAN IEEE 802.1Q VLAN |
|
QOS |
Backpressure flow control (half-duplex) IEEE 802.3x flow control (full-duplex) Prevent Head of Line IEEE 802.1p, CoS WR, SP and FIFO queue scheduling algorithm Port rate limit |
|
Safety |
IEEE 802.1x, access control based upon Port; support local and remote RADIUS. CHAP, EAP certification; Storm control, port protection, |
|
Router |
Support Router |
|
Management |
Web, TELNET |
|
Size |
117mm(L) ×88mm(W) ×32mm(H) |
|
Environment |
Operating temperature:0℃～50℃; Operating humidity:10%～85% non-condensing |
|
Storage temperature:-40℃～80℃; Storage humidity:5%～95% non-condensing |
|
|
Power supply |
110～240VAC 12V/0.5A DC Power interface size: 2.5mm |
|
Power Consumption |
2.5W |
Packaging Details:
