GPON 1GE 1FE 1POTS ONT

GPON 1GE 1FE 1POTS ONT

What is onu router mode?

Broadband dialing has been carried out in the optical modem, and the LAN port of the optical modem can directly access the Internet.The routing mode is that the optical modem directly dials to distribute the IP address

Product introduction:

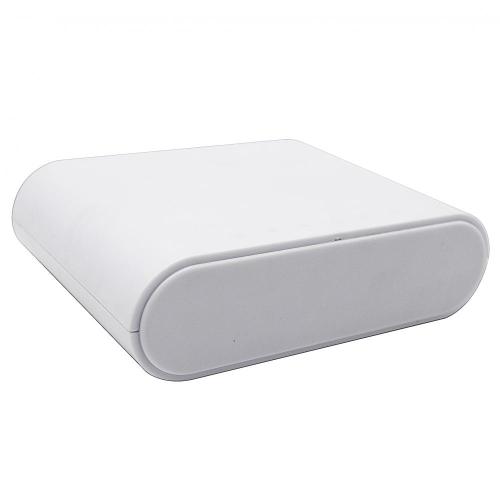

GL-G8011U-H is GPON terminal device,work with OLT,it can provide Internet,VOIP,It is based on mature and stable cost-effective GPON technology,providing 1 PON port,2 10/1000M,1 VOIP port.Adopt single fiber WDN technology,require only one fiber to connect with OLT,the longest transmitting distance can be 40KM,support power down report function,support local WEB management function.

Product interface:

Ports:hardware connection,from left to right as per connection direction,connection sequence:RJ11 telephone port,internet port 2 to 1,reset button,USB port,DC12V port,power switch.Indicator light:LED definition from left to right:power,fiber G,fiber signal,broadband,telephone,internet port 1 to 2.

Port feature

1)HGU ONU product modality,support bridge and NAT mode.2)BOB product process 3)802.11b/g/n wireless access 4)Provide VOIP port,support connecting normal telephone 6)12V/1.5A external power

Product key features:

1)Processor features:support 800MHz frequency ARM processor;support 32KB I-Cache and D-Cache 2)VOIP function

1) Port:Power:external power 12V/1.5A;Internet access:2pcs.support 10/100/1000M self-adaption;Optical port:one SC/PC port;Telephone port:one RJ11 telephone port;2) hardware key equipment specification;CPU:MAC built-in 800Mhz  ARM processor  MAC:ZX297100A FLASH:NAND FLASH  1Gbit    DDR:1Gbit  SLIC:Le96413) Product size:163X125X50 mm 4) Reliability and environmental suitability:storage temperature humidity:-10°C—55°C   5%—95% non-condensing  Working temperature humidity:-10°C—50°C  5%—95% non-condensing Atmospheric pressure:62kPa—106kPa Anti-thunder:line-lin:require 1.5KV Port-Land:require 6KV Anti-static:air discharge require 8KV Contact discharge:require 6KV
