Dual band include 2 frequency which are 2.5G and 5G.

Product Overview:

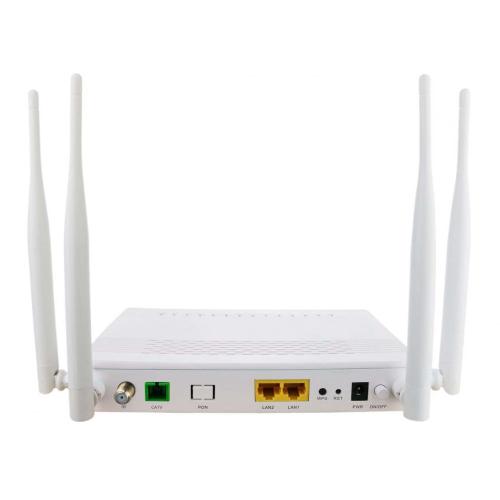

GL-G8020U-GCW-D terminal devices are designed for fulfilling FTTH and triple play service demand of fixed network operators or cable operators. The box is based on the mature Gigabit GPON technology, which have high ratio of performance to price, and the technology of 802.11AC/n/g/b WiFi (2T2R), Layer 2/3, CATV support WDM as well. They are highly reliable and easy to maintain, with guaranteed QoS for different service. And It is fully compliant with technical regulations such as ITU-T G.984.x and technical requirement of GPON Equipment from China Telecom.

Product Specification:

• Parameter: Nominal
• Dimension: 210mm×130mm×30mm（L×W×H）
• Net weight: 0.3kg
• Typical power consumption: <7W
• Noise: None
• Cooling style: Naturally cooling
• Power supply: 12V DC  1A（By external AC/DC adapter）
• Installation style: Support PC, wall mount or put inside of information box.
• Environment: -5~50℃
• Atmospheric pressure: 70~106Kpa
• MTBF: 50,000hours
• MTTR: 30minutes
•


• Parameter: Nominal
• Connector style: SC/PC
• PON quantity: 1
• Fiber style: Single mode
• Wavelength: TX：1310 +/-20nm
• Wavelength: RX：1490 +/-10nm
• PON interface standard: ITU-T G.984.2/ITU-T G.984.3/ITU-TG.988 Class B+
• PON interface receiving rate: 2.488Gpbs
• PON interface transmitting rate: 1.244Gpbs
• Wavelength: Min: 0dBm, Max: +5dBm
• Optical receiver sensitivity: Precede -28dBm
• The length of the optical link: Max 20km
