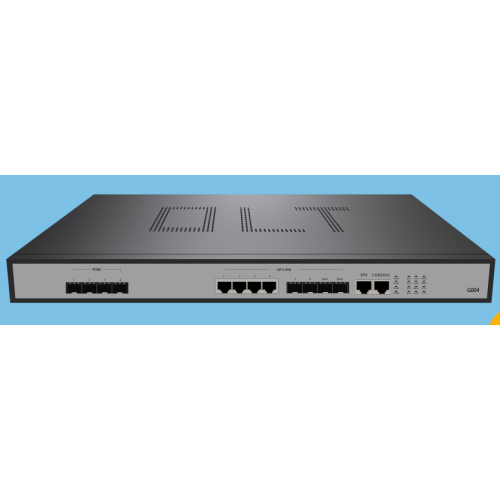

GPON OLT 4PON with 10G SFP

$1000.00

≥1 Piece/Pieces

Min. Order:: 1 Piece/Pieces

Min. Order:: 1 Piece/Pieces

Transportation:: Ocean, Land, Air

Port:: SHENZHEN, SHEKOU, YANTIAN

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Productivity:	500000
Supply Ability:	5000/Month
Payment Type:	T/T
Incoterm:	FOB,EXW
HS Code:	8517622990
Transportation:	Ocean,Land,Air
Port:	SHENZHEN,SHEKOU,YANTIAN

Product Description

Gpon Olt 4 Pon with 10G Sfp Fiber Port

The OLT is the core component of the optical access network, equivalent to the switch or router in the traditional communication network, and is also a multi-service providing platform. Generally placed at the central office to provide optical fiber interfaces for user-oriented passive optical networks

GPON 4PON OLT:

lU 19 inch

1+1 power redundancy

4 * fixed GPON port

4GE RJ45, 2*GE Sfp Fiber Port, 2*10GE Sfp Fiber Port

1* console port, 1*ETH port

Product featurs:

PON Features	SN/SN+Password/LOID/LOIDPassword/L01 D+L01 D Password authentication modes;DBA algorithm, and the particle is for 64Kbit/s; Standard OMCI management function;ONU batch software upgrade;PON port optical parameter detection; Auto registeration ONU bound with default profile
L2 Features	MAC	MAC Black Hole; Port MAC Limit;64K MAC (packet exchange chip cache 2MB );
	VLAN	4K VLAN entries;Port-based VLAN classification; Uplink VLAN Swap and VLAN Remark;
	Spanning Tree	STP/RSTP/MSTP,Loop detection
	Port	Support link aggregation;Port mirroring;
	Service Port	Auto configuration service-port by profile VLAN transparent/tag/stacking/aggregation
Security Features	User Security	Anti ARP spoofing;Anti ARP flooding; Port Isolation;MAC address binding to the port and MAC address filtering;
	Device Security	Support the control layer to prevent a variety of DOS attacks and virus attacks against the CPU;Hierarchical management and password protectionof users; SSHv2 Secure Shell;Login Security IP via Telnet
	Network Security	User based MAC and ARP traffic examination;Restrict ARP traffic of each user and force out user with abnormal ARP traffic;Dynamic ARP tablebased binding; IP+VLAN+MAC+Port binding;L2 to L7 ACL flow filtration mechanism on the 80 bytes of the head of user-defined packet;Port based broadcast/multicast suppression and auto shutdown risk port;DHCP Option82 and PPPoE+ upload user's physical location
Reliability	Loop Protection	Loopback detection;
	Link Protection	RSTP/MSTP(recover-time<ls，Link aggregation (recover-time <10ms)
	Device Protection	1+1 power hot backup;
Maintenance	Network Maintenance	Port real time,utilization and transmit/receive statistic;Powerful WEB GUI; Data Logging and RFC 3164 BSD syslog protocol;Ping
Maintenance	Device Maintenance	Console port, Telnet, SSH management; Out band management;SNMPvl/v2;RMON (Remote Monitoring)l,2,3,9 groups MIB; SNTP;Fan management
Service Features	QoS	Rate-limit to packet sending/receiving speed of port or self-defined flow and provide general flow monitor and two speed tri color monitor of self-defined flow;CAR(Committed Access Rate),Traffic Shaping and flow statistics;Packet mirror and redirection of interface and self defined flow; Supports priority marking of ports or custom flows and provides 802.lp, DSCP-priority Remark capability;Super queue scheduler based on port or self defined flow. Each port/flow supports 8 priority queues and scheduler of SP, WRR andSP+WRR;Congestion Avoidance Mechanism, including Tail-Drop and WRED;
	ACL	Standard and extended ACL;Time Range ACL;Flow classification and flow definition based on source/destination MAC addressVLAN, 802.lp, ToS,DiffServ, source/destination IP(IPv4/IPv6) address, TCP/UDP port numberprotocol type, etc;packet filtration of L2～L7 deep to 80 bytes of IP packet head
	1Pv4	DHCP Relay; DHCP Server; DHCP Snooping; Static Routing
	Multicast	IGMPvl/v2/v3 Snooping; IGMP Fast leave;IGMP Proxy;

Product specification

Switching Capacity	67Gbps
Service Port	4PON port, 4GE RJ45, 2GE SFP port, 210GE SFP+ port
Redundancy Design	Dual power supply,Support double AC input, double DC input and AC+DC input
Powe supply	AC: input 100～240V;50/60Hz
Power Consumption	50W
Dimensions	40mm×44mm×380mm
Weight(Full loaded)	≦5KG
Environmental Requirements	working temperature: -10℃～55℃ Storage temperature: -40C～70C;Relative humidity: 10°/o～ 90°/o, non-condensing
Max Transmission Distance	20KM
Max Transmission Distance	Max Splitting Ratio: 1:128
