Black 24 Ports Switch with POE Function

The most essential function of the switch is to expand the network. This product is a network switch with POE function. The S3500-24T4TP-EIP provides 24 Gigabit Ethernet ports, which can provide more connection ports for the subnet. This switch adopts a new generation of high-performance software and hardware platform, provides flexible and cost-effective all-gigabit access and uplink ports, supports Layer 3 routing protocols, is easy to manage and maintain, and has low cost, making it the best choice for most users .

Product overview:

S3500-24T4TP-EIP is managed PoE switch for security transmission and WIFI coverage, meet the WIFI AP, IP-camera, WIFI bridge, IP phones and other types of equipment PoE power supply needs. Products using a new generation of high-performance hardware and software platforms, providing flexible, cost-effective full Gigabit access and uplink ports, support for Layer 3 routing protocols, complete security mechanisms, improved ACL / QoS strategy and rich VLAN capabilities, it is easy to manage and maintain , meet the users' requirements for network equipment easy to manage, high security and low cost. It is suitable for network access, aggregation and core applications in campus, hotel and enterprise campus.

PoE (Power over Ethernet) refers to the power over Ethernet technology. It refers to the transmission of data signals to some IP-based terminals (such as IP phones, wireless access point APs,network cameras,etc.)and also provide DC power supply technology.These devices that accept DC power supply are called powered devices (PDs)

Features:

>1-8 port support 250Meters long-distance power supply (recommended cat5e or 6 network cable)

>Support a key VLAN, the port 1-24 isolated from each other, which can effectively inhibit network storms, improve network                 performance

>Supports IEEE 802.3af / at standard, automatically detects and identifies devices that comply with the IEEE 802.3af / at standard         and supply power to it

>Support Auto MDI/MDIX；

>Adopt store-and-forward exchange method

>intelligent power supply, the lowest power consumption, ensure  PD power needs

>With power circuit protection, protect the safety of PD

>No configuration characteristics of the power supply is automatically   supplied to the adaptive equipment;

>Fanless design, energy saving and environmental protection; no noise,  reduce the impact on the environment

>Small, exquisite design

>Support port without link power saving function

>All ports have wire-speed forwarding capability

>Plug and play ,easy to use

Specifications

Port:24 10/100/1000Mbps RJ45  port,4 gigabit SFP fiber port,1 Console port,
PoE:24 10/100/1000Mbps RJ45 port support PoE,Max 400W,Single port max 30W
LEDs:28 Link/Act LEDs,24 POE LEDs,1  Power LEDs
Performance:Forwarding mode: store and forward,Switch Volume (Full-duplex):56Gbps,Packet forwarding rate41.664Mpps,8K MAC address table
Input:100-240V/50-60Hz
Size:440*320*44mm

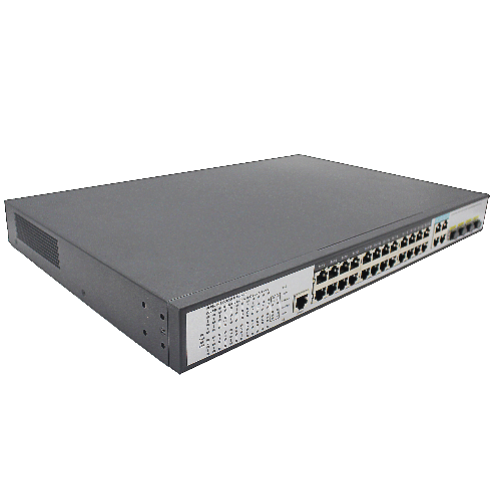

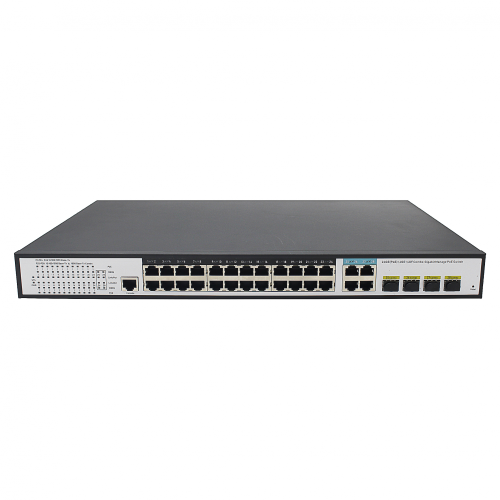

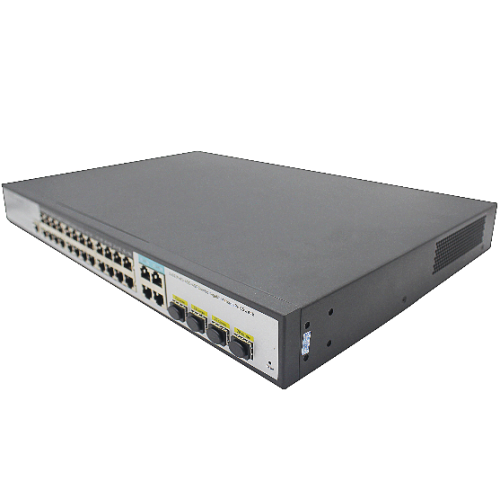

Products details:
