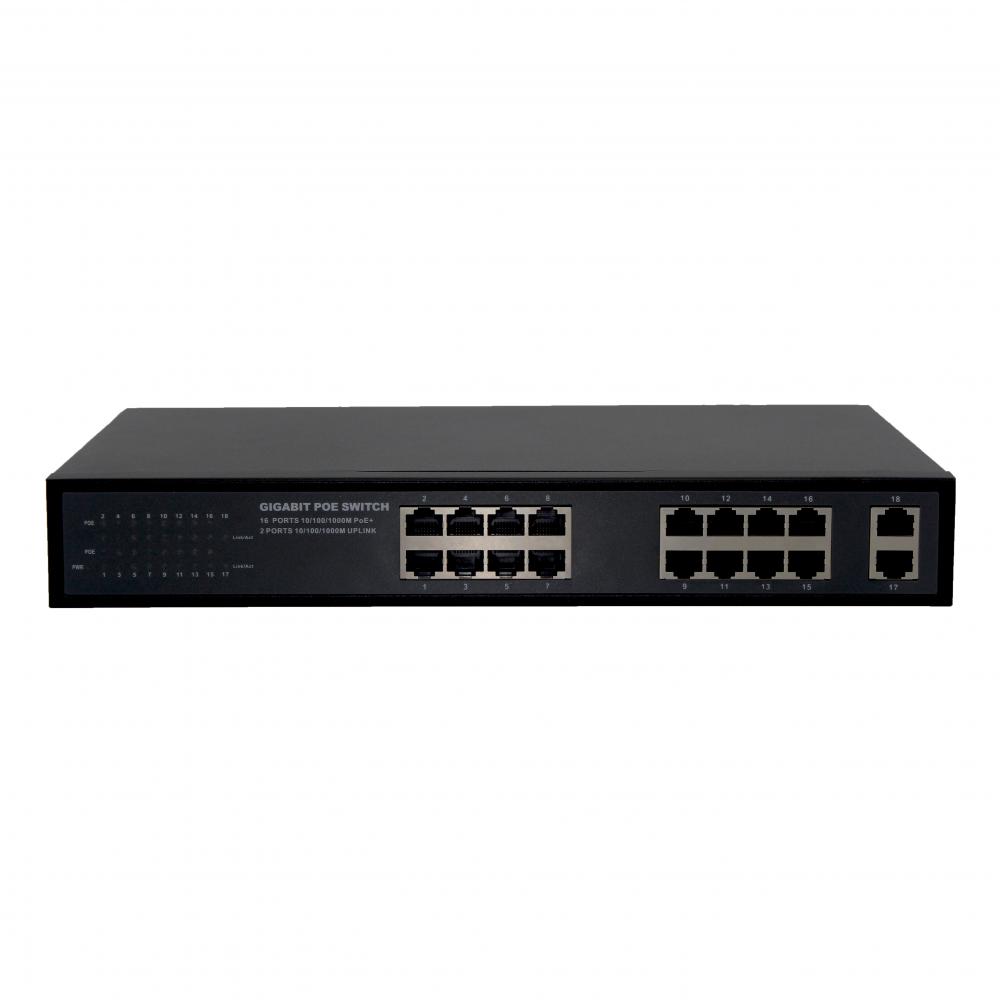

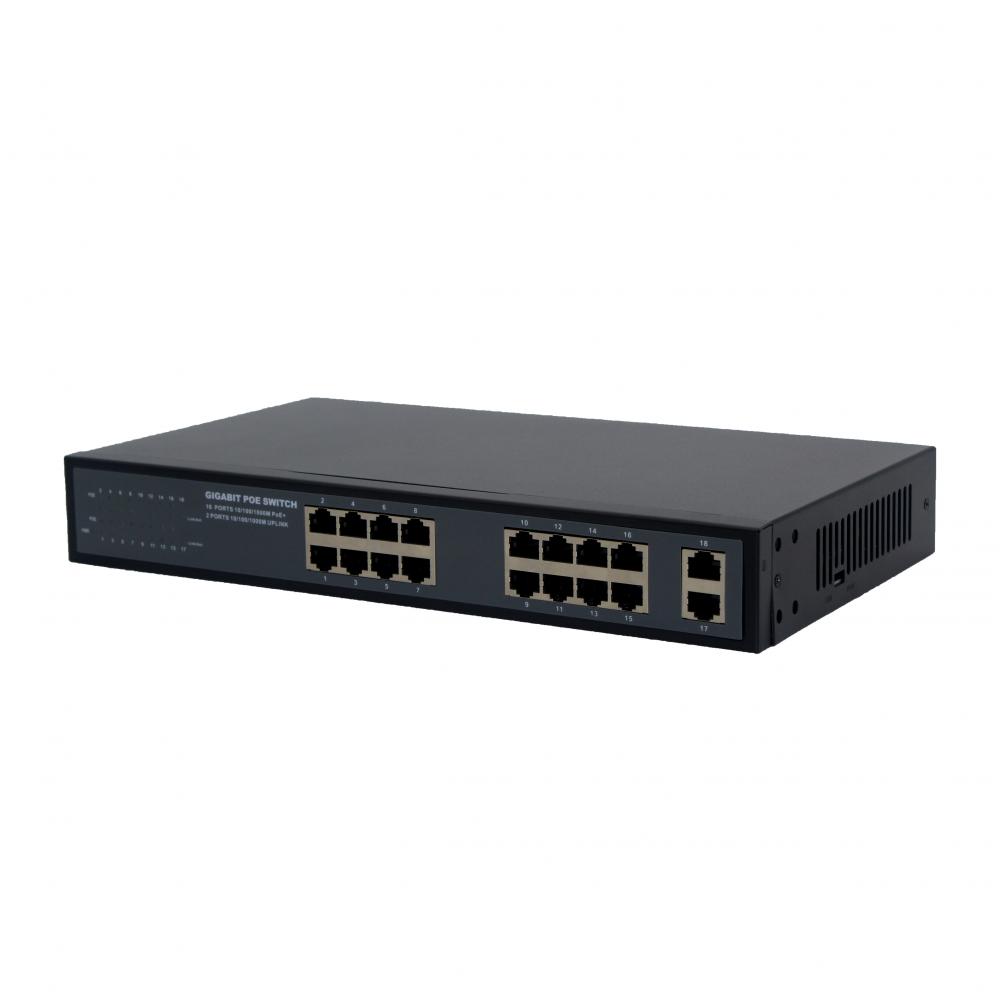

16Ports Ethernet POE Switch 2PON For FTTH

The 16 PoE provides Gigabit PoE links to Ethernet devices while also supplying Gigabit fiber uplink options fit for an enterprise network.Features of PoE power supply is simplify wiring and save labor costs.A single network cable transmits data and power at the same time. PoE eliminates the need for expensive power supplies and the time-consuming installation of power supplies, saving money and time, safe and convenient and it is convenient for remote management.

Product Introduction:

To fulfill the demand of High Power PoE for network applications with Gigabit transmission, GL-COM GL-816GP-2G PoE Gigabit Ethernet Switch is an ideal solution. Each 10/100/1000Mbps port of the it features IEEE 802.3af and IEEE 802.3at Power over Ethernet (PoE) that combine up to 260-watt PoE budget on the whole system. All RJ45 copper interfaces of it support 10/100/1000Mbps auto-negotiation for optimal speed detection through RJ45 Category 6, 5 or 5e cables. It also supports standard auto-MDI/MDI-X that can detect the type of connection to any Ethernet device without requiring special straight or crossover cables. 2 extra gigabit RJ45 for uplink.

Poe Switch, also named as Poe Switch Ethernet, is one of the Switch that have Poe Port that can do Poe Power Supply.

Typical applications please refer to following picture.

16 POE Switch Features:

1. Complies with IEEE 802.3, 10BASE-T, IEEE 802.3u 100BASE-TX, IEEE 802.3ab 1000BASE-T;
2. 16-Port 10/100/1000Mbps supports 52V DC power to PoE Powered Device;
3. 2-Port 10/100/1000Mbps RJ45 interface for uplink;
4. Complies with IEEE 802.3af/802.3at Power over Ethernet End-Span GL;
5. Up to 16 IEEE 802.3af devices powered;
6. Supports PoE Power up to 15.4 watts for each PoE port;
7. Up to 8 IEEE 802.3at devices powered;
8. Supports PoE Power up to 30 watts for each PoE port;
9. 260-watt PoE budget;
10. Auto detects powered device (PD);
11. Circuit protection prevents power interference between ports;
12. Remote power feeding up to 100m;
13. Hardware based 10/100/1000Mbps auto-negotiation and auto MDI/MDI-X;
14. Features Store-and-Forward mode with wire-speed filtering and forwarding rates;
15. Integrates address look-up engine, supporting 8K absolute MAC addresses.

Product Specification:

1. Voltage Range: AC 100-240V: AC 100-240V;
2. Power Consumption: The device <5W, POE power supply <260W;
3. Network Ports: 1～16 Ports, 10/100/1000Mbps Ethernet port, adaptive control; 2-Port, 10/100/1000Mbps RJ45 interface for uplink;
4. Transmission Distance: 1~18 Ethernet Port: 0~100m;
5. Transmission Media: 1~18 Ethernet Port: Cat5e/6 standard UTP cable;
6. POE Agreement: IEEE802.3 af/at standards;
7. PoE Power Supply Mode: End-span method;
8. PoE Power Supply Wattage: Each port≤30W, Whole device<260W;
9. Network Standard: IEEE802.3 10BASE-T, IEEE802.3u 100BASE-TX, IEEE802.3ab 1000BASE-T;
10. Swap Mode: Store-and- forward;
11. Switch Capacity: 36Gbps;
12. MAC Address List: 8K.
