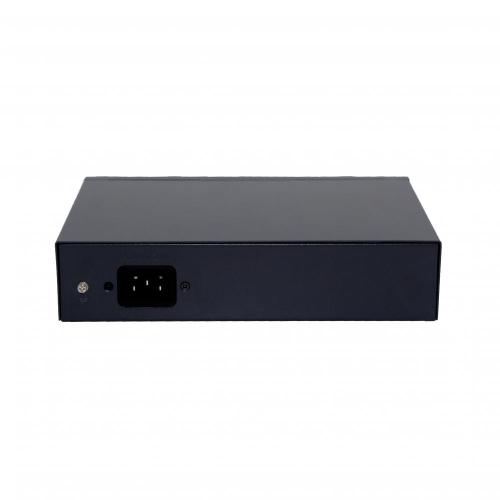

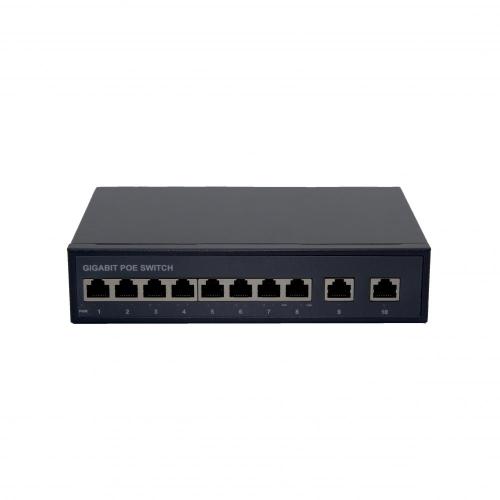

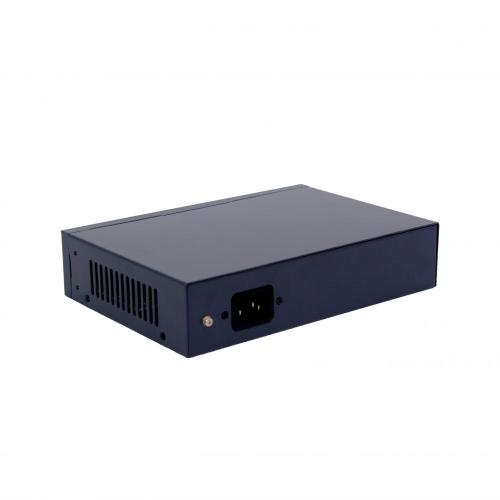

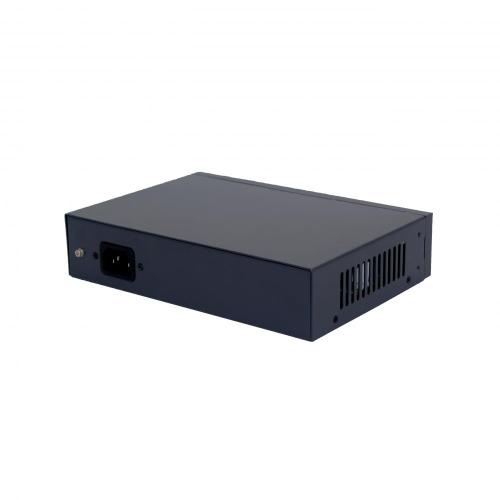

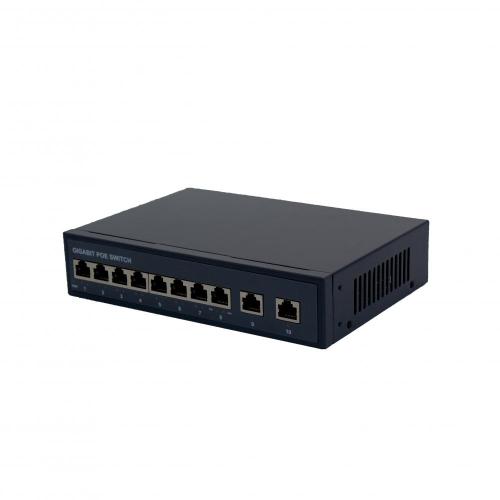

GL-808GP-2G

Introduction to POE Switch?

The POE switch port supports an output power of 15.4W or 30W, which complies with the IEEE802.3af/802.3at standard, and supplies power to standard POE terminal equipment through network cable power supply, eliminating the need for additional power wiring. In line with IEEE802.3at POE switch, the port output power can reach 30W, and the power available to the powered device is 25.4W. In layman's terms, a POE switch is a switch that supports network cable power supply. It can not only realize the data transmission function of ordinary switches, but also at the same time. Supply power to the network terminal.

Introduction

To fulfill the demand of High Power PoE for network applications with Gigabit transmission, GL-COM GL-808GP-2G PoE Gigabit Ethernet Switch is an ideal solution. Each 10/100/1000Mbps port of the GL-808GP-2G features IEEE 802.3af and IEEE 802.3at Power over Ethernet (PoE) that combine up to 120-watt PoE budget on the whole system. All RJ45 copper interfaces of the GL-808GP-2G support 10/100/1000Mbps auto-negotiation for optimal speed detection through RJ45 Category 6, 5 or 5e cables. It also supports standard auto-MDI/MDI-X that can detect the type of connection to any Ethernet device without requiring special straight or crossover cables. 2 extra gigabit RJ45 for uplink.

Typical applications please refer to following picture

Features

1. Complies with IEEE 802.3, 10BASE-T, IEEE 802.3u 100BASE-TX, IEEE 802.3ab 1000BASE-T

2. 8-Port 10/100/1000Mbps supports 52V DC power to PoE Powered Device

3. 2-Port 10/100/1000Mbps RJ45 interface for uplink

4. Complies with IEEE 802.3af/802.3at Power over Ethernet End-Span GL

5. Up to 8 IEEE 802.3af devices powered

6. Supports PoE Power up to 15.4 watts for each PoE port

7. Up to 4 IEEE 802.3at devices powered

8. Supports PoE Power up to 30 watts for each PoE port

9. 120-watt PoE budget

10. Auto detects powered device (PD)

11. Circuit protection prevents power interference between ports

12. Remote power feeding up to 100m

13. Hardware based 10/100/1000Mbps auto-negotiation and auto MDI/MDI-X

14. Features Store-and-Forward mode with wire-speed filtering and forwarding rates

15. IEEE 802.3x flow control for full duplex operation and back pressure for half duplex operation

16. Integrates address look-up engine, supporting 8K absolute MAC addresses

17. 2M packet buffer

18. 10K Jumbo frame supports at 1000Mbps duplex mode

19. Automatic address learning and address aging

20. Made of metal, desktop size and wall-mount design

Specification

1. Voltage Range: AC 100-240V

2. Power Consumption: The device <5W, POE power supply <120W

3. Network Ports: 1～8 Ports: 10/100/1000Mbps Ethernet port, adaptive control; 2-Port 10/100/1000Mbps RJ45 interface for uplink

4. Transmission Distance: 1~10 Ethernet Port, 0~100m

5. Transmission Media: 1~10 Ethernet Port, Cat5e/6 standard UTP cable

6. POE Agreement: IEEE802.3 af/at standards

7. PoE Power Supply Mode: End-span method

8. PoE Power Supply Wattage: Each port≤30W, Whole device<120W

9. Network Standard: IEEE802.3 10BASE-T, IEEE802.3u 100BASE-TX, IEEE802.3ab 1000BASE-T

10. Swap Mode: Store-and- forward

11. Switch Capacity: 20Gbps

12. MAC Address List: 8K

13. Power Indicator Light: One power light (green)

14. PoE Indicator: 1~8 PoE indicator light(yellow)

15. Network Port LED: 1~10 port (green light on RJ45 jack) Keeps on when normally connected, Blinking when transceiver data
