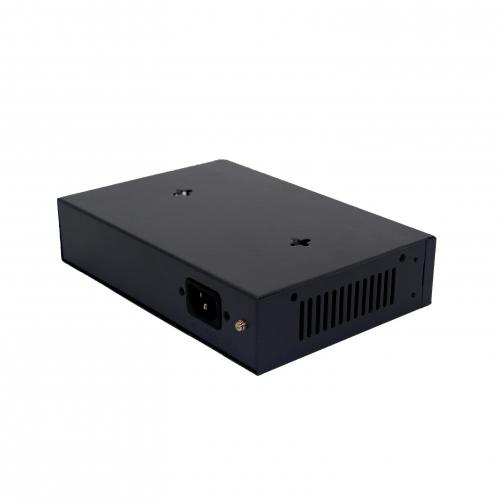

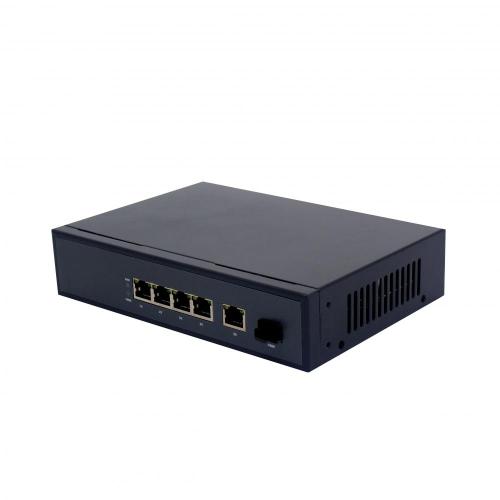

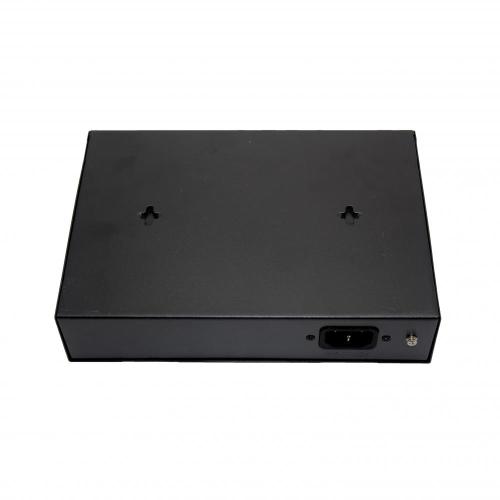

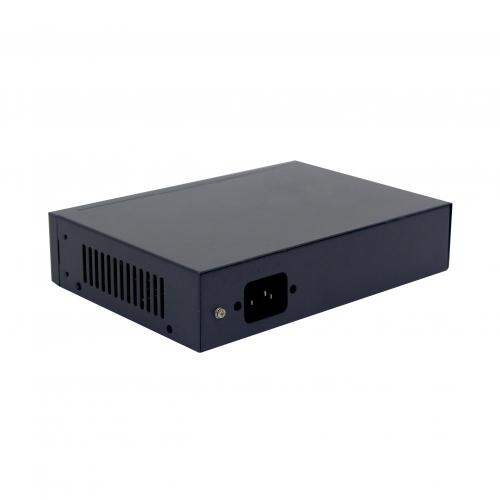

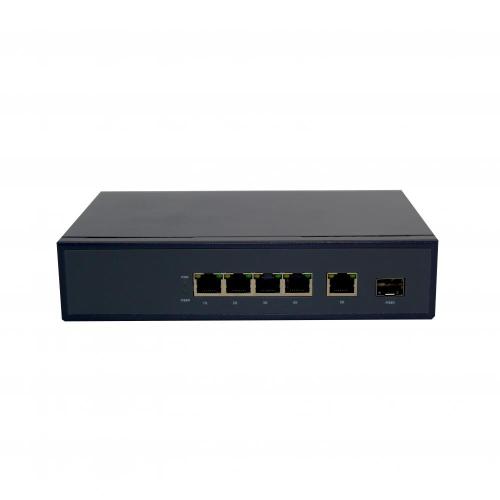

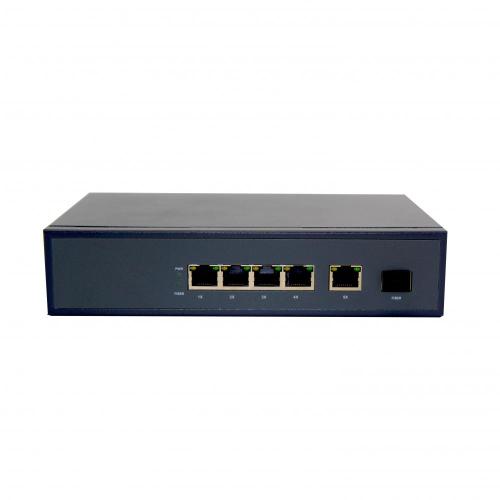

GL-804GP-1G1SFP

What is POE Switch?

POE (Power Over Ethernet) refers to the use of IP-based terminals (such as IP phones, wireless LAN access points AP, network cameras) without any changes to the existing Ethernet Cat.5 cabling infrastructure. Etc.) The technology that can provide DC power to such devices while transmitting data signals is a switch that supports Power over Ethernet.

Poe Switch, also named as Poe Switch Ethernet, is one of the Switch that have Poe Port that can do Poe Power Supply.

Typical applications please refer to following picture

Introduction

To fulfill the demand of High Power PoE for network applications with Gigabit transmission, GL-COM GL-804GP-1G1SFP PoE Gigabit Ethernet Switch is an ideal solution. Each 10/100/1000Mbps port of the GL-804GP-1G1SFP features IEEE 802.3af and IEEE 802.3at Power over Ethernet (PoE) that combine up to 65-watt PoE budget on the whole system, It is designed specifically to satisfy the growing demand of higher power consuming network PD (powered devices) such as PTZ (Pan, Tilt & Zoom) / speed dome network cameras, multi-channel (802.11a/b/g/n) wireless LAN access points and other network devices by doubling PoE power, more than the current conventional 802.3af PoE.

All RJ45 copper interfaces of the GL-804GP-1G1SFP support 10/100/1000Mbps auto-negotiation for optimal speed detection through RJ45 Category 6, 5 or 5e cables. It also supports standard auto-MDI/MDI-X that can detect the type of connection to any Ethernet device without requiring special straight or crossover cables. 1extra 1.25Gbps SC interface can be used for uplink.

Features

1. Complies with IEEE 802.3, 10BASE-T, IEEE 802.3u 100BASE-TX, IEEE 802.3ab 1000BASE-T

2. 4-Port 10/100/1000Mbps supports 52V DC power to PoE Powered Device

3. 1 RJ45 10/100/1000Mbps for uplink

4. 1 1.25Gbps SFP interface for uplink

5. Complies with IEEE 802.3af/802.3at Power over Ethernet End-Span GL

6. Up to 4 IEEE 802.3af devices powered

7. Supports PoE Power up to 15.4 watts for each PoE port

8. Up to 4 IEEE 802.3at devices powered

9. Supports PoE Power up to 30 watts for each PoE port

Specification

1. Power Supply Mode: Power adapter

2. Voltage Range: AC 100～240V

3. Power Consumption: The device <5W, POE power supply <65W

4. Network Ports: 1～4 Ports, 10/100/1000Mbps Ethernet port, adaptive control; Uplink 1 RJ45m, 10/100/1000Mbps; Uplink 1 SFP, 1.25Gbps

5. Transmission Distance: 1~4 Ethernet Port, 0~100m; Mandatory 10 Mbps reach up to 250m; 1 SFP: According to different optical module

6. Transmission Media: 1~5 Ethernet Port: Cat5e/6 standard UTP cable; Fiber, LC interface optical fiber

7. POE Agreement: IEEE802.3 af/at standards

8. PoE Power Supply Mode: End-span method

9. PoE Power Supply Wattage: Each port≤30W, Whole device<65W

Application

Packaging Detail
