4GE WIFI CATV optic fiber ONU

GL-E8007U-RWF supports one PON port, 4 RJ45 ports, supports CATV and WIFI functions, HGU ONU product mode, supports network bridge and NAT mode. This ONU has more CATV and USB functions than the traditional one. The so-called CATV refers to a cable television that can achieve two-way multi-channel communication using a single coaxial cable. It can provide broadcast services, including television, teletext, etc. The CATV network adopts an analog transmission method, which is an analog network. CATV can transmit multiple TV programs at the same time, and has the function of two-way communication.

Epon Rf Onu Product interface:

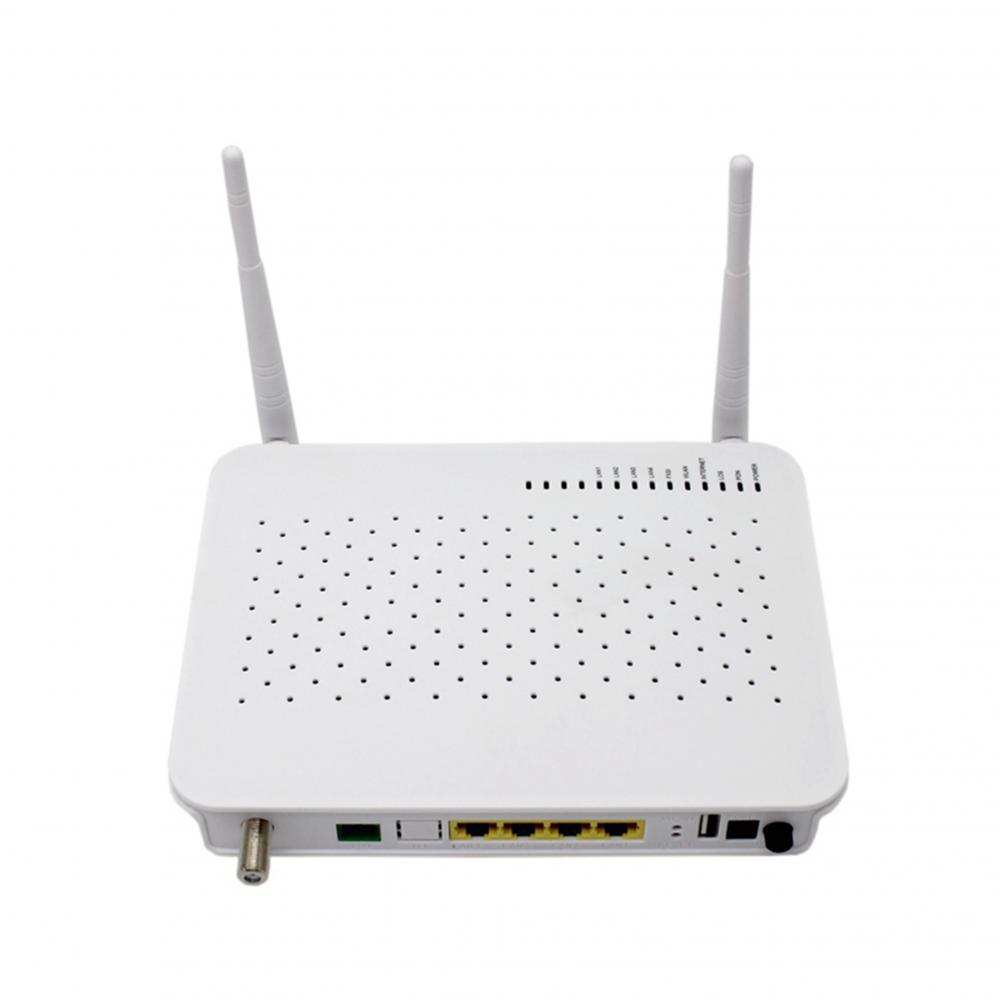

Interface: hardware interface, facing the interface direction from left to right, in order of interface: Catv Port Onu  interface, pon interface, net port 4-net port 1, wireless switch, reset key, USB interface, dc 12-volt interface, power switch.

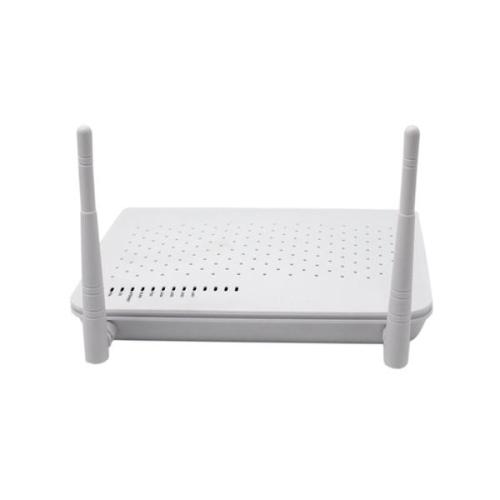

Indicator light: LED definition from left to right: power supply, fiber G, optical signal, broadband, phone, port 1-4, USB.

Business performance:

>Two-layer bidirectional line-speed forwarding of data services, support 2K MAC address tables in bridge mode;

>3/4 layer hardware NAT/NAPT;

>Support 802.3, 802.1q Tag/Untag Ethernet frames；

>MAC support ACL rules, IP, TCP/UDP, ICMP and IGMP, IPV6 format；

>Each port has eight priority queues, supporting 32 Shared tables with a granularity of 8kpbs；

>MIB counter support, mib-ii RFC 1213, ethemet-like MIB RFC 3635, interface group MIB RFC 2863, RMON RFC 2819, bridge        MIB RFC 1493, bridge MIB extension RFC26741、ITU G.984.4 OMCI ME MIBs；

>Supports 8 enhanced filter database stack vlans and port isolation for use；

>Port mirroring with multicast monitoring source ports is supported to monitor target ports；

>Support port IEEE802.3ad link aggregation, up to 4G bandwidth；

Wifi Onu feature:

>speed：802.11b：compatibility 11,5.5,2,1 Mbps；

>802.11g：compatibility 54,48,36,24,18,12,9,6 Mbps>802.11n compatibility 130,117,104,78,65,58,52,39,26,19.5,13,6.5Mbps；

>channel：1~11 (USA, Canada) ; 1~13 (Europe) ; 1~14 (Japan)；

>frequency domai：2.4GHz-2.4835GHz；

>transmission power：11b：17dBm  +/- 1.5dBm；>11g：14dBm  +/- 1.5dBm；>11n：11dBm  +/- 1.5dBm；

Catv Port feature:

> The wavelength of light received by is nm 1210 ~ 1610;

> The optical power received by is dbm-2 ~ -18;

> optical connector -5 ~ -15 FC/APC or SC/APC;
