POTS FXS WIFI 4GE EPON ONU with USB

$28.00

10-99 Piece/Pieces
$27.00

100-499 Piece/Pieces
$25.00

≥500 Piece/Pieces

Transportation:: Ocean, Land, Air

Port:: SHENZHEN, SHEKOU, YANTIAN

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Productivity:	50000
Supply Ability:	50000
Payment Type:	T/T
Incoterm:	FOB,EXW
Certificate:	CE,ROHS,FCC
HS Code:	8517622990
Transportation:	Ocean,Land,Air
Port:	SHENZHEN,SHEKOU,YANTIAN

Product Description

Epon Voip Onu Product interface:

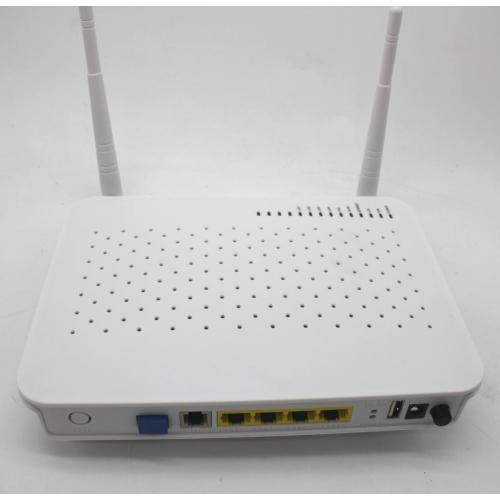

Interface: hardware interface, facing the interface direction from left to right, in order of interface: pon interface,Voip/fxs Port, net port 4-net port 1, wireless switch, reset key, USB interface, dc 12-volt interface, power switch.Indicator light: LED definition from left to right: power supply, fiber G, optical signal, broadband, Phone Port, port 1-4, USB.

4Lans Port Onu Product feature:

1. HGU ONU product configuration, support bridge and NAT mode;2. BOB product process;3.802.11 b/g/n wireless access;4.Wireless use of 2*3dBi external dual antenna;5. USB interface supports configuration saving and recovery;6.12v / 1.5a external power supply.7.Provide a Voip/fxs Port for ordinary telephone> 600MHz CPU processor,I-Cache: 64KB, D-Cache: 32KB；

Business performance

>Two-layer bidirectional line-speed forwarding of data services, support 2K MAC address tables in bridge mode;>3/4 layer hardware NAT/NAPT;

>Each port has eight priority queues, supporting 32 Shared tables with a granularity of 8kpbs；>Support inport-based flow control, for exceeding the flow, you can choose to drop the packet or Pause frame back pressure,Support QoS function;

Voip Function

VOIP feature:

> single channel selection, 105V most battery design

>VOIP processor and SOCS use the fifth generation line interface>The voice path SDK and vp-api-ii software enable FXS functionality> energy-saving switch control structure: up to 65vrms open circuit, up to 5REN load> 2 layer PCB design, complete bandwidth BOESCHT function> analog telephone adapter (ATAs)

Epon Wifi Onu Specifications:

description	symbol	test condition	Min	typ	max	unit
Ambient temperature, offset	Ta		-40		+85	℃
Digital and analog power supply voltages	DVDD,AVDD		3.135	3.3	3.465	VDC
Ultimate condition: battery voltage (active state)			-105VDC TO -12VDC			VDC
Line current	ILA		18	25	45	mA
Ringing voltage	Vring	5REN		50	65	Vrms
Second-line return loss	RL	200to3400HZ		30		dB
Longitudinal balance		1KHZ		58		dB
Device power consumption (continuous)	Pd(max)	85度		1.5		W
Connect to ambient thermal resistance				29		℃/W

Power consumption(Buck-Boost)	symbol	Test condition	TYP	Unit
Shutdown	PD	Switcher off	8	mW
disconnect			37
Low power Idle mode		On-hook	52
Idle		On-hook	98
active		Off-hook,300Ώ,ILA=25mA	324
ringing		50Vrms,1REN	462
