NEW TEL PHONE 4GE WIFI 1POTS ONU

NEW TEL PHONE 4GE WIFI 1POTS ONU supports POTS, POTS is analog telephone service, a kind of telecommunications tool similar to a narrow band, used to transmit voice calls. This product also supports 4 Ethernet ports, a PON port and WIFI, and the terminal equipment is designed to meet the needs of fixed network operators for FTTH and triple play services. These boxes are based on mature chipset (Realtek) technology, have a high cost performance, and have IEEE802.11b/g/n/ac WiFi, 2/3 layer and high-quality VoIP technology.

4lans Ports Onu Product Interface:

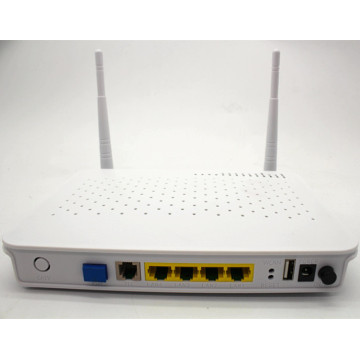

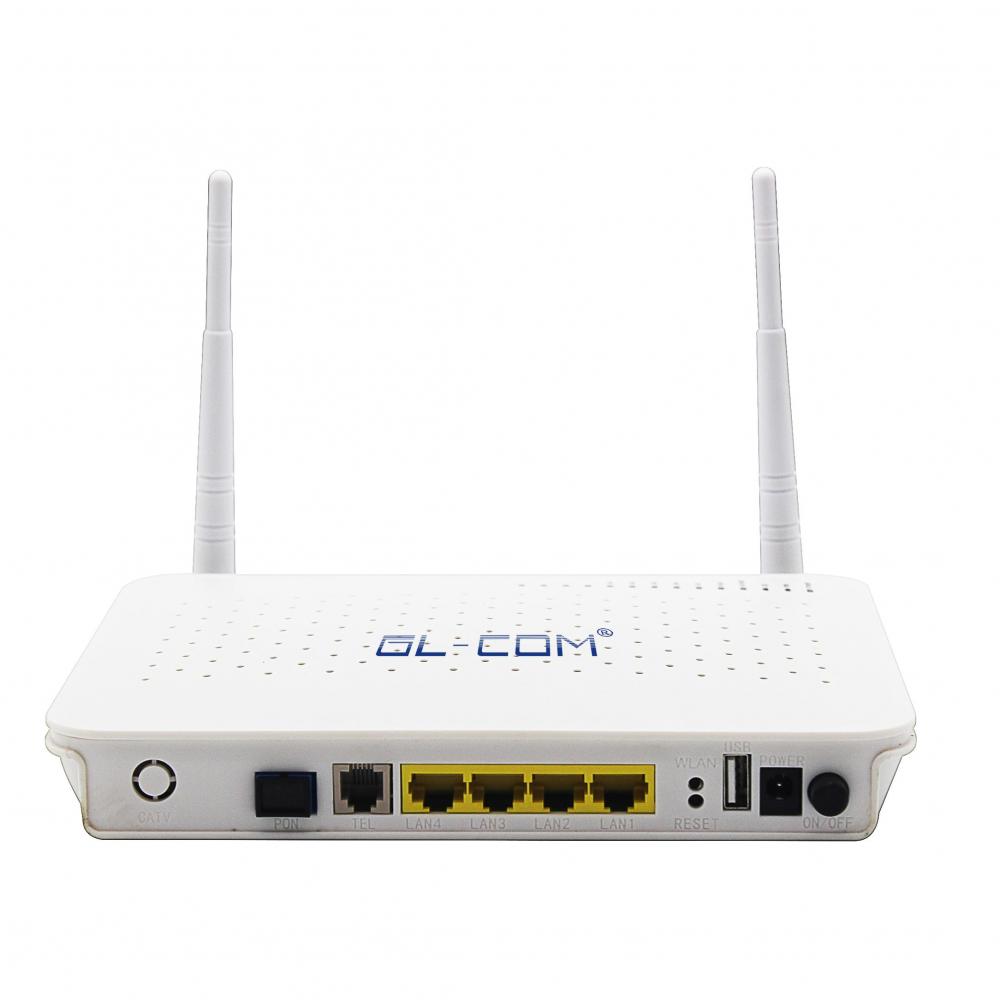

Interface:hardware interface,facing the interface direction from left to right,in order of interface:pon interface,Voip/fxs Port,net port 4-net port 1,wireless switch,reset key, USB interface,dc 12-volt interface,power switch.Indicator light:LED definition from left to right:power supply,fiber G,optical signal,broadband,Phone Port,port 1-4,USB.

Epon Wifi Onu Product feature:

1. HGU ONU product configuration, support bridge and NAT mode;

2. BOB product process;

3.802.11 b/g/n wireless access;

4.Wireless use of 2*3dBi external dual antenna;

5.USB interface supports configuration saving and recovery;

6.12v/1.5a external power supply.

7.Provide a Voip/fxs Port for ordinary telephone • Handling characteristics:> 600MHz CPU processor,I-Cache: 64KB, D-Cache:          32KB；

Business performance:

>Two-layer bidirectional line-speed forwarding of data services, support 2K MAC address tables in bridge mode;

>3/4 layer hardware NAT/NAPT;

>MAC support ACL rules, IP, TCP/UDP, ICMP and IGMP, IPV6 format；

>Each port has eight priority queues, supporting 32 Shared tables with a granularity of 8kpbs；

Epon Voip Onu feature：

> single channel selection, 105V most battery design

> options include PCM/SPI or ZSI

> compact structure, 84-pin 7*7mm QFN components

>VOIP processor and SOCS use the fifth generation line interface

Wifi Onu feature:

>speed：802.11b:compatibility 11,5.5,2,1 Mbps;

>802.11g:compatibility 54,48,36,24,18,12,9,6 Mbps;

>802.11n：compatibility 130,117,104,78,65,58,52,39,26,19.5,13,6.5Mbps;

EPON ONU details:
