EPON 1GE 1FE 1POTS ONU For FTTH

EPON POTS ONU Product introduction:

GL-E8011U-H is EPON terminal device,work with OLT,it can provide Internet,VOIP,V..It is based on mature and stable cost-effective EPON technology,providing 1 PON port,2 10/1000M,1 VOIP port.Adopt single fiber WDN technology(downlink 1490nm,uplink 1310nm),require only one fiber to connect with OLT,the longest transmitting distance can be 40KM,support power down report function,support local WEB management function.

EPON VOIP ONU Product interface:

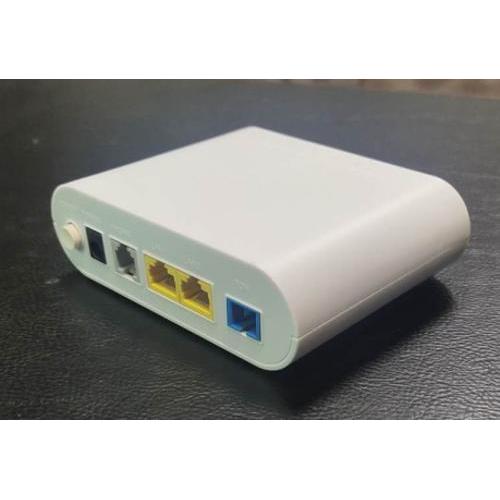

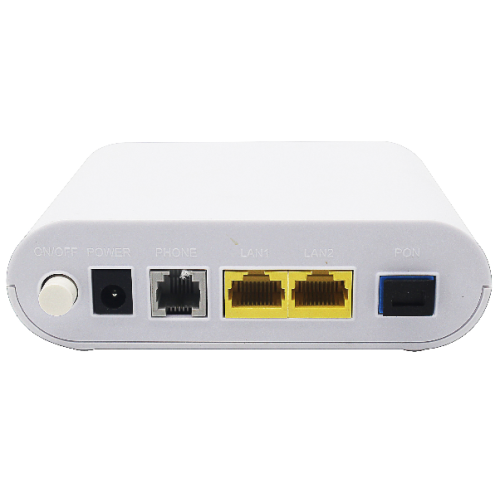

Ports:hardware connection,from left to right as per connection direction,connection sequence:RJ11 Telephone Port,internet port 2 to 1,reset button,USB port,DC12V port,power switch.Indicator light:LED definition from left to right:power,fiber G,fiber signal,broadband,telephone,internet port 1 to 2.

Port feature

1)Hgu ONU product modality,support bridge and NAT mode. 2)BOB product process 3)802.11b/g/n wireless access 4)Provide Voip/fxs Port,support connecting normal telephone 6)12V/1.5A external power

Product key features:

1)Processor features:support 800MHz frequency ARM processor;support 32KB I-Cache and D-Cache

2)EPON VOIP ONU :support 1 port voice processing1;support all kinds of warning tone generation;support Voip Function;support Fax/Modem VBD function;support echo restrain,voice activity checking,comfortable background  noise,voice frame compensation function;Support VoIP statistics,fault diagnosis function;Each POTS can individually configure VoIP CODEC mode;Support DTMF check,generate,deliver,recover function;Support FSK generate,has calling number generate displaying function;Support twice dialing,support RFC2833 in-band way;Support tripartite conference function

1) Port:Power:external power 12V/1.5A;Internet access:2pcs.support 10/100/1000M self-adaption;Optical port:one SC/PC port;Telephone Port:one RJ11 POTS Port;

2)hardware key equipment specification;CPU:MAC built-in 800Mhz ARM processor

3) Product size:Product size:163X125X50 mm

4) Reliability and environmental suitability

storage temperature humidity:-10°C-55°C 5%-95% non-condensing  Working temperature humidity:-10°C-50°C  5%-95% non-condensing.
