Where is the ONT in the network?

The ONT is usually located in the user's home,and connects to various Internet devices downwards,and connects to the network through optical fibers upwards.

Product Introduction:

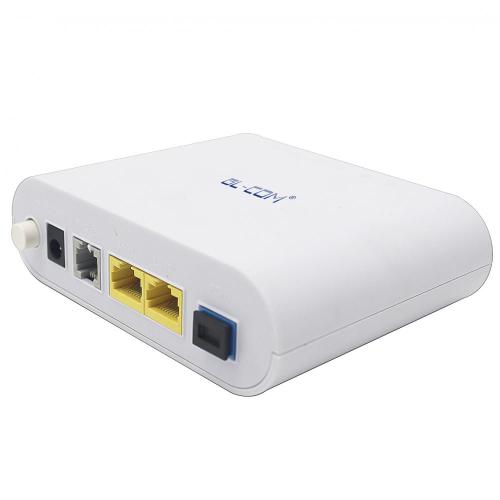

It is EPON terminal device,work with OLT,it can provide Internet,VOIP,V..It is based on mature and stable cost-effective EPON technology,providing 1 PON port,2 10/1000M,1 VOIP port.Adopt single fiber WDN technology(downlink 1490nm,uplink 1310nm),require only one fiber to connect with OLT,the longest transmitting distance can be 40KM,support power down report function,support local WEB management function.

Product Interface:

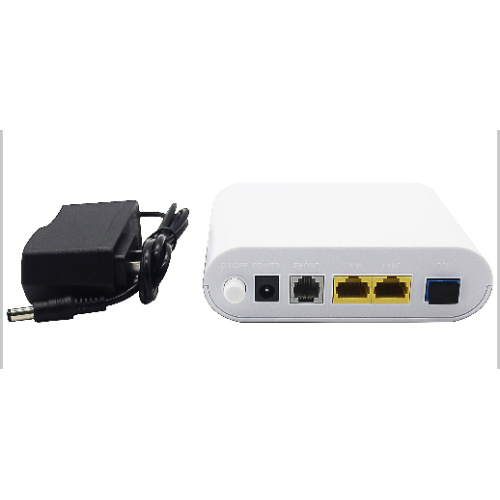

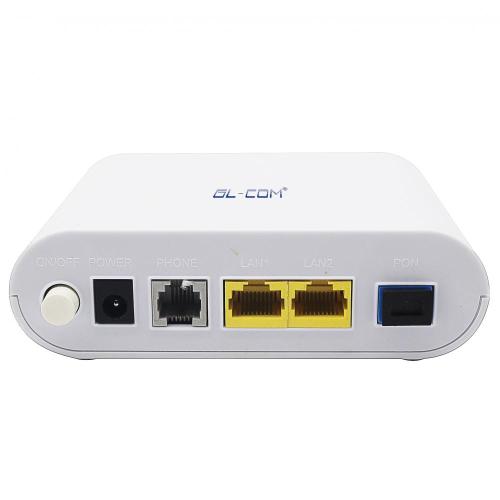

Ports:hardware connection,from left to right as per connection direction,connection sequence:RJ11 Telephone Port;Internet port 2 to 1;Reset button;USB port;DC12V port;Power switch

Port Features:

• HGU ONU product modality,support bridge and NAT mode.
• BOB product process
• Provide Voip/fxs Port,support connecting normal telephone
• 12V/1.5A external power

Product Key Features:

1)Processor features:support 800MHz frequency ARM processor;support 32KB I-Cache and D-Cache2)VOIP

Product Specification:

1) Port:Power:external power 12V/1.5A;Internet access:2pcs.support 10/100/1000M self-adaption;Optical port:one SC/PC port;Telephone Port:one RJ11 Telephone Port;2)hardware key equipment specification;CPU:MAC built-in 800Mhz ARM processor

3) Product size:Product size:163X125X50 mm

4) Reliability and environmental suitability

storage temperature humidity:-10°C-55°C 5%-95% non-condensing  Working temperature humidity:-10°C-50°C  5%-95% non-condensing.
