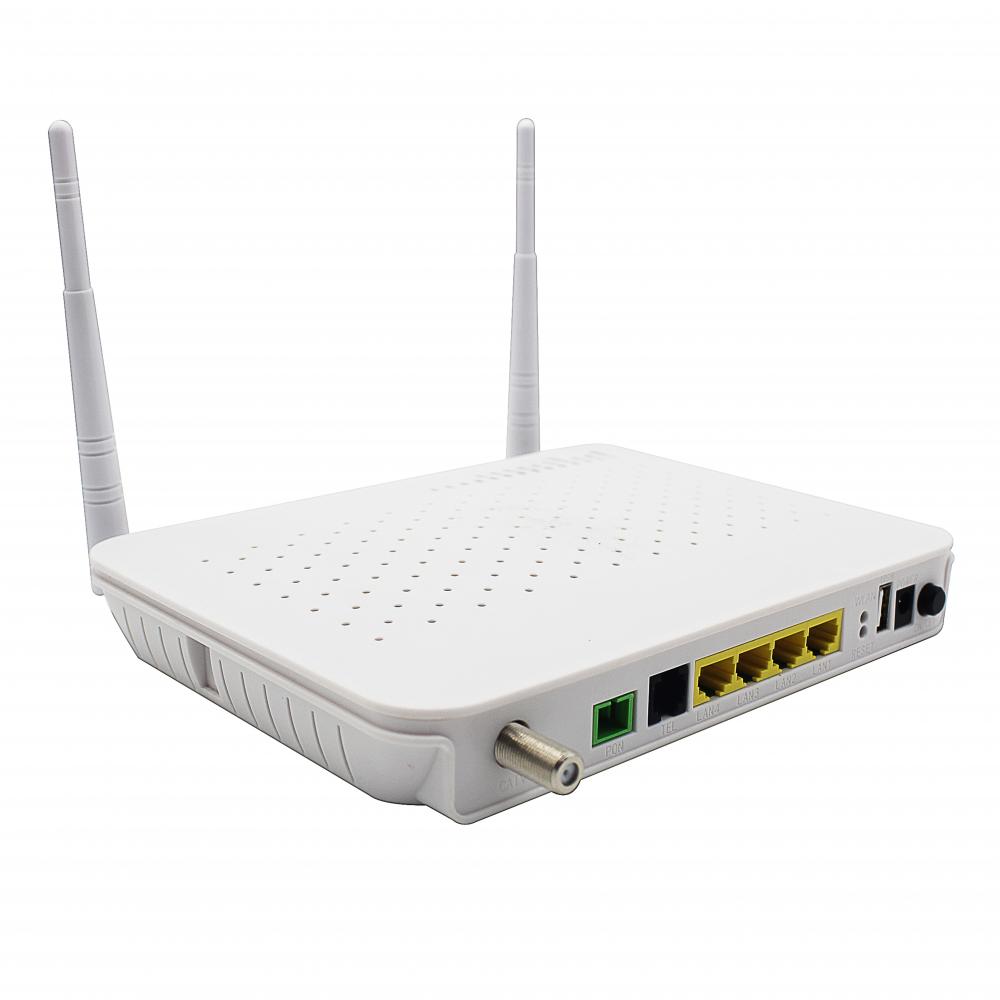

Triple Play EPON 4GE WIFI POTS CATV ONU

$28.00

10-99 Piece/Pieces
$27.00

100-499 Piece/Pieces
$25.00

≥500 Piece/Pieces

Transportation:: Ocean, Land, Air

Port:: SHENZHEN, SHEKOU, YANTIAN

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Productivity:	50000
Supply Ability:	50000
Payment Type:	T/T
Incoterm:	FOB,EXW
Certificate:	CE,ROHS,FCC
HS Code:	8517622990
Transportation:	Ocean,Land,Air
Port:	SHENZHEN,SHEKOU,YANTIAN

Product Description

Voip/fxs Port 4GE Epon Onu with Wifi Port and USB

What is FXS/Pots Port ONU?

FXS is POTS,also we call it VOIP function,or call it telephone function.It can transmission voice from this side to another side.this onu also have wireless wifi and USB function.it is more easily for customer to use different kind of functions,they can choose one from this 3 functions when they have need,also they can use all this 3 functions together.

Product interface:

Interface: hardware interface, facing the interface direction from left to right,in order of interface:pon interface,VoIip/fxs Port,net port 4-net port 1,wireless switch,reset key,USB interface,dc 12-volt interface,power switch.Indicator light: LED definition from left to right: power supply,fiber G, optical signal,broadband,Phone Port,port 1-4,USB..

Epon Voip Onu

Triple Play Onu Product feature:

1. support bridge and NAT mode;2. BOB product process;3.802.11 b/g/n wireless access;4.Wireless use of 2*3dBi external dual antenna;5. USB interface supports configuration saving and recovery;6.12v / 1.5a external power supply.7.Provide a voip port for ordinary Telephone Port；> 600MHz CPU processor,I-Cache: 64KB, D-Cache: 32KB；

VOIP feature:

> single channel selection, 105V most battery design > compact structure, 84-pin 7*7mm QFN components>VOIP processor and SOCS use the fifth generation line interface>The voice path SDK and vp-api-ii software enable FXS functionality> energy-saving switch control structure: up to 65vrms open circuit, up to 5REN load> 2 layer PCB design, complete bandwidth BOESCHT function> analog telephone adapter (ATAs)

Specifications:

description	symbol	test condition	Min	typ	max	unit
Ambient temperature, offset	Ta		-40		+85	℃
Digital and analog power supply voltages	DVDD,AVDD		3.135	3.3	3.465	VDC
Ultimate condition: battery voltage (active state)			-105VDC TO -12VDC			VDC
Line current	ILA		18	25	45	mA
Ringing voltage	Vring	5REN		50	65	Vrms
Second-line return loss	RL	200to3400HZ		30		dB
Longitudinal balance		1KHZ		58		dB
Device power consumption (continuous)	Pd(max)	85度		1.5		W
Connect to ambient thermal resistance				29		℃/W

Power consumption(Buck-Boost)	symbol	Test condition	TYP	Unit
Shutdown	PD	Switcher off	8	mW
disconnect			37
Low power Idle mode		On-hook	52
Idle		On-hook	98
active		Off-hook,300Ώ,ILA=25mA	324
ringing		50Vrms,1REN	462

WIFI feature
