New Arrival FTTH EPON 1GE BOSA ONU

$5.90

50-99 Piece/Pieces
$5.70

100-999 Piece/Pieces
$5.50

1000-1999 Piece/Pieces
$5.10

≥2000 Piece/Pieces

Min. Order:: 1 Piece/Pieces

Min. Order:: 1 Piece/Pieces

Transportation:: Ocean, Land, Air, Express, others

Port:: Shenzhen, Shekou, Yantian

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Supply Ability:	50000/Month
Payment Type:	T/T,Paypal,Others
Incoterm:	FOB,EXW
Transportation:	Ocean,Land,Air,Express,others
Port:	Shenzhen,Shekou,Yantian

Product Description

The benefits of E-commerce platforms for Product Promotion?

In recent years, e-tailers with different e-commerce genes have been developing their own brands according to their own characteristics. The study of representative companies such as Netease, Xiaomi and Taobao, concluded that companies with the advantage of flow side can develop their own brands first by using their own brand effect and seeking breakthroughs from the product design side; companies with the advantage of manufacturing side enter the market by creating explosive products and then use the product dividend to expand the category; and comprehensive e-commerce platforms have to weigh more interests while forming brand awareness.

black shell ONU

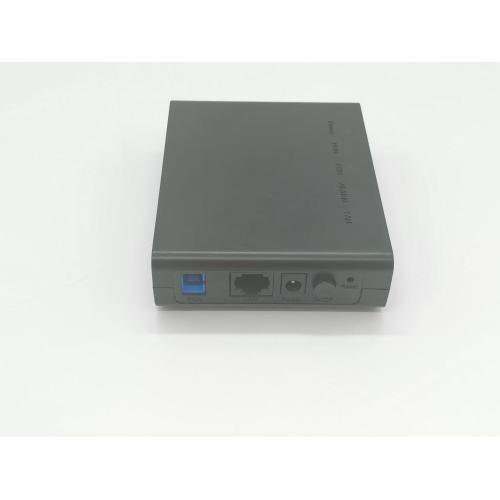

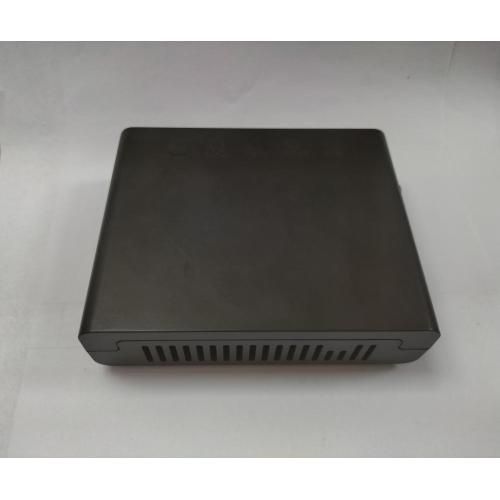

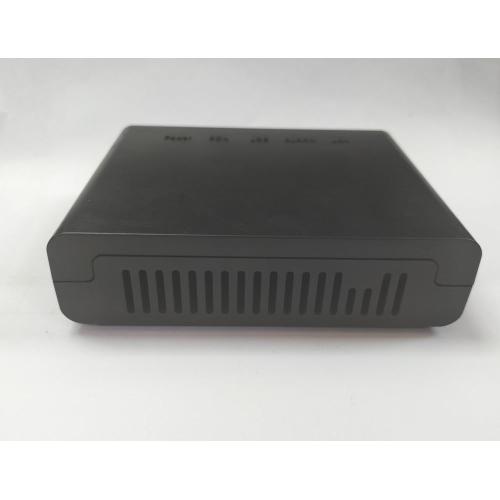

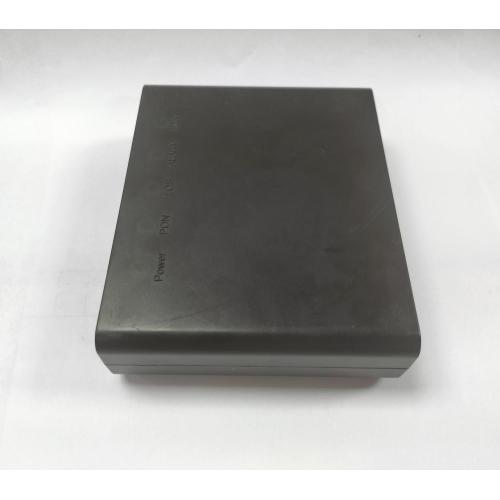

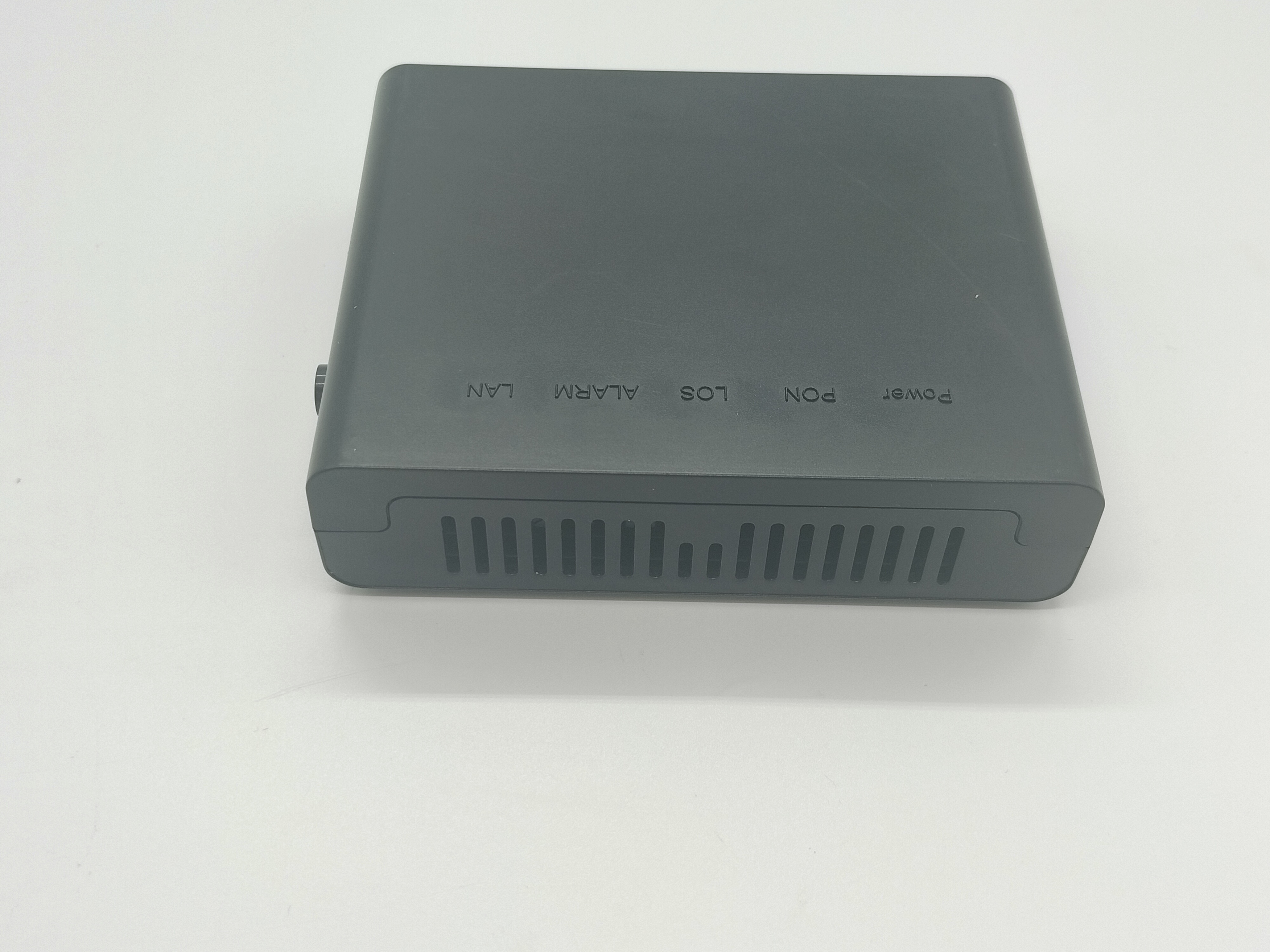

The GL-E8010U-FZ ONU (Optical Network Unit) is engineered to meet and exceed the standards set by IEEE 802.3-2005 and the China Telecom EPON device technical specification (V2.1), ensuring it meets the high standards required for telecommunication-level operation, management, and maintenance. Designed to deliver high-speed data services to customers, this device is equipped with a PON uplink port that facilitates a direct connection to office end apparatus via optical fiber, offering a robust solution for efficient and reliable data transmission.

EPON 1GE ONU

Product Features:

1. Conform to IEEE802.3ah standard

2. Support Ethernet service layer 2 switching and wire-speed forwarding of uplink and downlink services

3. Support frame filtering and suppression

4. Support standard 802.1Q Vlan function, support VLAN conversion

5. Support 4094 VLANs (802.1Q)

6. Support Dynamic Bandwidth Allocation (DBA) function

7. Support QoS, including traffic flow classification, priority marking, queue and dispatch, traffic shaping and trafficcontrol, etc.

8. Single ONU supports up to 1 LLID. Support IGMP Snooping. Support router

9. Support Ethernet port rate limit loop detection. Support power failure alarm

10. Support lightning protection for power supply and lightning protection for service port.

With bridge and router

Technical Parameter:

Module	E8010U-FZ
User interface	1 10/100/1000M RJ45 port.
PON	Transmission speed: upstream 1.25Gbps, downstream 1.25Gbps Network coverage radius: 20KM Optical receive sensitivity: -25dBm Luminous power:＞0dBm Security: ONU authentication mechanism
VLAN	Port-based VLAN IEEE 802.1Q VLAN
QOS	Backpressure flow control (half-duplex) IEEE 802.3x flow control (full-duplex) Prevent Head of Line IEEE 802.1p, CoS WR, SP and FIFO queue scheduling algorithm Port rate limit
Safety	IEEE 802.1x, access control based upon Port; support local and remote RADIUS. CHAP, EAP certification; Storm control, port protection,
Router	Support Router
Management	Web, TELNET
Size	117mm(L) ×88mm(W) ×32mm(H)
Environment	Operating temperature:0℃～50℃; Operating humidity:10%～85% non-condensing
Environment	Storage temperature:-40℃～80℃; Storage humidity:5%～95% non-condensing

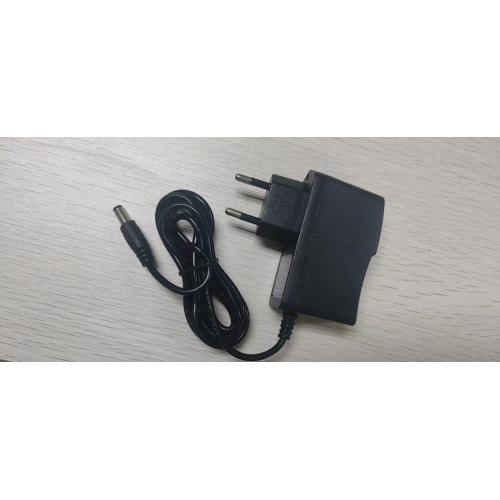

Power supply	110～240VAC 12V/0.5A DC Power interface size: 2.5mm
Power Consumption	2.5W
