Hot Selling 1GE Single Port EPON ONU

EPON ONU adopts the network standard, which  has  good openness and wided application. EPON ONU passive optical transmission network. As the transmission medium, the optical fiber is passive inthe whole transmission processs,and  the operation is reliable  and stable. With Mini Size,package can save much box and cartons to cut down freight for customers.So Mini Size Onu is warmly welcome to customers when they place order.

Epon 1ge Onu Product Features:

> Conform to IEEE802.3ah standard;

> Support Ethernet service layer 2 switching and wire-speed forwarding of uplink and downlink services;

> Support standard 802.1Q Vlan function;

> Support lightning protection for power supply and lightning protection for service port.

1Ge Onu Technical Parameter:

1. User interface:1*10/100/1000M RJ45 port;

2. PON:Transmission speed: upstream 1.25Gbps, downstream 1.25Gbps;Network coverage radius: 20KM;Optical receive sensitivity: -25dBm;Luminous power:＞0dBm;

3. VLAN:Port-based VLAN;IEEE 802.1Q VLAN;

4. Management:Web, TELNET;

5. Power supply:110～240VAC ,12V/0.5A DC;Power interface size: 2.5mm;

6. Power Consumption:2.5W.

Applications：

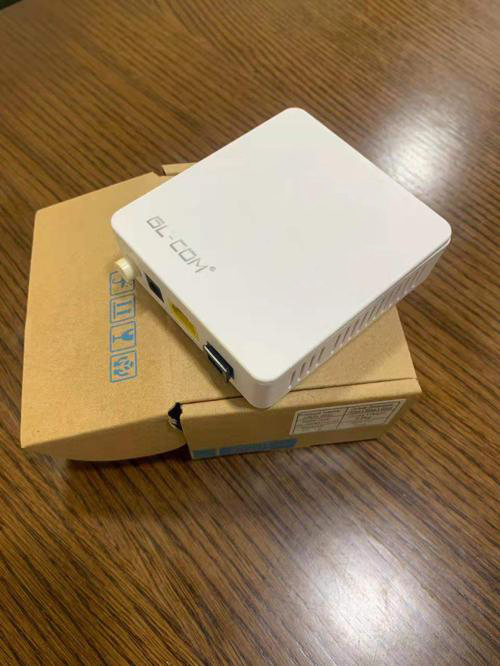

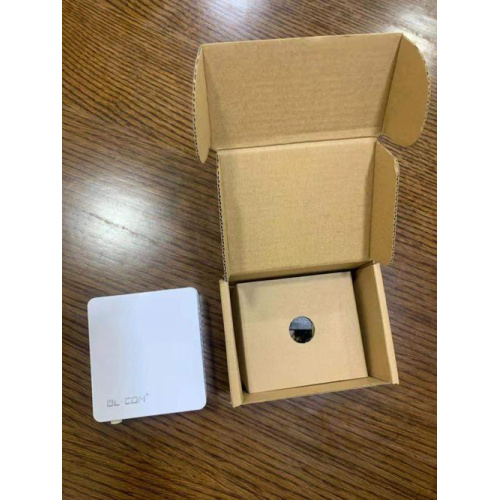

Product Packaging：
