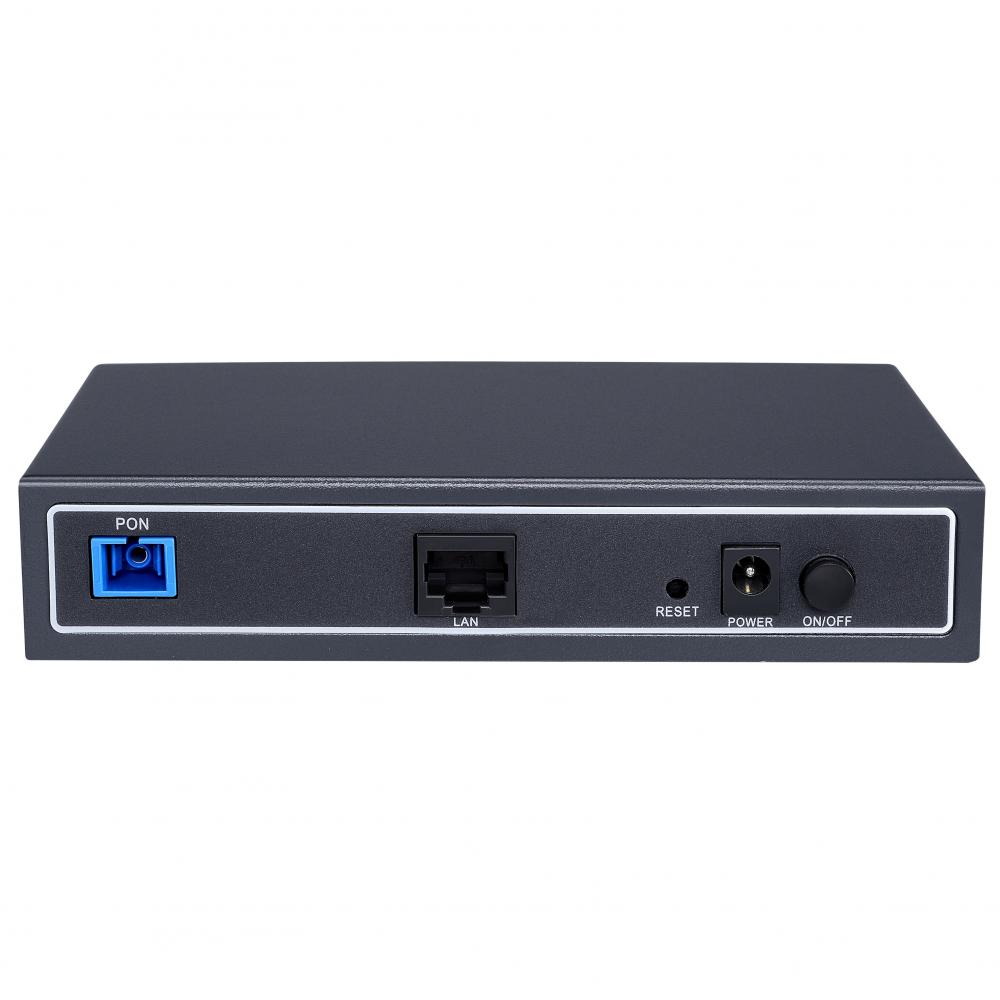

Iron Casing ONU EPON 1GE For FTTB

What is WIFI?
Wi-Fi is a technology that can wirelessly connect terminals such as personal computers and handheld devices (such as PDAs and mobile phones) to each other. Catv Epon Onu WiFi is a brand of wireless network communication technology, Catv Port Wlan Port Xpon Router Onu held by the Wi-Fi Alliance. The goal is to improve the interoperability between wireless network products based on the IEEE 802.11 standard. Nowadays, most people confuse Wi-Fi and IEEE 802.11. It even equates Wi-Fi to the wireless Internet.

GL-E8010U-CTM ONU products fully 2.4g+5.0g Wifi Gpon Onu comply with IEEE 802.3-2005 and China Telecom EPON equipment
 technical requirements V2.1, with carrier-grade operational, manageable, and Dual Band Wifi Xpon Onu easy to maintain features,
industrial-grade design,Wifi Gpon Onu With 2.4g And 5.0g to provide customers with high-speed data services. It has a PON uplink interface  connected to the central office 5.0g Wifi Gpon Onu equipment through optical fiber.
Features：
•Comply with IEEE802.3-2005 standard and CTC V2.1 technical requirements.
>Support Ethernet service layer 2 switching and wire-speed forwarding of uplink and downlink services。
>Support frame filtering and suppression。
>Support standard 802.1Q Vlan function, support VLAN conversion。
>Support 4094 VLANs (802.1Q)。
>Support dynamic bandwidth allocation function (DBA)。
>Support QoS, including business flow classification, priority marking, queuing and scheduling, traffic shaping and traffic control, etc。
•A single ONU supports one LLID.
>Support IGMP Snooping, support Ethernet port speed limit, loop detection, Layer 2 isolation。
>Support power failure alarm, remote reset and restart function, and factory parameter recovery function.
>Support data encryption, support status detection and fault report function, support power supply lightning protection and service port lightning protection。

Epon 1ge Onu Optical characteristics：
>Support wavelength division multiplexing technology single fiber bidirectional
(single fiber three-way) transmission
>Interface Type: SC/PC ,
>Maximum split ratio: 1:32
>Rate: Symmetry up and down 1.25Gbps
>Transmit wavelength: 1310 nm
>Receive wavelength: 1490 nm
>Output optical power: -1~+4dBm
>Receive sensitivity：< -26dBm
>The longest distance between OLT and ONU supports 20 kilometers

Physical properties：
Physical Size：110*70*30  （Length×width×height，Unit：mm）
Power supply：12VDC
Power consumption：6W
Temperature：
Working temperature：-25～65℃
Storage temperature：-40～75℃
Relative humidity：10～90% (Non-condensing)
