4GE EPON 1POTS WIFI CATV ONU

4GE 1POTS WIFI CATV EPON ONU is an ONU that integrates all functions. EPON ONU is a more popular version of passive optical network. The outstanding advantage of PON network is that it eliminates outdoor active equipment, and all signal processing functions are completed in switches and users' premises. GL-COM is honored to present this fully functional, highly reliable, easy-to-use and economical EPON ONU for customers.

Product interface:

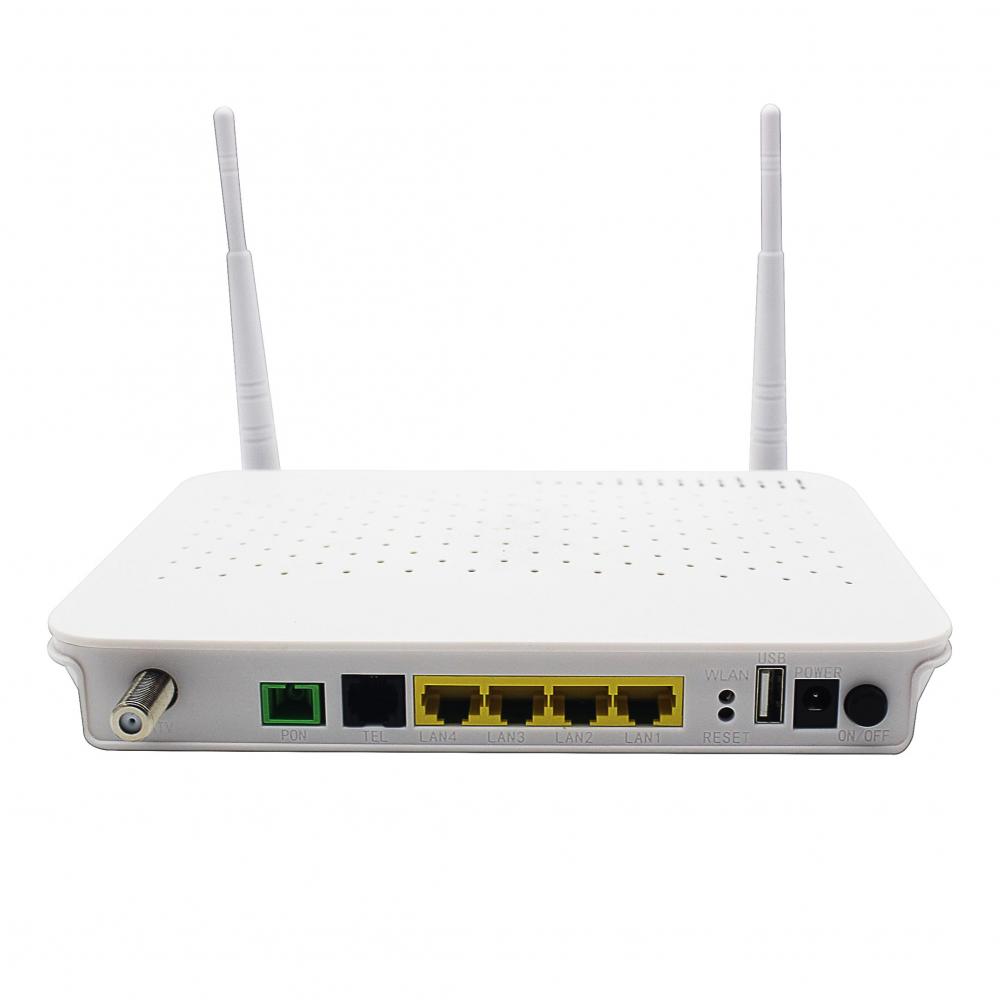

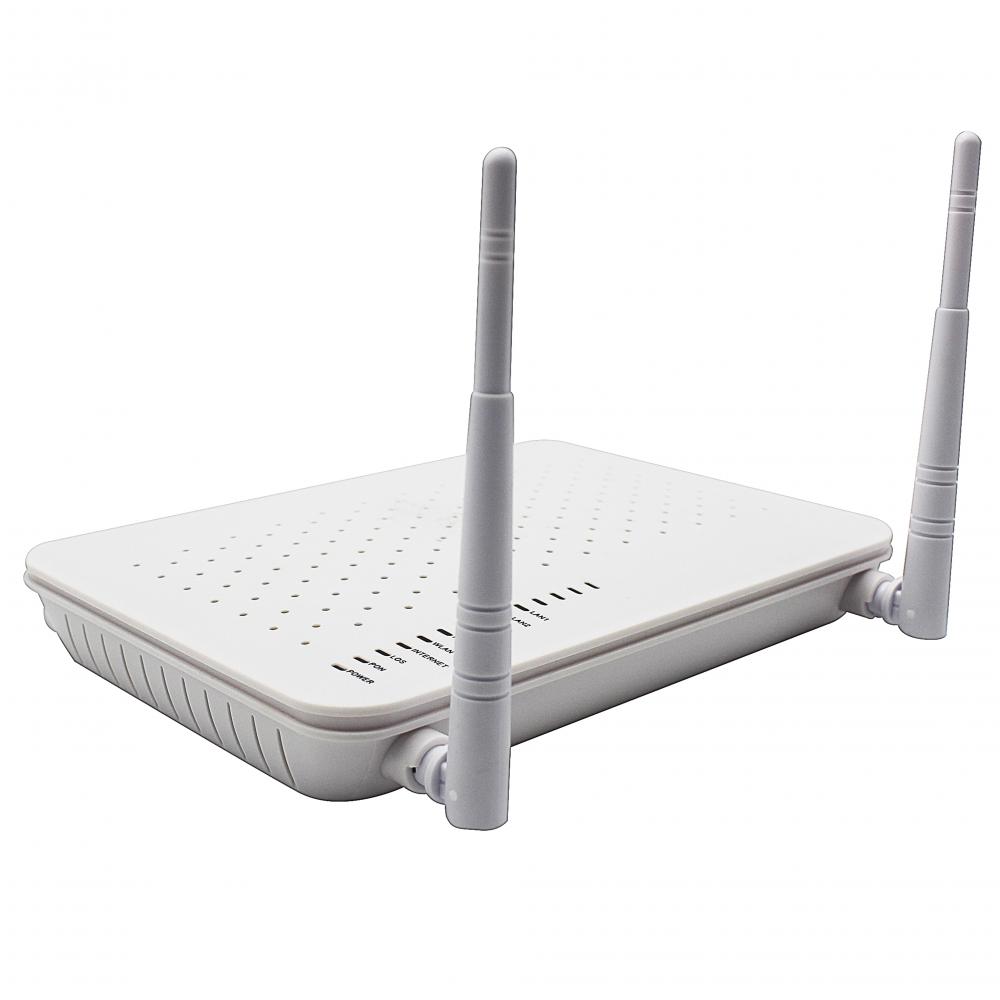

Interface: hardware interface, facing the interface direction from left to right,in order of interface:pon interface,VoIip/fxs Port,net port 4-net port 1,wireless switch,reset key,USB interface,dc 12-volt interface,power switch.Indicator light: LED definition from left to right: power supply,fiber G, optical signal,broadband,Phone Port,port 1-4,USB..

Triple Play Onu Product feature:

1. support bridge and NAT mode;

2. BOB product process;

3.802.11 b/g/n wireless access;

4.Wireless use of 2*3dBi external dual antenna;

5. USB interface supports configuration saving and recovery;

6.12v / 1.5a external power supply.

7.Provide a voip port for ordinary Telephone Port；> 600MHz CPU processor,I-Cache: 64KB, D-Cache: 32KB；

Business performance:

>Two-layer bidirectional line-speed forwarding of data services, support 2K MAC address tables in bridge mode;

>MAC support ACL rules, IP, TCP/UDP, ICMP and IGMP,IPV6 format；

>Each port has eight priority queues, supporting 32 Shared tables with a granularity of 8kpbs

>Supports 8 enhanced filter database stack vlans and port isolation for use；

>Port mirroring with multicast monitoring source ports is supported to monitor target ports；

>Support port IEEE802.3ad link aggregation, up to 4G bandwidth；

>Support loop detection,IGMP/MLD detective trap function；

VOIP feature:

> single channel selection, 105V most battery design

 > compact structure, 84-pin 7*7mm QFN components

>VOIP processor and SOCS use the fifth generation line interface

WIFI feature:

>speed：802.11b：compatibility 11,5.5,2,1 Mbps；

>802.11g：compatibility 54,48,36,24,18,12,9,6 Mbps；

>802.11n compatibility 130,117,104,78,65,58,52,39,26,19.5,13,6.5Mbps；
