FTTH EPON 4GE WIFI CATV ONU

What is CATV Onu ?

A passive optical network terminal product that integrates catv optical receiver and realizes the integration of broadband and catv networks is designed to meet the needs of broadcasting and television operators for broadband access and ftth fiber-to-the-home. It is based on the mature, stable and cost-effective Gigabit epon technology, which combines Gigabit Ethernet switching technology and hfc optical receiving technology.

E8007u-RWF is the device  with CATV PORT for fiber optic component ,in the EPON system, cooperating with EPON OLT. ONT can provide various broadband services to the connected users, such as Internet, VoIP, IPTV, Video Conference and other businesses.It provides a PON interface, four 10/100/1000m adaptive Ethernet ports, and a USB interface based on mature, stable, cost-effective EPON technology.Single fiber WDM technology (down 1490nm, up 1310nm) is adopted to connect only one fiber to OLT, and the maximum transmission distance is up to 20km. It supports the power down and report function and supports the local WEB management function.

Product Interface:

1. HGU ONU product configuration, support bridge and NAT mode;
2. BOB product process;
3. 802.11 b/g/n wireless access;
4. Wireless use of 2*3dBi external dual antenna;
5. USB interface supports configuration saving and recovery;
6. 12v / 1.5a external power supply;
7. One CATV interface.

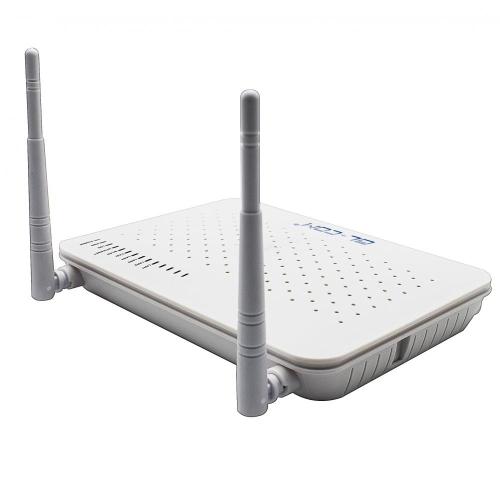

ONU Details:

Packaging Details:
