48GE And 4 10G SFP Port Ethernet Switch

What is the difference between a switch and a router?

Traditional switches evolved from bridges and belonged to the second layer of OSI,the data link layer equipment.It addresses according to the MAC address,selects the route through the station table,and the establishment and maintenance of the station table are automatically carried out by the switch.The router belongs to the third layer of OSI,that is,the network layer device.It addresses according to the IP address and is generated through the routing table routing protocol.

Product overview:

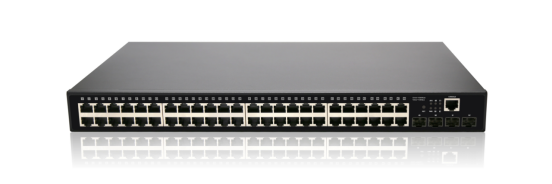

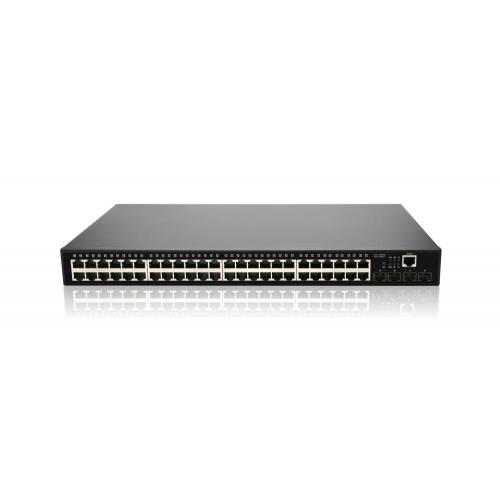

The Switch is a BCM chip three-layer non-blocking switch.It is equipped with 48-bit 10/100/1000M RJ45 electrical ports,4 integrated 10G Sfp Fiber Port,and one console port.It provides high capacity switching capability and supports Layer 3 and Layer 4 ACLs.Support automatic DoS attack defense and SNMP,IEEE 802.1,spanning tree,spanning tree protocol,Link aggregation...

Key Features:

High performance:With 300G backplane bandwidth;hardware routing,wire-speed three-tier exchange packet forwarding rate of 223.2Mpps;Large data packets up to 9216 bytes

Safe and reliable

Provide DOS,distributed denial of service,spoofing and viruses and other defense;Limit the maximum number of ports connected to the host,the Ethernet Port for multiple binding,increase bandwidth and system redundancy;Strong ACL,support L2-L4 layer data filtering

Easy to use and maintain

Can be through the Web,SNMP and other ways to manage;Support SFP +,but also backward compatible with XFP and so on

Powerful traffic and broadcast management

Automatically detect and suppress broadcast storms,support IGMP message detection,effectively limit the proliferation of broadcast messages;Support full-duplex mode and half-duplex mode of flow control;Supports the Ethernet interface to 1M speed limit

Product specifications:

Backplane bandwidth:300Gbps;Packet forwarding rate:223.2Mpps;Processor:RISC 400;Flash memory capacity:16MB;GB RAM:128M;MAC address list:16K;Size:440*285*44mm;Power source character:AC 110-240V self-adaption,47-63Hz,1A/230V;Power:≥80W;Environment temperature/humidity:0-50℃ operation,-40-70℃ save,0-90%  no-condensing.
