10G Ethernet Switch 24GE With 4 10G SFP

10G Ethernet Switch 24GE With 4 10g Sfp Fiber Port

The Basic functions for switch:

1. Like a hub,the switch provides a large number of ports for cable connection,so you can use star topology wiring.

2. Like repeaters,hubs,and bridges,when it forwards frames,the switch regenerates an undistorted square electrical signal.

3. Like a bridge,the switch uses the same forwarding or filtering logic on each port.

4. Like a bridge,the switch divides the LAN into multiple collision domains,and each collision domain has an independent broadband,thus greatly improving the bandwidth of the LAN.

Product overview:

It's L3 clog free 10g Switch with BCM chipset series developed by GL-COM.This product used the modules design with 24*10/100/1000 RJ45 base T ports,4*integration 10GE Sfp Fiber Port,1*console ports,and also can be offer enough bandwidth,high capacity of exchange,support the ACL function which is the L3 and L4.Prefect security control strategy and CPU protect policy can be used for improve fault tolerance ability to ensure the stable operation of the internet and link road balancing.At the same tine,this switch also support auto DoS defense of attack,SNMP,IEEE802.1,spanning tree,rapid spanning tree protocol,link aggregation and etc functions,it is fit for the middle small-sized enterprise,campus network,internet bar and metropolitan area network and so on margin to use.

Product specifications:

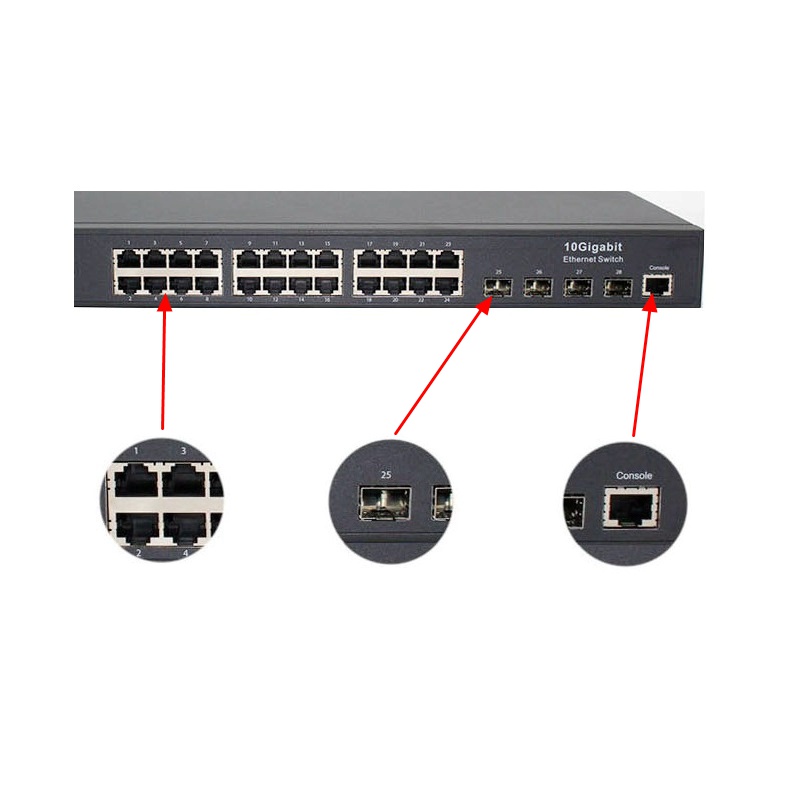

Fixed ports:24*10/100/1000M RJ45 Base T ports、4*integration 10GE Sfp Fiber Port、1*Console ports;

Backplane bandwidth:218Gbps

Mpps:162.19Mpps

Processor:RISC 400

Flash memory capacity:16MB

GB RAM:128M

MAC address list:16K

Queue buffer technology:3MB

Indicator light:Power source indicator,system indicator,connector/transceiver
Environment temperature/humidity:0-50℃ operation，-40-70℃ save，0-90%  no-condensing.

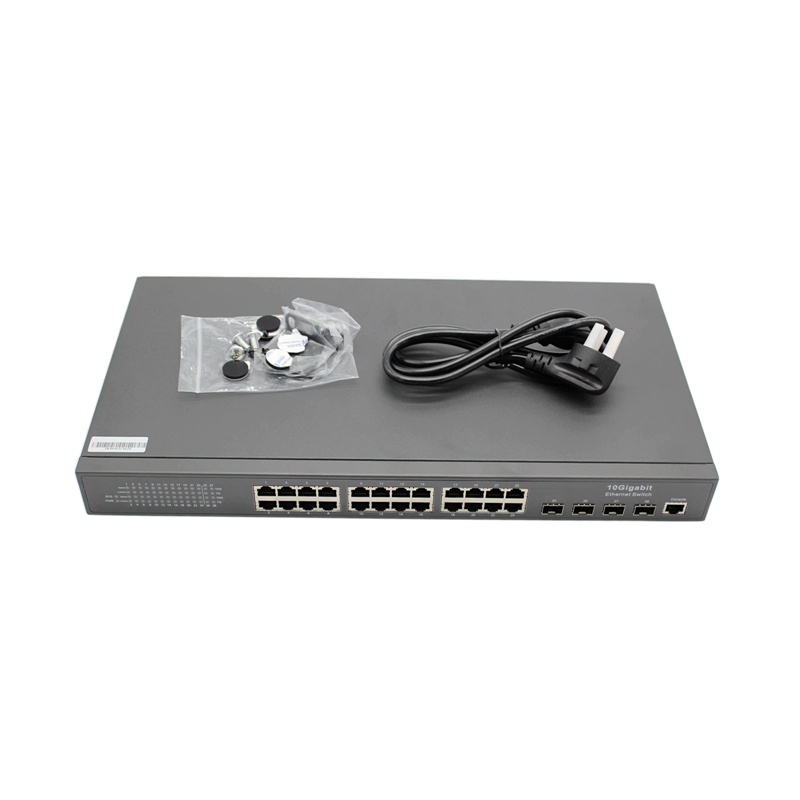

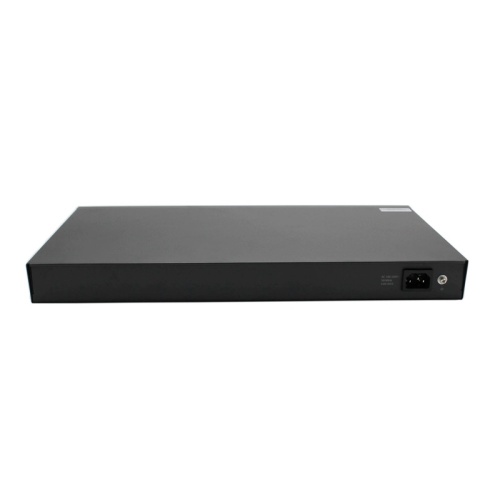

Products details:
