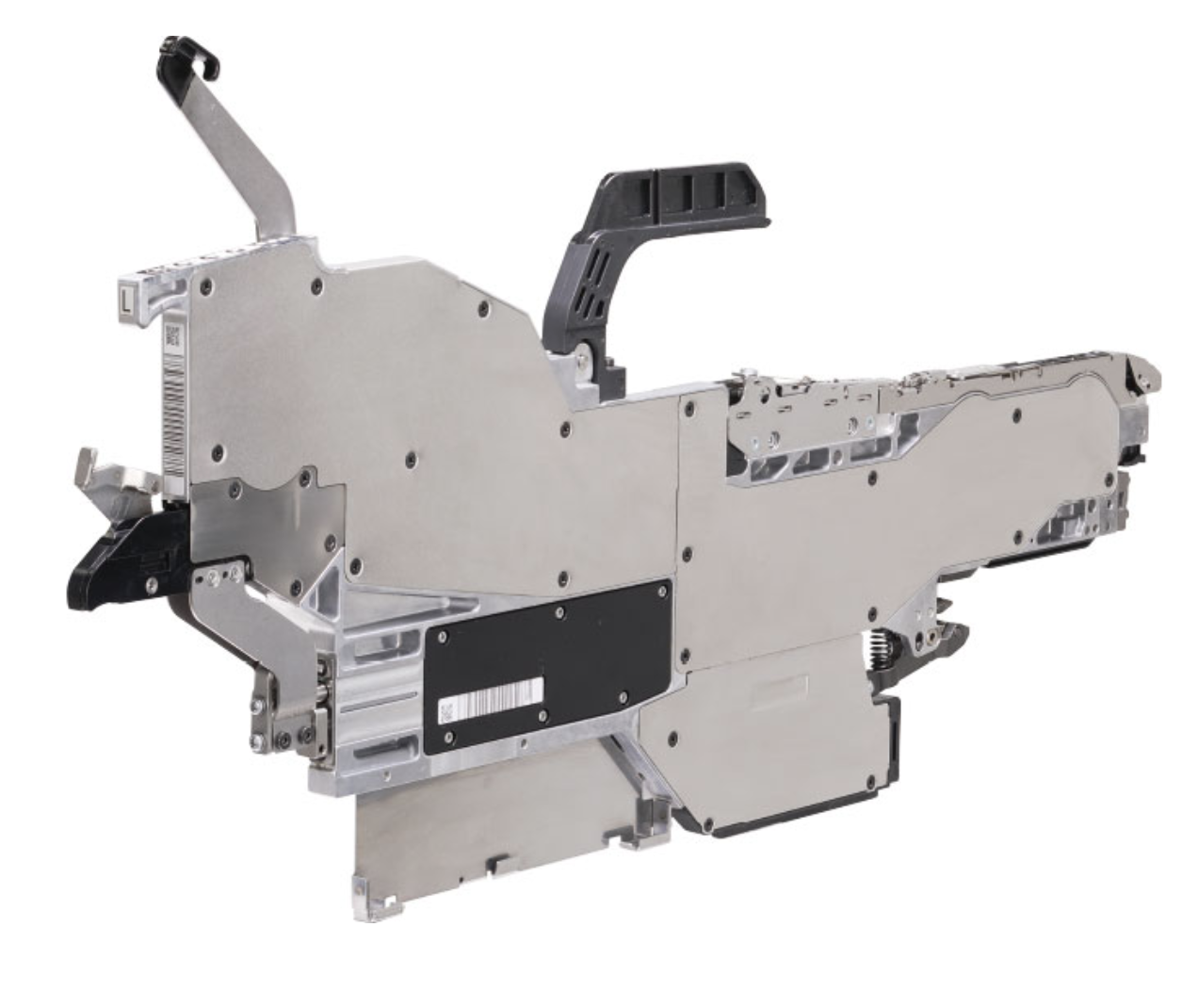

smt Auto Loading Feeder

The feeder in the SMT industry is the transliteration of Feeder, which is generally translated as a feeder or a feeder, and it is also called a feeder (but this name is rarely used in the SMT industry). Its function is to install SMD patch components on On the feeder, the feeder provides components for the placement machine for placement. For example, there is a PCB that needs to mount 10 kinds of components, and then 10 feeders are needed to install the components to feed the placement machine.

Overall dimensions and weight of the feeder L549 × W11.5 × H278mm
Weight 　1.50kg
Applicable tape width 8mm, maximum thickness 1mm
※There are restrictions 　 please contact us
Material 　 paper/ (embossing 　 is in the development stage)
※Does not support pressure sensitive adhesive cover tape (PSA)
Applicable reel specifications, feeding pitch setting 　2mm/4mm
Reel width below 14.4mm, below φ382mm
When using the preset bracket, the reel width is 13.6mm or less and φ178mm or less
Converted to 8mm 　 installation width pitch 12mm
The minimum strip length that can be loaded is more than 400mm
Applicable component size 0603 ~ 3216mm
Feeder types 4 types　2S(0603/1005)/M(1608)/L(2012)/LL(3216)
Tape loading time: about 5 seconds
※The tape starts to be fed in ~ Ready to pick up
Applicable placement machine YS/YSM/YRM series with tape cutting function
