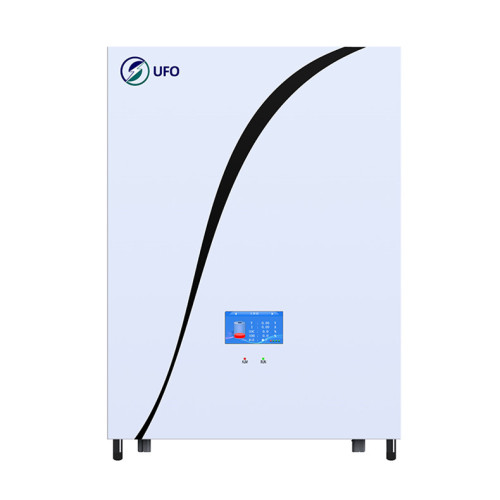

48V 200ah Lithium Battery Pack for Energy Storage

The effect of electrolyte on internal resistance and rate chargability of lithium battery

Lithium ion batteries, lithium ion layer and delaminating are embedded in the electrode and electrolyte phase interface, the ease of the reaction, electrochemical polarization degree, not only related to the nature of electrode material, and interface in the electrolyte and electrode materials, li ion electrolyte in the existing state and lithium ion is related to such factors as the interaction between the electrolyte.  In this sense, the properties of electrolyte system also affect the polarization resistance of  lifepo4 batteries to a certain extent.

Rate charging-discharge performance is an important index to measure the capacity retention ability of energy storage lithium ion batteries under rapid charging-discharge conditions.  The rate charge-discharge performance of the lithium battery depends on the mobility of lithium ion in the electrode material, the conductivity of electrolyte and the mobility of li ion at the electrode/electrolyte phase interface, the latter two are closely related to the composition and properties of electrolyte.

Product information :

1.The Lifepo4 Battery Pack wallmount battery Solar Battery Systems has passed CE, UN,MSDS,IEC,UL and other certifications.

2. The regular model for Powerwall are 2.4Kwh,5kwh, 7kwh and 10kwh. Other model can be got for choices.

3. The 48V 200Ah Powerwall powerwall batteries support Maximum Continuous discharge Current 100A, with LCD which shows the battery voltage, SOC status.

4. With RS232/RS485/CAN and can communication on PC

5. Suitable with lots of off-grid and hybrid inverters and match well.　

6. Compatible with different brand inverter communication with APP monitoring function.

7. Support in parallel for more than 10pcs for more energy storage,we suggest to be in parallel 4-6　ets for best performances

8. More than 6000 cycles @80% depth of discharge. High Efficiency Battery

10. Off-grid inverter and hybrid inverter are available based on your actual requirement .

Advantage :

1. Unique design, highly performanace
2. Ten years design life time
3. Any spectrum can be OEM/ODM, at any stage of growth.
4. Top quality material, Easy installation and maintenance.

5, Y15+ Professional engineer team support.

Powerwall battery Parameters:

Part No.:	U-P48200-9
Power(w):	4.8kwh
Norminal Capacity:	200Ah
Charge voltage :	53.5~55.5v
Max charge and discharge current:	100A
Product size:(mm)	L650*W485*H230mm
Communication port :	CAN/RS485/RS232/Dry contact
Working temperature :	-20 ~ 60℃
Charge mode :	CC-CV

About shipment and payment :
How to order: Provide your qty ,we will check the shipping fee and give you payment information.
Which payment: T/T, L/C, Paypal, 30% deposits, 70% balance to be paid before shipment
Lead time: 10-15days for samples after deposit receive , mass production depend on actual qty
Shipment Method:
1. UPS/DHL/FEDEX/TNT /EMS for samples.
2. By Air or by Sea for batch goods, for FCL and LCL.
3. Customers specifying freight forwarders or negotiable shipping methods!

Powerwall battery Product Details:

BMS Functions:
--Overcharge detection function                                   --Over discharge detection function
--Over current detection function                                 --Short detection function
--Temperature detection function                                 --Balance function
--Communicate function RS485,RS232,CANBUS         --Alarm function

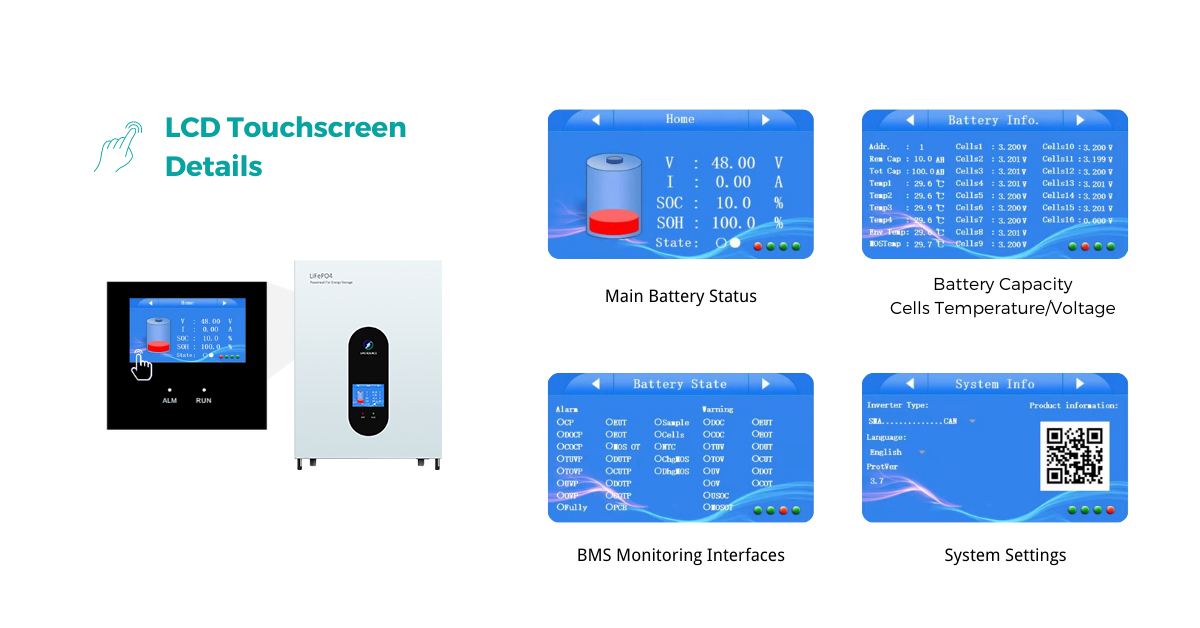

Touch LCD Screen :

Terminal definition

UFO Lithium ion batteries could support 15pcs in parallel.

Installation of lithium battery in parallel :

Connection mode of parallel communication :

Packaging

Company Profile

Not only are we engaged in the research, development, sale and service of Lithium-ion Battery, but we are proud to say our factory is ISO9001 certified.
Being a UFO POWER customer, you can be confident when purchasing from us because what behind you are our professional team, strict quality control and thoughtful customer service. Our team has been in this industry for over 10 years of lithium-ion battery experience. Our certifications like MSDS, CE is our commitment to quality and safety for our lithium batteries,48v Battery Voltage Chart, to ensure we comply with the industry’s quality and safety standards. We are always available to discuss your requirements of batteries within 24 hours. Our know-how and expertise, incorporated with our unparalleled customer advice and after sales support will ensure your enjoyable customer journey.

Our Services

● Pre-sales Service

1. Inquiry and consulting

2. Sample support

3. View our factory

4. More than 95% of the timely response rate, timely response to customer questions

● After-sales Service

1. Engineer's technical support

2. Use online contact methods such as skype whatsapp to privide online services to customers.

Our Advantages

       ODM/OEM Service                                      10+ Years Reputed Manufacturer                   10+ Years Experienced R&D Team Support

FAQ
Q1: Are you a manufacturing factory?
A1: Yes, We are a lithium battery manufacturer from China since 2010. You are welcome to visit our factory and production process. If the quantity is suitable, we accept OEM/ODM.
Q2: What’s your product range?
A2: We focus on Lithium-ion battery, Lithium iron phosphate (LiFePO4) battery for residential and commercial energy storage system, telecom tower, UPS, AGVs, golf carts, boat, RVs, camping, electric vehicles, etc. 48v 200ah Powerwall for option.
Q3: What is the production time for your lithium battery?
A3: The sample delivery time is about 5-10 days. The bulk order delivery time is about 25-35days based on quantity.
Q4: Can I buy one or two units as a sample first?
A4: Yes. Samples are welcome for the LiFePO4 battery. Please contact our sales manager to place the order.
Q5: Are there any discounts available?
A5: We can of course talk to specific numbers, but let’s make sure we’re on the same page about this solution being a good fit for your needs.
Q6: How do you guarantee the quality?
A6: We encourage buying a sample initially prior to bulk purchases.
   We always perform a thorough final inspection before shipment.
Q7: How are the products packaged for shipment?
A7: Package Information: carton or wooden packaging.

If you need a battery solution for your solar project, please contact us
