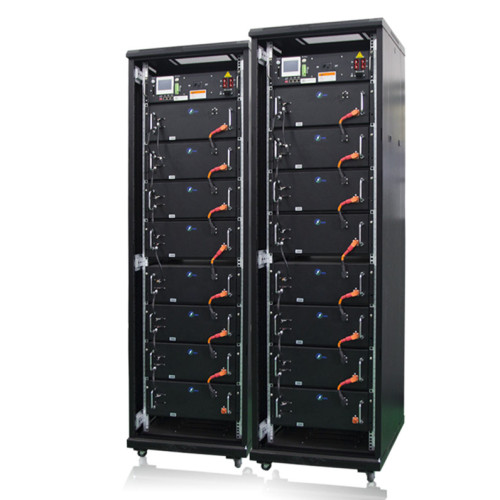

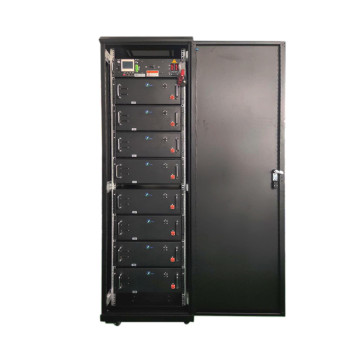

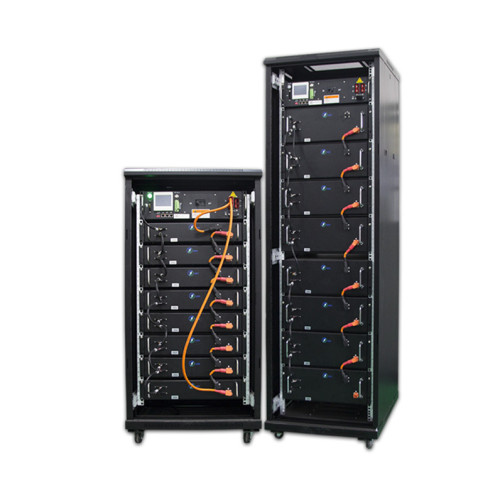

384V lifepo4 high voltage battery for ESS solar

Lithium Energy storage is a key solution for rapidly decarbonizing solar power systems, spreading clean energy around the world, and making communities more resilient to climate-driven weather extremes。

For commercial and industrial users, previously implement solar energy storage by saving electricity bills and encouraging the use of clean energy, now it is a greater desire to increase resilience and be able to live normally in response to extreme weather disasters. For larger power solar system- and grid-side projects, it is desirable to select suppliers who can consistently deliver solid products.Our UFO company have produce the lithium battery energy storage for more than 10years, earn lots of good evaluation from the customer, you will feel very comfortable to choose us.

Specification

Type	Module
Model	LFP384V50AH	LFP384V100AH	LFP384V150AH	FP384V200AH
Battery Capacity [Ah]	50Ah	100Ah	150Ah	200Ah
Nominal Battery Energy [kwh]	19.2	38.4	57.6	76.8
Max Discharge Current [A]	50	100	100	100
Net Weight(kgs)	320kgs	438kgs	749kgs	800kgs
Dimension  [H*W*D, mm]	600*600*1600	600*600*1600	600*600*1400*2pcs	650*600*1600*2pcs
Voltage Window (V)	438V	438V	438V	438V
Output Voltage Range (V)	336V~438V	336V~438V	336V~438V	336V~438V
Max. Charge Current(A)	50A	100A	100A	100A
Charge Mode	CC-CV	CC-CV	CC-CV	CC-CV
Scalability	10 PCS UP to 192kwh / 384 kwh / 576kwh / 768kwh
Communication	CAN / RS485 / RS232 /DRY CONTACT
Charge Temperature	0~5 5℃
Certification Standard	IEC62619 /TUV / UN38.3 / UL /CE / ISO90001

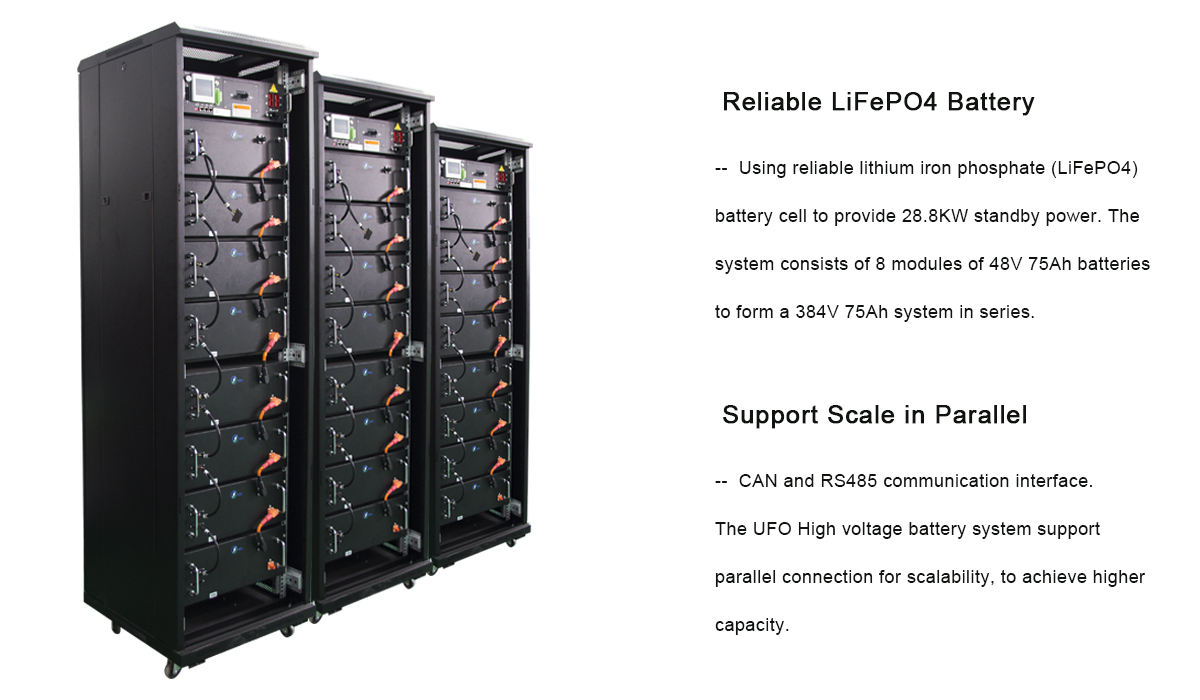

1. Quick details of High Voltage LiFePO4 384V 100Ah Battery

* High voltage power up to 384V

* 120S2P combination way to achieve 38kw power

* Extremely safe for residential energy storage

* Use high power density lithium iron phosphate battery cell* Long cycle life up to 6000 times

* Environment friendly

2. BMS functions of LiFePO4 battery 384v 100Ah

Detect and protect the battery from over-charge ,over-dicharge, over-current short-circuit, temperature detecting protection and

auotmatically voltage balance function .

Build with high end electronic components (High End IC and MOSFET ) , Simple structure design will let it have more stable quality working performance , Flexible application ( it can be used for less series battery by leaving some connection pins at empty status ), full set of protection measures let it works well without any influence from external unexpected accidents.

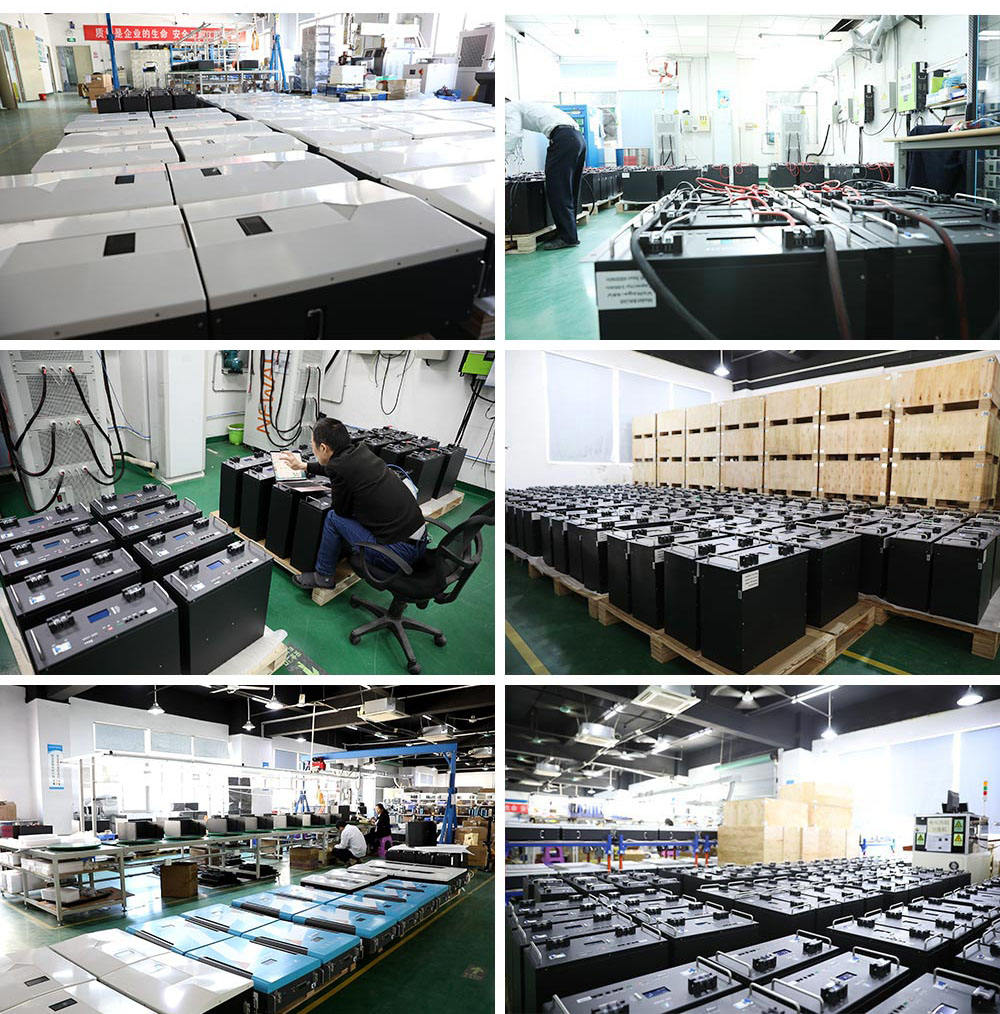

Manufacturing Technique
