High voltage lithium battery storage system

High voltage lithium battery storage system

Get Latest Price

Payment Type:: L/C, T/T, Paypal

Incoterm:: FOB, CFR, CIF, EXW

Delivery Time:: 30 Days

Transportation:: Ocean, Air

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	L/C,T/T,Paypal
Incoterm:	FOB,CFR,CIF,EXW
Transportation:	Ocean,Air

Product Description

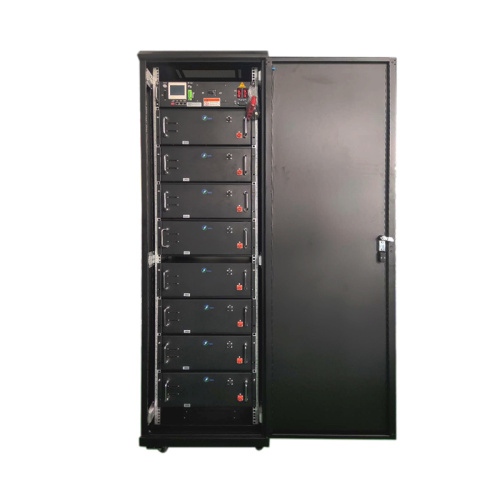

High voltage backup battery:FULL Power

Lithium ion battery solution for high voltage system UPS application . Our High voltage lithium battery series ,Lithium Ion Battery Packs through the intelligent, moudlar, and green design, solve the customer problems such as battery space occupation, complicated operation and maintenanace ,high replacement cost , difficult expansion and other problems, leading the future of backup power development .

These packs can be configured for either high energy or high power applications and use the lithium ion battery technology .

Lithium batteries of this series use high rate LFP cells and BMS system developed by us , and integrates a remote management system and an intelligent fire protection module , these battery feature high reliablility ,high stability ,long service life and outstanding safety .

Characteristics :

1, Four-level safety protection to guarantee reliable and safe system operations(cell level,module level, pack level, and system level )

2, Designed service life of y15+

3,long cycle life

4, Highly performance cell with greater capacity for exceptional performance

5, Any spectrum can be OEM/ODM, at any stage of growth.

High Voltage BMS System :

The LS/LU Series BMS products are battery management systems developed for large-scale high-voltage battery energy storage systems. It adopts distributed architecture, modular design concept, high configurability, easy assembly, debugging and maintenance. It is suitable for various battery energy storage systems with DC voltage below 1000V. This product can be configured as a secondary architecture (BMU+CBMS) for 10KWh-100KWh. Cooperate with industrial computer and battery stack management software to form a three-level architecture (BMU+CBMS+GBMS) for 50KWh-2MWh applications. In conjunction with the server and plant battery management system software, it can form a four-level architecture (BMU+CBMS+GBMS+BBMS) for applications from 2MWh to 1000MWh to meet different project requirements.

Our Smart BMS complete and reliable operation and protection strategy to effectively extend the life of the battery pack. It comes with a variety of communication interfaces and can be directly or indirectly connected to third-party energy management systems.

BMS Topology:

Battery product Parameters :

Model	U384-75-H
Norminal Voltage	384v
Norminal capacity	75Ah
Rated reserved energy	28.8kwh
Maximum charging current	75A
Maximum discharge current	25A
Charge cut-off voltage	424~438V
Size	600(W)800(L)2260(H)mm
weight	450kg
Discharge cut-off voltage	300~324V
Communication interface	RS485、CAN
Protection function	IP20 Protection grade

About payment and shipment :

How to order: Provide your qty ,we will check the shipping fee and give you payment information.

Which payment: T/T, L/C, Paypal, 30% deposits, 70% balance to be paid before shipment

Lead time: 10-15days for samples after deposit receive , mass production depend on actual qty

Shipment Method:

1. UPS/DHL/FEDEX/TNT /EMS for samples.

2. By Air or by Sea for batch goods, for FCL and LCL.

3. Customers specifying freight forwarders or negotiable shipping methods!

Our Services
● Pre-sales Service
1. Inquiry and consulting
2. Sample support
3. View our factory
4. More than 95% of the timely response rate, timely response to customer questions
● After-sales Service
1. Engineer's technical support
2. Use online contact methods such as skype whatsapp to privide online services to customers.
