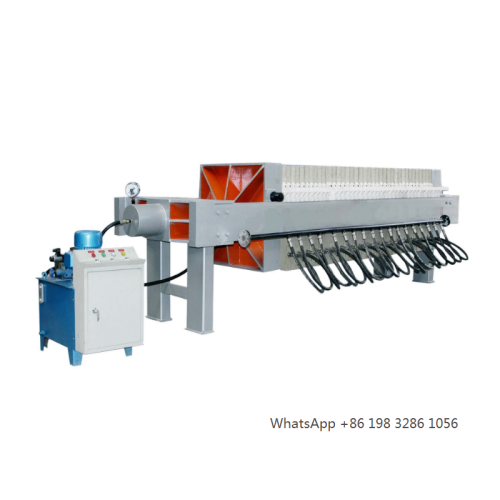

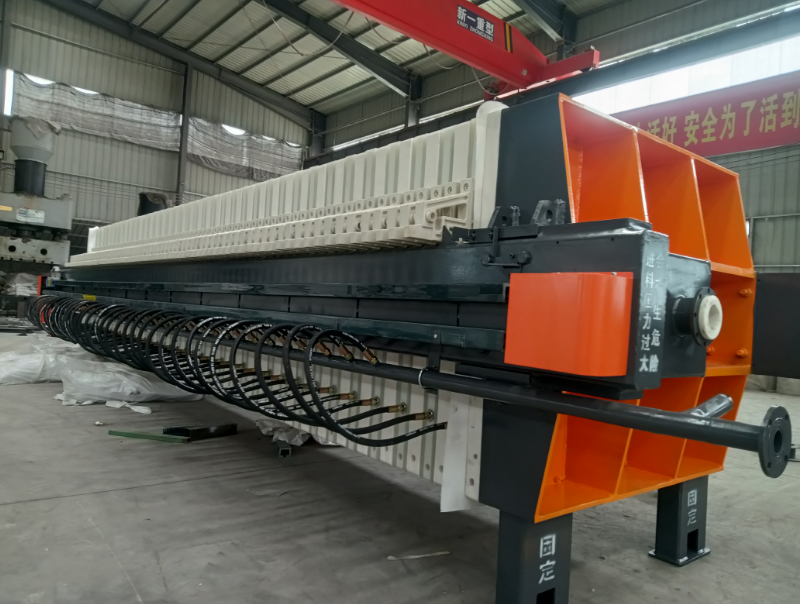

1500 Series Hydraulic Membrane Filter Press

The program-controlled automatic diaphragm filter press is controlled by PLC, which can perform various operations on the filter press (such as filter plate compression, loosening, and unloading) and has a remote port for remote computer automatic control; the diaphragm press filter press is controlled by Diaphragm plates and chamber filter plates are arranged to form a filter chamber. After the feeding is completed, the tympanic membrane press is started to reduce the moisture content for the second time. The filter chamber is composed of filter plates (both sides of the filter plate are recessed, and every two filter plates are combined to form a box-type filter chamber). The surface of the filter plate has pits and bosses to support the filter cloth. There are through holes in the center and corner of the filter plate, which form a complete channel after assembly, which can pass through the suspension, washing water and lead out the filtrate. There are handles on both sides of the filter plate supported on the beam, and the filter plate is pressed by the pressing device. The filter cloth between the filter plates acts as a seal. The filter part is composed of filter plates neatly arranged on the main beam and filter media sandwiched between the filter plates. At the beginning of filtration, under the pressure of the feed pump, the filter slurry enters each filter chamber through the feed inlet of the thrust plate. The filter slurry is separated from solid and liquid by the pressure generated by the feed pump. , use the solid to stay in the filter chamber to form a filter cake, and the filtrate is discharged from the water nozzle or the liquid outlet valve. If the filter cake needs to be washed, the washing water can be put into the washing port on the thrust plate to wash the filter cake; Part of the moisture in the filter cake. When in automatic control, turn the rotary switch to the "automatic" position, and then press the "program automatic" button, the system will automatically complete the process of compression, pressure replenishment, pressure relief, loosening, plate removal, and plate pulling.
