Program Controlled belt Filter Press
-
$3000.00≥1000 Set/Sets
- Min. Order:
- 1000 Set/Sets
- Min. Order:
- 1000 Set/Sets
- Transportation:
- Ocean, Land, Air, Express
- Port:
- Shenzhen, Qingdao, Shanghai
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | Shenzhen,China |
|---|---|
| Supply Ability: | Standard package transport |
| Payment Type: | T/T,L/C,Paypal |
| Incoterm: | FOB,CFR,FAS,FCA |
| Certificate: | CE,RoHS |
| HS Code: | 8421291090 |
| Transportation: | Ocean,Land,Air,Express |
| Port: | Shenzhen,Qingdao,Shanghai |
Belt filter press can turn sludge mud into mud cake and water, realize water recycling, to meet the requirements of environmental protection, because of its large capacity, low energy consumption, mud cake solid content is high, simple maintenance, continuous work and other advantages, popular with the public. Do you know what the belt filter press can be used in? Let me introduce to you:Belt filter press is widely used in urban sewage, textile printing and dyeing, electroplating, papermaking, leather, brewing, food processing, coal washing, petrochemical, chemical, metallurgy, pharmaceutical, ceramic and other industries of sludge dewatering treatment. It is also suitable for solid separation or liquid overflow in industrial production.
Application
1, suitable for water sludge dehydration
2, can be used for starch, juice processing and other industrial sectors of dehydration
3, can be used for blast furnace, converter, sintering and other metallurgical sludge dehydration
4, paper making, tanning, livestock products, aquatic products, chemical and food wastewater sludge application
5. Sludge concentration treatment and dehydration treatment in municipal sewage and water purification plant.
6, site, piling, shield, punching, construction, Bridges and other mud dehydration curing dry drainage.
| Model | Filter Area m2 | Filter Plates (layer) | Filter chambers volume (m³) | Dimension (L*W*H )mm | Hydraulic Power (kw) | Plate size(mm) |
| XAMZ200/1500-35U | 200 | 49 | 3030 | 7050*2260*1925 | 7.5 | 1500*1500 |
| XAMZ250/1500-35U | 250 | 61 | 3739 | 7890*2260*1925 | ||
| XAMZ300/1500-35U | 300 | 74 | 4431 | 8800*2260*1950 | ||
| XAMZ400/1500-35U | 400 | 99 | 6007 | 10670*2260*1950 | ||
| XAMZ500/1500-35U | 500 | 123 | 7478 | 12350*2260*1950 | ||
| XAMZ500/2000-40U | 500 | 69 | 10000 | 9720*2800*2425 | 11 | 2000*2000 |
| XAMZ600/2000-40U | 600 | 83 | 12000 | 10840*2800*2425 | ||
| XAMZ700/2000-40U | 700 | 97 | 14000 | 12160*2800*2425 | ||
| XAMZ900/2000-40U | 900 | 125 | 18000 | 14000*2800*2425 | ||
| XAMZ1000/2000-40U | 1000 | 139 | 20000 | 15110*2800*2425 |
|
|
unit | GPY-40 | GPY-60 |
| speed of agitator | r/min | 73 | |
| Mixing motor Work rate | Kw | 2.2 | |
| Feed size |
|
Less than 0.063 mm fraction content is not more than 35-40% | |
| capacity | t/h | 8-12 | 12-18 |
| Product water | % | 22-24 | |

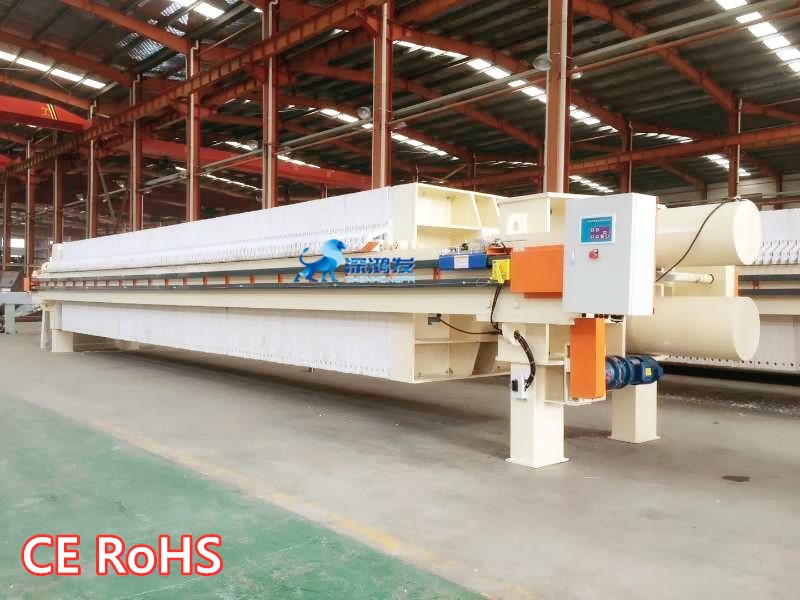

Filter press consist of frame, filter plate, pressing system(manual, mechanical or hydraulic ) and electric control cabinet.
Frame consists of base, push plate and girder and supports the pressing device and filter plates.
Filter plates are installed on girder between tail plate and push plate, with filter cloth sandwiched in them.
In operation, the pressing device(cylinder piston rod or screw ) drives the push plate to press the filter plates and filter cloth between push plate and tail plate. Filter chambers are formed between pressed filter plates and material get in to The filter chambers through the feeding port in tail plate. Solid particles are trapped in filter chambers form into cakes, while liquid is discharged out of the tail Plate. In similar manner, to drying the press cakes, compressed air can be introduced through the washing port.
Plate and frame type filter-Press is the same as recessed plate filter press in structure, except the filtering part that consists of one plate, one frame and filter cloth, with filter chamber between plate and frame.
Liquid stream of filter press can be divided into exeternal stream and internal stream. Exeternal streamrefers to that the filtrate is discharged directly from outlet port of filter plate; Internal stream refers to that the filtrate from various filter plate is collected before being discharged out of the filtrate port.
Our Project on Sewage treatment cases
Advantages of Shenzhen HONGFA Filter Press:
1. Low filter cake moisture;
2. Unmanned operation and cost saving;
3. Resist high temperature and corrosion;
4. Good sealing effect can perfectly avoid leskage;
5. Energy saving high performance chamber filter press with long working life
----F A Q
1. What's the payment details?
Deposit before production, and balance before shipment.
2. What's the delivery time?
For common order, about 20 days only.
3. What about the warranty for the machine?
Free warranty for one year
4. Do you provide OEM Service?
Yes. OEM & ODM Service is ok for us.
5. What's the MOQ?
1 SET
6. How about the package?
suitable for sea freight as per your request.
For more information , pls just feel free to contact, we could provide different kinds of filter press with high quality and low prices, coz we are the factory !
