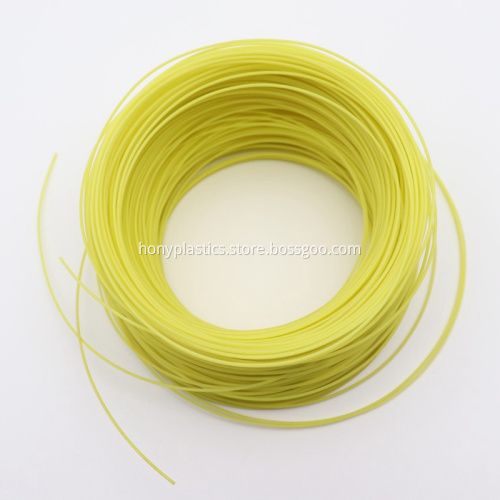

Hard plastic tube pom plastic tube for medical
-
$3.901-99 Kilogram
-
$3.80100-999 Kilogram
-
$3.70≥1000 Kilogram
- Transportation:
- Ocean, Land, Air, Express, Others
- Port:
- SHENZHEN, GUANGZHOU, HONGKONG
Your message must be between 20 to 2000 characters
Contact NowPlace of Origin: | China |
---|---|
Productivity: | Enough |
Supply Ability: | Enough |
Payment Type: | T/T,Paypal |
Incoterm: | DDU,EXW,DES,CIF,DAF,CFR,FOB |
Certificate: | ROHS, REACH , ISO , SGS |
Transportation: | Ocean,Land,Air,Express,Others |
Port: | SHENZHEN,GUANGZHOU,HONGKONG |
HONY®POM tube 100% raw material extruded plastic tube rigid plastic pipe,plastic pipe factory natural pom tube 3.6 4.5 5 6 8 10mm hard plastic tube abrasion pom pipe.Good mechanical properties and rigidity, and close to the metal material. It's an ideal replacement material of copper, cast zinc, steel, aluminum and other metal materials. Excellent fatigue resistance and creep resistance. Good abrasion resistance, self-lubricated and friction. High thermal stability, good chemical stability and excellent electrical insulation. And it can be used in temperatures ranging from -20℃ to +80℃.
Advantages:
♦ High surface hardness, low abrasion consumption, impact fatigue and shock resistance, low coefficient friction, and self-lubricating, therefore, it is the first material choice for manufacturing gear.
♦ High mechanical strength and rigidity. Although the contraction rate is high, the dimension is stable.
♦ Good dielectric properties, solvent resistance, non-stress cracking, no porosity.
♦ Torsional resistance, it can be restored to the original shape when removing the external force.
♦ Low water absorption
Applications:
Medical,Automobiles, machine tools, instrument internals, bearings, fasteners, gears, springs, pipes, conveyor belt accessories, electric water tanks, pump casings, drainers, faucets, etc.
Our strengths
● Factory direct sale with negotiable price.
● Better quality compared with similar suppliers.
● With certificate ISO/RoHS.
● Accept Customization.
● hours prefessional service.
● Support payment terms as per your request.
● Bulk stock.
● Quick shipping within 3 days.
HONY®POM Properties Data Sheet
Item | Method | Unit | Value |
Machanical Properties | |||
Specific gravity | ASTM D792 | g/cm3 | 1.56 |
Tensile yield strength | ASTM D638 | MPa | 100 |
Breaking elongation | ASTM D638 | % | 10 |
Bending strength | ASTM 790 | MPa | 150 |
Flexural modulus | ASTM 790 | MPa | 4500 |
Shore hardness | ASTM D2240 | D | 85 |
Impact strength | ASTM D256 | J/M | 100 |
Thermal Properties | |||
Melting point | DSC | ℃ | 190 |
Heat distortion temperature | ASTM D648 | ℃ | 140 |
Operating temperature (long term) | - | ℃ | 120 |
Opertation temperature(short term) | - | ℃ | 150 |
Thermal conductivity | DIN 52612-1 | W/(K-M) | 0.31 |
Coefficient of linear thermal expansion | ASTM D696 | 10-5-1-/K | 6 |
Electrical Properties | |||
Dielectric strength | ASTM D150 | KV-mm | 22 |
Dielectric loss factor | ASTM D150 | - | 0.005 |
Volume resistivity | ASTM D257 | Ω.cm | 10^14 |
Surface resistivity | ASTM D257 | Ω | 10^16 |
Dielectric constant | ASTM D149 | - | 3.9 |
Chemical Properties0.1 | |||
Water absorption | 23℃ 60%RH | % | 0.35 |
Acid resistance | 23℃ 60%RH |
|
+ |
Alkali resistance |
|
|
+ |
Acid and alkali resistance |
|
|
+ |
Resistance to sodium chlorate |
|
|
0 |
Resistance to aromatic compounds |
|
|
+ |
Resistance to ketone | 23℃ 60%RH |
|
+ |
Resistance to hot water | 23℃ 60%RH |
|
+ |
Others | |||
Flammability | UL 94 |
|
HB |
Viscosity | - |
|
+ |
Non totix | EEC 90/128 FDA |
|
+ |
Coefficient of friction | DIN 53375 |
|
- |
Anti-ultraviolet | - |
|
0 |
Remarks:
1.“+”: positive “-”: negative “0”: depends on condition.
2. All the parameters above are based on raw material but not finished products.
