Duratron® T7130 PAI Polyamide-imide 30% carbon fiber

Duratron® T7130 PAI Polyamide-imide is a 30% carbon fiber-reinforced grade that offers exceptional stiffness, nonabrasive wear performance, and the lowest coefficient of thermal expansion of all PAI materials. These characteristics give Duratron® T7130 PAI the ability to withstand high pressure environments in off-shore equipment applications, making this grade a reliable choice for long term performance requirements. It can be easily machined to the close tolerance that precision parts require.

Material Properties

Exceptional stiffness and dimensional stability

Non-abrasive wear performance

Lowest coefficient of thermal expansion (CTE)

Chemically and creep resistant

Inherent wear resistance and low coefficient of friction (COF)

Available Geometries

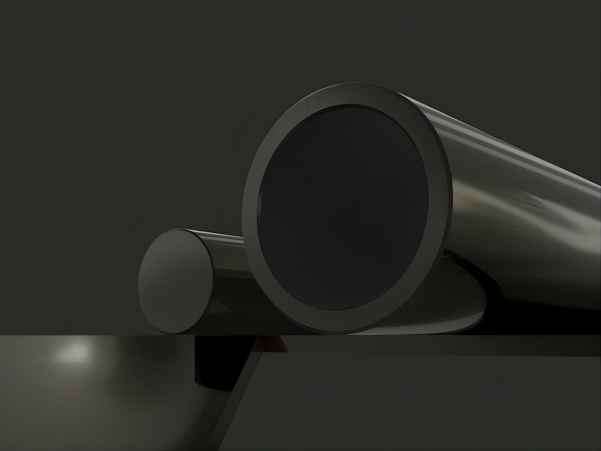

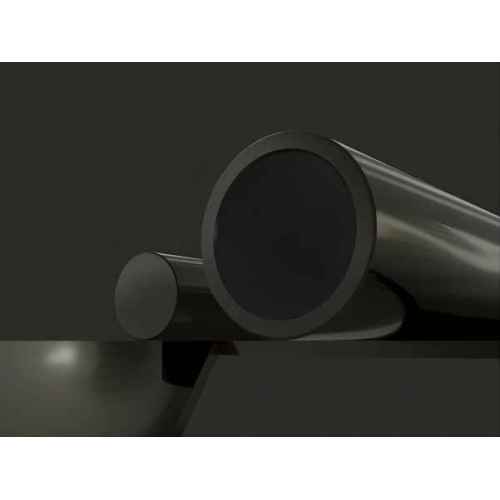

Duratron® T7130 PAI stock shapes encompass a range of standard sizes in the following geometries: Rod, Plate

Available Colors

Duratron® T7130 PAI stock shapes come in the following colors: Black

Key Properties

Thermal Performance to 500°F (260°C) Continuous Use Temp

Carbon Reinforced Grade

Higher Strength and Modulus

Exceptional Creep Resistance

Good Fatigue Resistance

Excellent Dimensional Stability

Lowest Coefficient of Linear Thermal Expansion CLTE of PAI Grades – Close to Steel

Limitations

Duratron® T PAI Grade Materials have a relatively high moisture absorption rate, parts used in high temperature service or made to tight tolerances should be kept dry prior to installation.

Thermal shock resulting in deformation can occur if moisture laden parts are rapidly exposed to temperatures above 400°F (205° C).

Chemical Resistance to Strong Bases, Steam and Some High Temperature Acids

Applications

Aerospace Components

Gears

High Strength High Pressure Structural Components

Housings

Impellers

Metal Replacement

Oil & Gas Components

Pistons

Shrouds

Sliding Compressor & Pump Vanes
