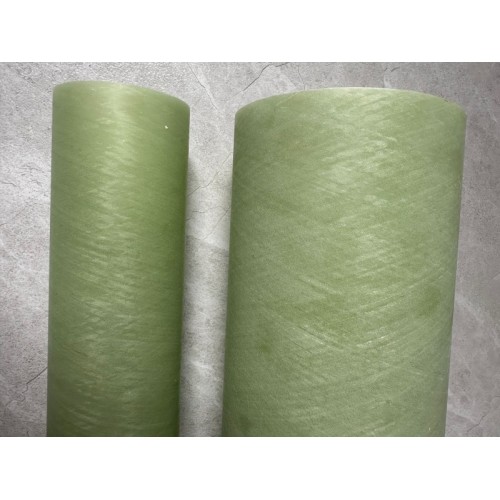

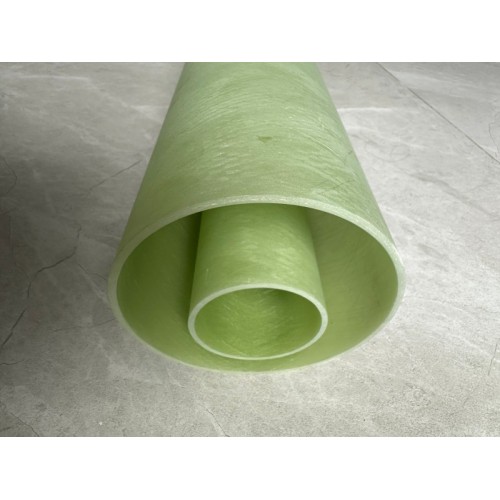

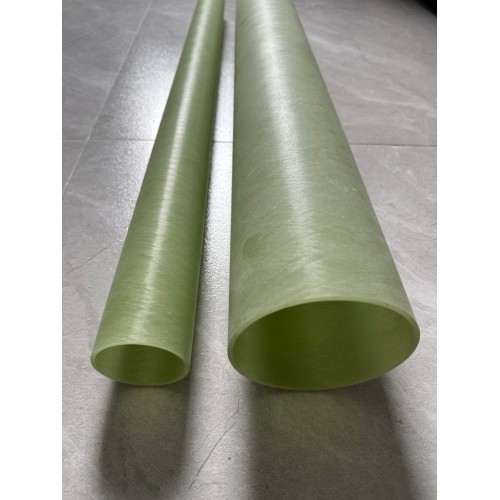

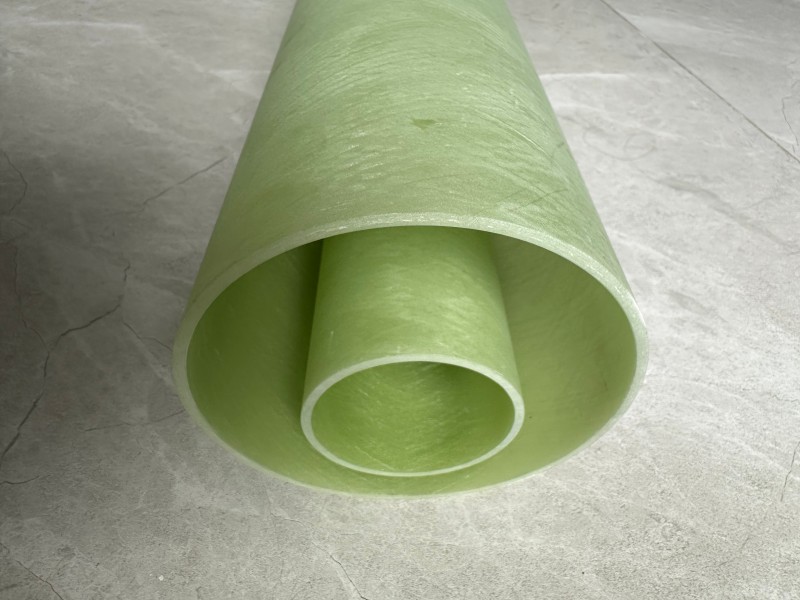

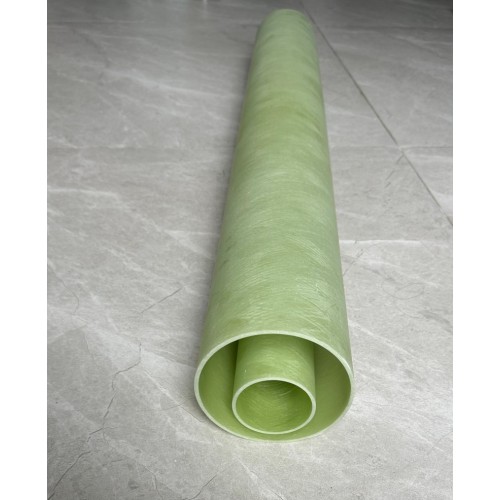

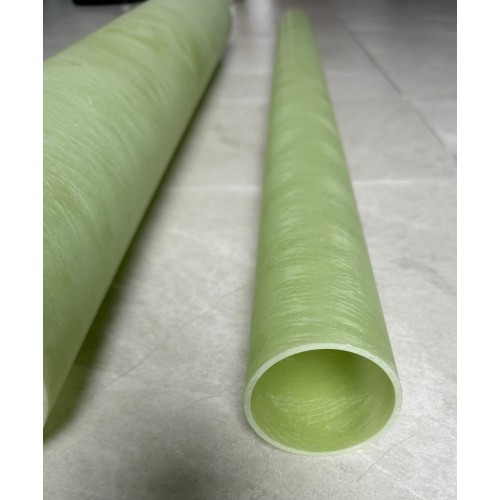

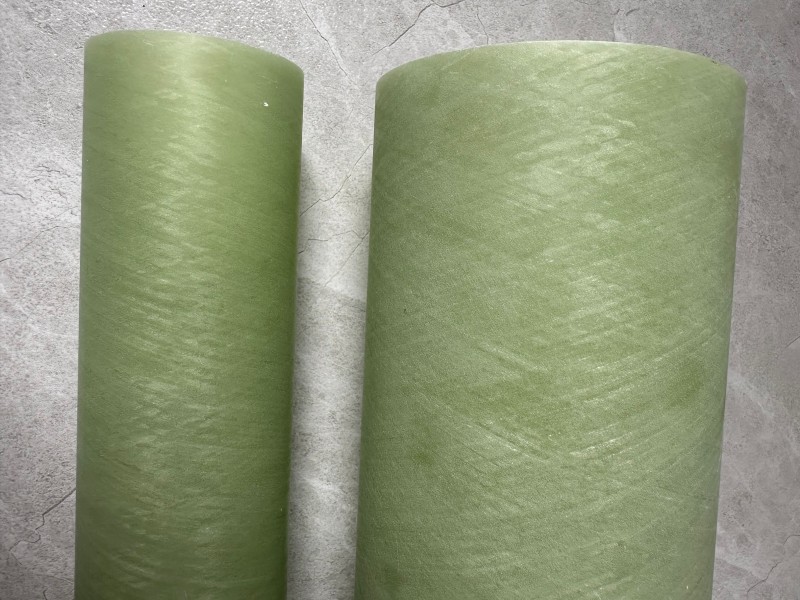

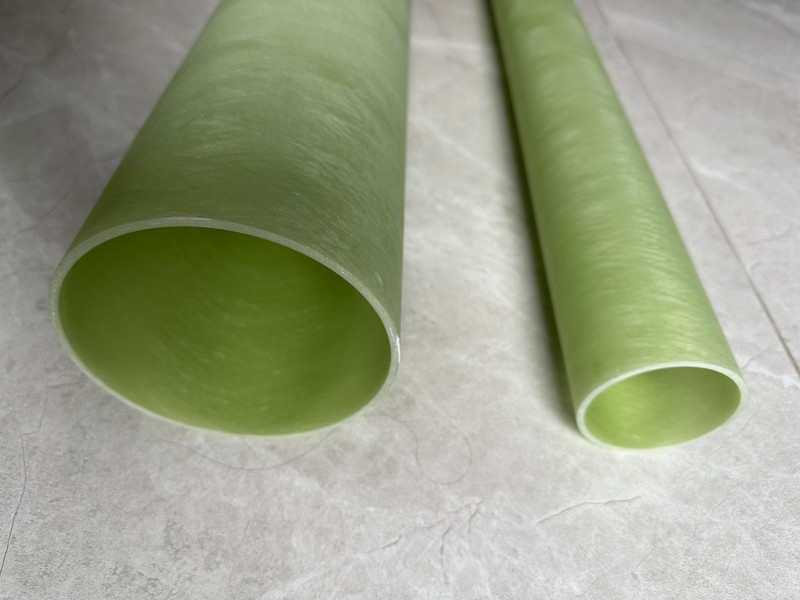

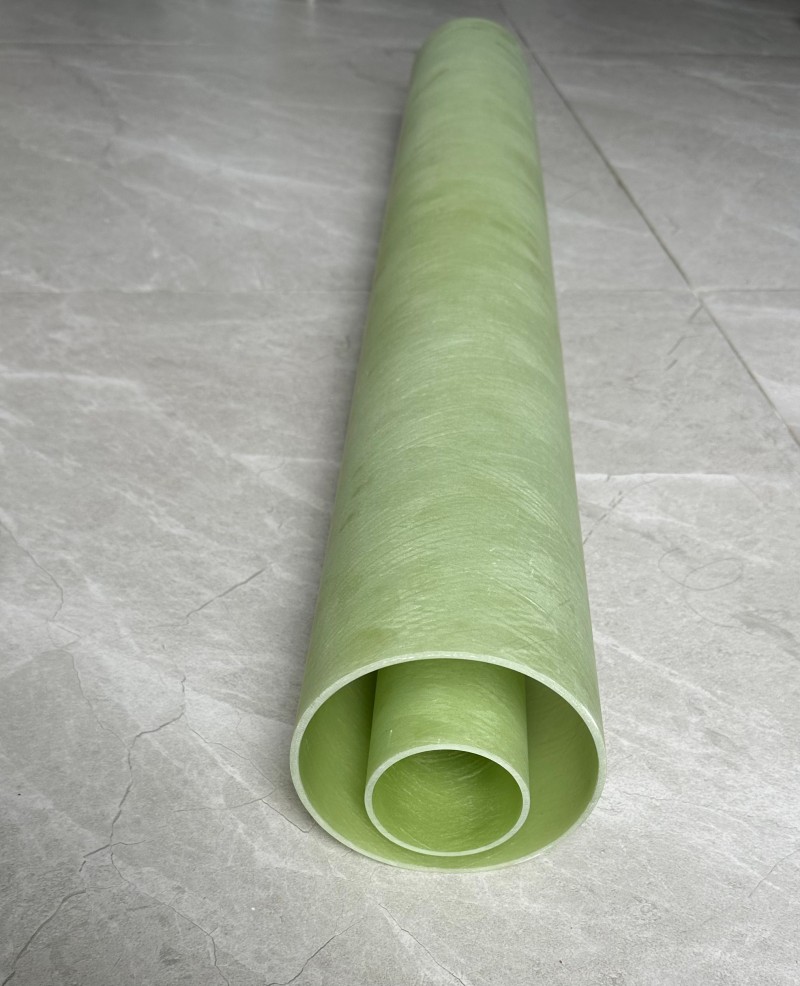

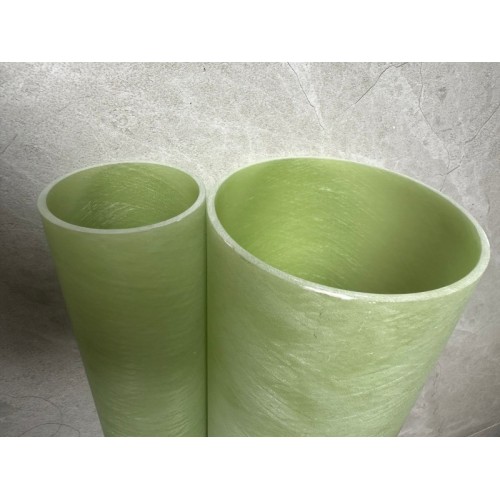

FR4 G10 PHENOLIC TUBE pipe

Get Latest Price

Min. Order:: 1 Meter

Min. Order:: 1 Meter

Transportation:: Ocean, Land, Air, Express

Port:: Shenzhen, Hongkong, Guangzhou

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Supply Ability:	1000
Payment Type:	T/T,Paypal
Incoterm:	FOB,CFR,CIF,EXW,DDP,DDU
Transportation:	Ocean,Land,Air,Express
Port:	Shenzhen,Hongkong,Guangzhou

Product Description

FR4/G10 phenolic tubes are composite materials made of woven fiberglass cloth and epoxy resin, known for their high strength, excellent electrical properties, and dimensional stability. FR4 is a flame-retardant version of G10. These tubes are used in various applications, including electrical insulation, structural components, and where high strength and low moisture absorption are needed.

Key Characteristics:

High Strength:

FR4/G10 tubes offer a high strength-to-weight ratio, making them suitable for demanding applications.

Excellent Electrical Properties:

These tubes have good dielectric loss and electric strength properties, both wet and dry, making them ideal for electrical insulation.

Low Moisture Absorption:

FR4/G10 tubes exhibit minimal water absorption, which contributes to their stability and reliable performance in humid conditions.

Dimensional Stability:

They maintain their shape and size well, even under varying temperature and humidity conditions, making them suitable for precision applications.

Flame Retardant:

FR4, specifically, is flame retardant (self-extinguishing), meeting UL 94V-0 standards.

Applications:

Electrical and Electronic Applications:

Used as insulators in circuit boards, terminal boards, standoffs, and other components.

Mechanical Applications:

Employed in structural components, spacers, bushings, and other parts requiring high strength and dimensional stability.

High-Voltage Applications:

Used in high-voltage cable protection tubes, transformer insulation, and other applications where electrical insulation is critical.

Other Applications:

Used in fishing rods, pole vaulting poles, and other sporting equipment due to their strength and flexibility.

G10 vs. FR4:

While both are based on fiberglass and epoxy, FR4 is the flame-retardant version of G10. FR4 is designed to meet UL94V-0 flammability standards, while G10 does not have this requirement. In many cases, FR4 can be used as a substitute for G10, especially when flame retardancy is not a primary concern
