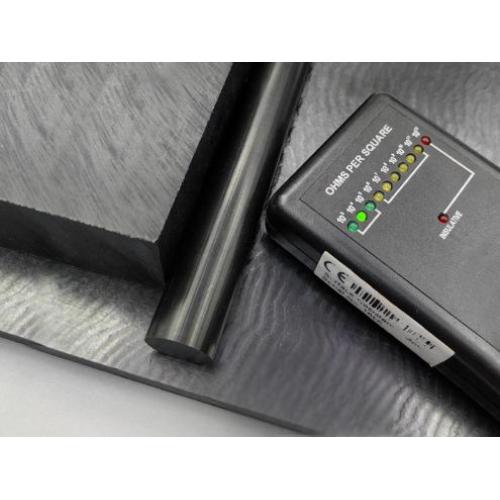

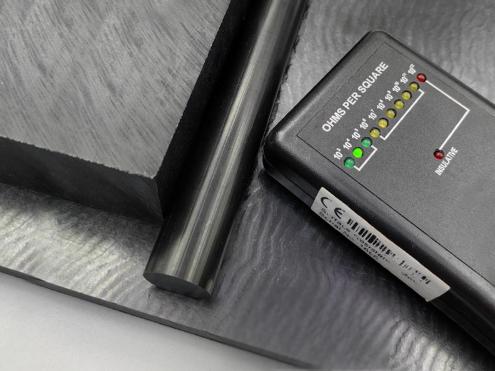

Conductive PTFE Sheet and Rod Materials

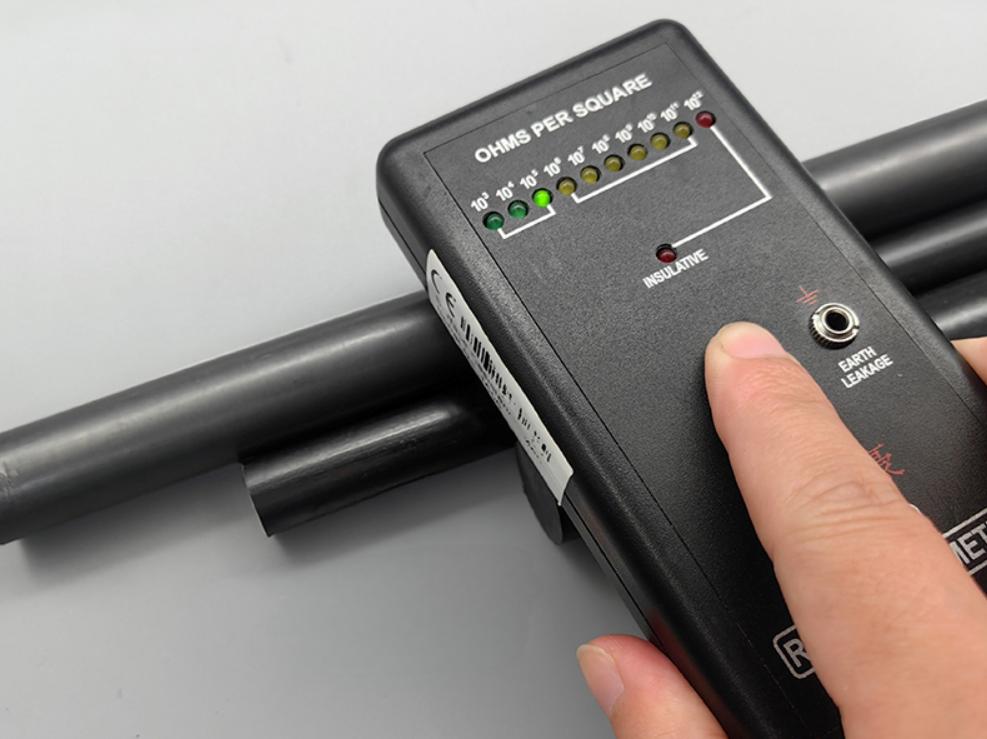

Conductive PTFE sheet and rod materials are extruded profiles produced using high-end conductive fillers to modify PTFE (polytetrafluoroethylene) plastic through square or circular die heads, typically black in color. Conductive PTFE sheet and rod not only retain the excellent mechanical properties, heat resistance, and creep resistance of PTFE resin but also enhance anti-static performance in high-temperature environments. The surface resistivity ranges from 1E3 to 1E5 ohm-seconds, with a long-term operating temperature of 200°C. Conductive PTFE sheet and rod materials are widely used in high-temperature environments for products subjected to high stress, fatigue stress, or impact stress, such as semiconductor fixtures, components of semiconductor liquid crystal manufacturing equipment, clamps in wafer processing, dust covers for cleanroom equipment for sensitive electronic components, and electronic semiconductor transportation equipment.

PTFE Material Properties:

PTFE (polytetrafluoroethylene) is a basic fluoropolymer material renowned for its unique properties, including chemical resistance, heat resistance, weather resistance, low friction, non-stick properties, and electrical insulation. These characteristics have been widely recognized across various industries, accounting for over 60% of the total demand for fluoropolymers. PTFE is extensively used in applications such as corrosion protection, sealing, insulation, anti-adhesion, high-temperature resistance, and medical applications.

Thermal Resistance: It can be used in a wide temperature range from -200°C to 260°C, with a short-term maximum temperature of up to 300°C;

Mechanical Properties: Relatively low strength/stiffness, high density;

Abrasion Resistance: Possesses an unparalleled low friction coefficient among plastics;

Chemical Resistance: Resistant to most chemical reagents and solvents, physiologically inert.

Flame-retardant performance: Oxygen index of 95%, meets UL94 V-0 flame-retardant rating;

Electrical properties: Low and stable dielectric constant, exhibiting excellent insulation properties;

Non-stick properties: Extremely low surface tension (almost no materials adhere to PTFE, making it difficult to bond or weld), with outstanding non-stick and release properties.

Weather resistance: Suitable for long-term outdoor use, with good resistance to sunlight, wind, rain, and exhaust gases.

PTFE Conductive Plate Rod Material Properties

Excellent electrical conductivity with stable resistance;

Uniform black color with a glossy finish, no outgassing, no powder shedding, clean and hygienic;

Good mechanical properties, low friction coefficient, non-stick;

High-temperature resistance, low-temperature resistance, wide operating temperature range;

Acid and alkali resistance, chemical resistance, oxidation resistance, weather resistance, non-toxic and harmless

PTFE Plate Application Areas

Electronics Industry: Battery electrodes, connectors and sockets, coils, fuses, printed circuit board clamps, wires and cables.

Electronics and Semiconductors: Semiconductor fixtures, components for semiconductor liquid crystal manufacturing equipment, fixtures and carriers for wafer processing, electronic semiconductor transportation equipment, thermal insulation parts, 5G high-frequency applications.

Medical and food industry: Food production equipment, steam cleaning equipment, medical equipment (steam-resistant), pharmaceutical equipment.

Transportation and aviation sector: Bridge bearings, anti-adhesive materials for tracks.

Mechanical and chemical engineering sector: Precision bearings, mechanical load-bearing components, wind power equipment or new energy battery components, electrical systems.

Petrochemical industry: Piston rings, oil seals, seals, gaskets, valves, pump components, accessories, hopper rings.

Conductive PTFE Sheet Dimensions and Specifications

Project	Thickness	Width	Length	Color	Density	Flame Retardant Performance	Surface Resistivit	Volume Resistivity
Units	mm	mm	mm	-	g/cm3	-	Ω/sq	Ω/cm
Value	4-300	600	600	Black	2.2	V-0	1E3-1E5	1E3-1E5
Value	4-300	1000	1000	Black	2.2	V-0	1E3-1E5	1E3-1E5
Value	4-300	1200	1200	Black	2.2	V-0	1E3-1E5	1E3-1E5
Value	4-300	1000	2000	Black	2.2	V-0	1E3-1E5	1E3-1E5

Conductive PTFE Sheets are available in a variety of sizes and specifications. Full sheets can be cut to size, and custom sizes can be made to order. Weight estimate (in grams) = thickness * width * length * density * 0.001

Item	Diameter	Length	Color	Density	Flame Retardant Performance	Surface Resistivity	Volume Resistivity
Units	mm	mm	-	g/cm3	-	Ω/sq	Ω/cm
Value	4-300	100-3000	Black	2.2	V-0	1E3-1E5	1E3-1E5

Hony Plastic PTFE (polytetrafluoroethylene) rod stock is available in a variety of standard sizes and can be custom-cut to your specifications. Weight estimation (in grams) = diameter × diameter × 3.14 × length × density × 0.001/4.
