Product Description

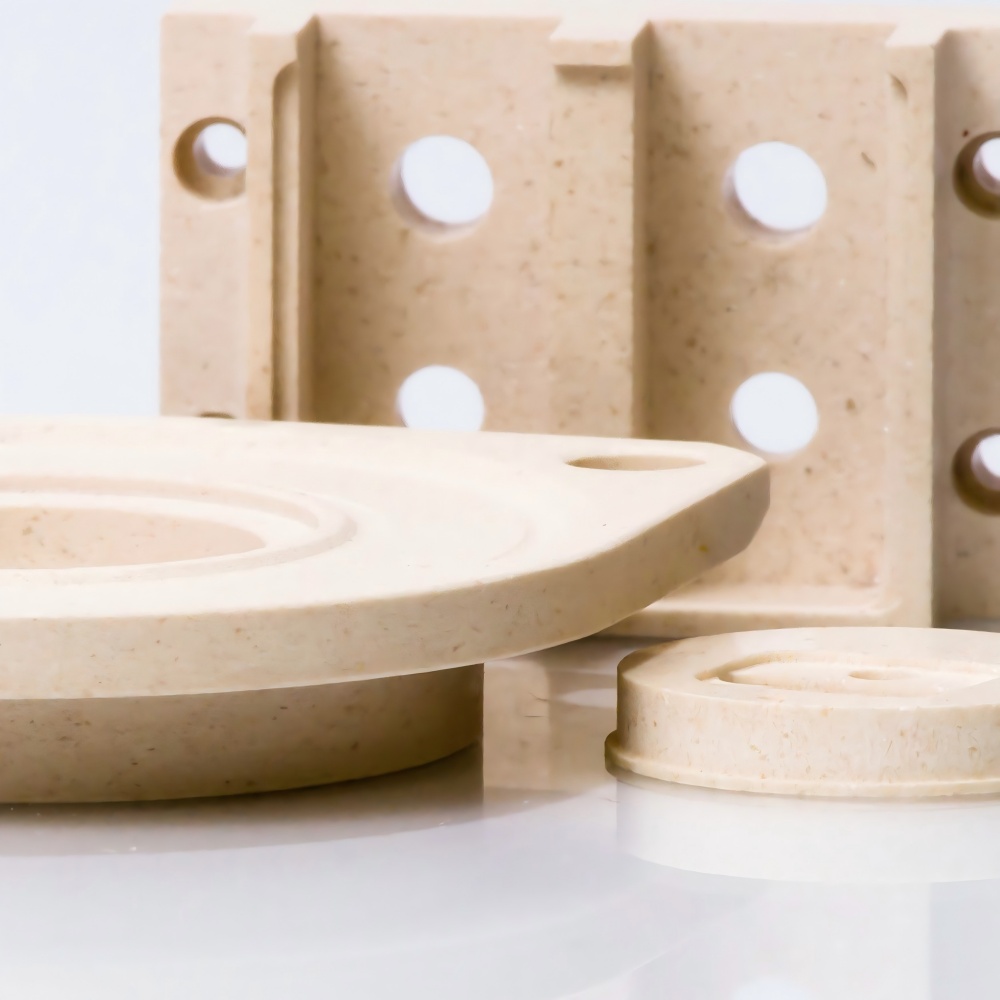

Mykroy / Mycalex (MM) is a dense ceramic material, comprised of a combination of mica and glass. Like many ceramic materials, it is an excellent insulator, and it is frequently used as a superior alternative to high performance plastics; it is harder than most plastics, but softer than most ceramic materials. It does not degrade from moisture, and has good dielectric strength and dimensional stability at high heat. As a high-performance technical ceramic, this material is used in a number of unique applications throughout the aerospace and defense industry, as well as many others.

While MM components that are not tightly toleranced can be isopressed or produced through other means, Mykroy / Mycalex is a material that allows for extremely tight-toleranced components to be machined if proper techniques are applied to the material. Mindrum Precision has extensive experience in making this material, and has extensive experience in all grades, from MM400 to MM1600.

Related Materials

Alumina – Harder, more corrosion resistant ceramic excellent mechanical properties.

Macor – Easily machinable ceramic with good thermal insulation properties

Aluminum Nitride – Harder, denser ceramic with good electrical resistivity

Crystex Products Advantages

Fully inorganic, non-Flammable, does not burn, out-gas carbonized.

High arc resistance.

High dielectric strength and low electrical loss.

Low thermal conductivity making Mykroy/Mycalex an excellent thermal insulator.

Withstands thermal cycling.

Exceptional dimensional stability throughout the usable temperature range for each material grade.

Impervious to moisture, oils, and gasses.

Does not age – has an unlimited shelf life.

Can accommodate metal inserts during molding,

Can be molded into complex shapes.

Can be drilled, bored or tapped with standard carbide tooling, water or a water-based lubricant.

No Post firing after molding or machining.

Vacuum-tight in both machined and molded forms without metal inserts.

Can be bonded to other Mykroy/Mycalex pieces using epoxy, ceramic adhesive or sealing glass.

Moldable and machinable similar to plastics.

Applications

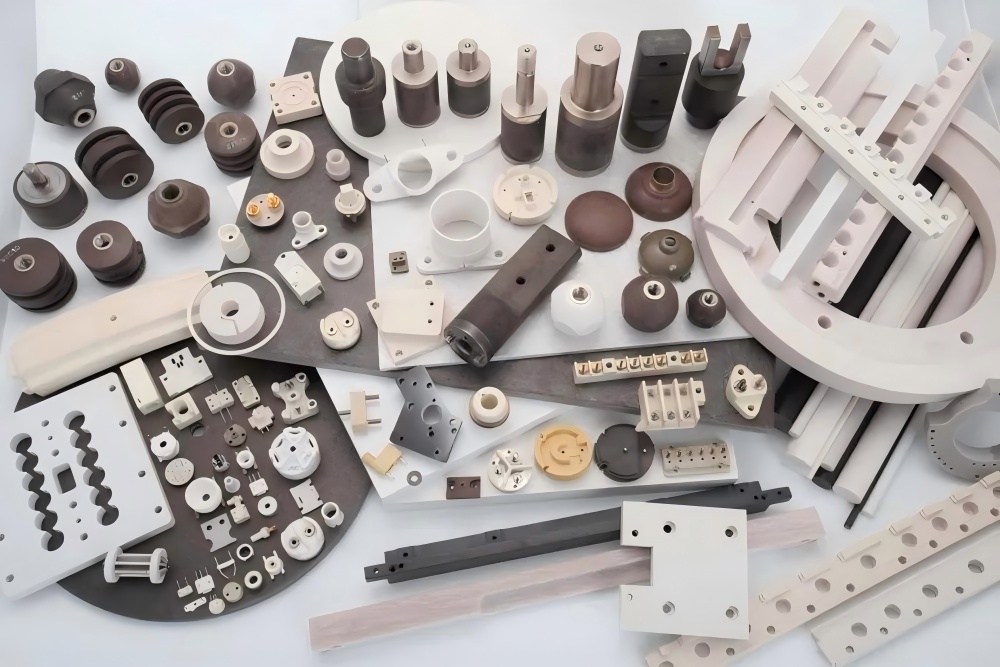

As a versatile material (sometimes referred to as a cermopastic), MM components are used in many applications, from defense and aerospace, to semiconductor, to medical, and many others. The multiple grades of MM from 400 to 1600 allow for different attributes to be selected for different applications, so that engineers can get exactly what they need out of components machined from this material.

Mykroy/Mycalex® is available in machineable grades suitable for processing with standard carbide tools and water (or a water-based lubricant) and in moldable grades that do not require firing or sintering after molding. As a result, the material can accommodate metal inserts during molding similar to thermoplastics. Mykroy/Mycalex® does not burn or outgas. The material is dimensionally stable at temperatures ranging from -240°C to 800°C.

Mykroy/Mycalex® is the only fully inorganic material to bridge the performance gap between high-performance plastics and structural ceramics. Mykroy/Mycalex® glass bonded mica ceramic is a simultaneous union under high pressure and temperature of the finely powered electrical quality glass and precisely defined (natural or synthetic) mica. The resulting stone-like, dense ceramic material inherits all of the insulating advantages of both components.

Mykroy/Mycalex® materials at Port Plastics, a game-changing fusion between the resilience of ceramics and the versatility of high-end polymers. Designed to meet the rigorous demands of industries ranging from semiconductor to aerospace, Mykroy/Mycalex® stands out with its exceptional thermal and electrical properties, surpassing those of most organic plastics.

BRIDGING MATERIALS: Mykroy/Mycalex® merges high-end polymers with ceramics, offering a unique solution with a coefficient of thermal expansion close to metals. Ideal for precision applications requiring stability.

SUPERIOR PROPERTIES: Features electrical and thermal properties surpassing most organic plastics. Ensures reliability and performance in demanding environments.

MACHINABILITY AND DURABILITY: These dense, rigid materials are easily machined to meet precise specifications, impervious to moisture, arc resistant, and withstand thermal cycling and nuclear radiation.

HIGH TEMPERATURE RANGE: Operates continuously from -330°F to 1470°F, accommodating extreme temperature applications. Available in MM400, MM500, MM600, and MM800 grades for varied heat requirements.

NON-OUTGASSING: Unlike organic materials, Mykroy/Mycalex® does not out-gas, smoke, or burn, making it suitable for cleanroom applications in the semiconductor industry and beyond.

ARC AND MOISTURE RESISTANCE: Offers exceptional arc resistance and is unaffected by moisture, enhancing its utility in electrical and electronic applications.

CUSTOMIZABLE FORMS: Produced in sheet, rod, and machined parts to precise customer specifications, ensuring versatility and adaptability across industries.

Engineered for excellence, Mykroy/Mycalex® materials boast superior machinability, allowing for the creation of precise components that are dense, rigid, and impervious to moisture. Their arc resistance and ability to withstand thermal cycling and nuclear radiation further extend their applicability across critical and high-stakes settings. Notably, these materials stand as a paragon of safety and cleanliness, exhibiting zero out-gassing, smoke, or combustion, ideal for sensitive and sterile environments.

Choose Mykroy/Mycalex® for your next project and leverage the unmatched combination of ceramic's durability and polymer's flexibility. Hony Plastics is proud to supply this innovative material in various forms, including sheets, rods, and custom-machined parts, to meet and exceed precise industry specifications. Elevate your project's performance with Mykroy/Mycalex® – where engineering meets excellence.
