CIP composite sheet tubes

Columbia Industrial Products offers multiple textile, lubrication and resin combinations to provide the most suitable material for your application. Below are the most common CIP Composite material grades. Our dedicated team will help you choose which CIP material will best fit your specific application, taking into consideration the type of environment (wet/dry, dirty/caustic), amount of load, speed of moving parts, and temperature among other factors.

CIP HYDRO
Specifically designed for Hydro Power environments
Tested by PowerTech Labs and approved by the US Army Corps of Engineers
Replaces bronze, polyurethanes, nylon, oil lubricated babbitt and wood

CIP MARINE
Specifically developed for marine environments
ABS and RINA approvals for rudder and stern tube bearings
Replaces bronze, polyurethanes, nylon, oil lubricated babbitt and wood

TEROTUF
Knife and gun grip material
Available in 12 colors
Weather tested by Ochs Sherworx

100 SERIES MATERIALS
CIP 100 series materials offer the widest range of lubricant options and support most applications.

CIP101
No lubrication
Designed for static applications
Commonly used as an electrical insulator
Low cost
CIP111A
Ideal for indoor applications
Low maintenance
Cost effective
CIP121A
Good load capacity
Good wear performance
Commonly used as wear pads, thrust washers and bushings
CIP131A
Stable in hydraulic fluids
Chemically resistant
#1 CIP material for hydraulic wear rings. Also commonly used in food processing equipment requiring harsh chemical wash downs.

CIP151A
Improved chemical resistance
Operating temperatures up to 400°F
Cost effective
CIP153A
Operating temperatures up to 400°F
Chemically resistant
CIP133A
Improved chemical resistance
Operating temperatures up to 400F
CIP152A
Excellent stability and strength
Works well in saltwater environments
Special blend originally designed for the oil and gas industry.

200 SERIES MATERIALS
CIP 200 series material provide the best tribological performance.

CIP251A
Ideal in high loads
Slow oscillating applications
Linear slide motion applications
CIP252A
Wet environments when sand and silt are present
Common applications include underwater salvage, remotely operated vehicles (ROV) and dredging equipment

300 SERIES MATERIALS
CIP 300 series material provide the best environmental performance.

CIP333A
Best chemical resistance
Operating temperatures up to 400°F
Commonly used in paving equipment, ejection molding and high temperature pumps.

CIP353A
Best chemical resistance
Operating temperatures up to 400°F
Common applications include down hole drilling, high temperature mining, and robotics.

After sheet stock is trimmed and verified for proper size of both length and width, a visual check is performed on all exposed sides to ensure there is no de-lamination of composite. The sheet is then sanded to required thickness and inspected for defects before machining or shipping.

Minimum Thickness 1/8 in.

Maximum Thickness 6 in.

Standard Widths 16 in. – 24 in. – 32 in.

Standard Lengths 24 in. – 36 in. – 48 in. – 60 in.

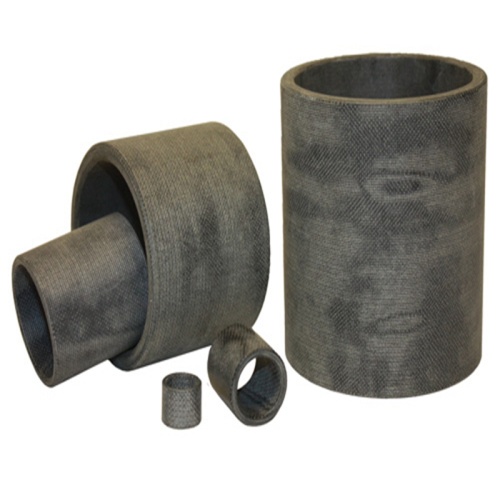

Cip Composite Material Tubes

After trimming to correct length each exposed end is visually inspected for de-lamination.

Measurements of inner diameter, outer diameter and lengths are performed to ensure material is suitable for machine work and secondary operations.

Minimum Bore 1/2 in.

Maximum Bore 65 in.

Standard Lengths 16 in. – 24 in. – 32 in.

Composite Material Sheet Tube Custom Machined Components

CIP offers a fully equipped machine shop on location ready to meet your needs. Components can be manufactured to customer’s drawings. Spherical bearings with stainless steel balls, threaded components and many other custom products can be fabricated.
