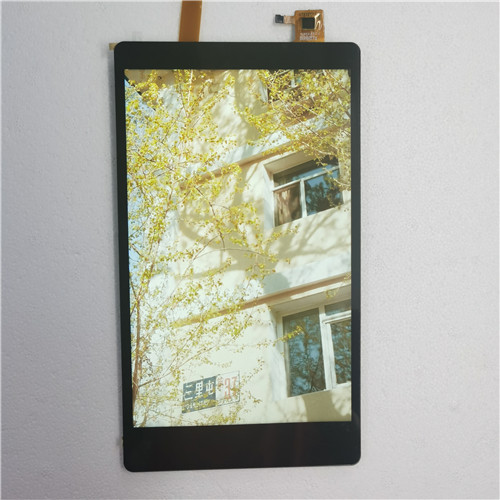

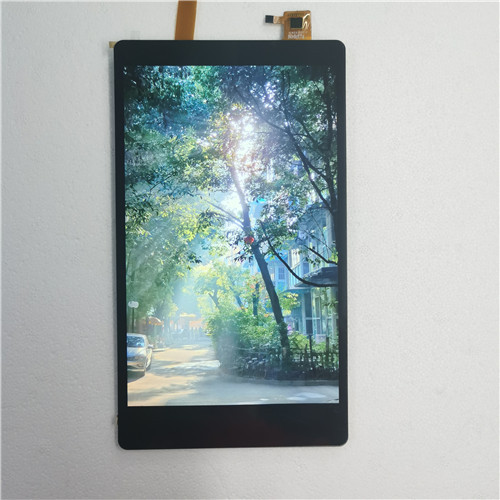

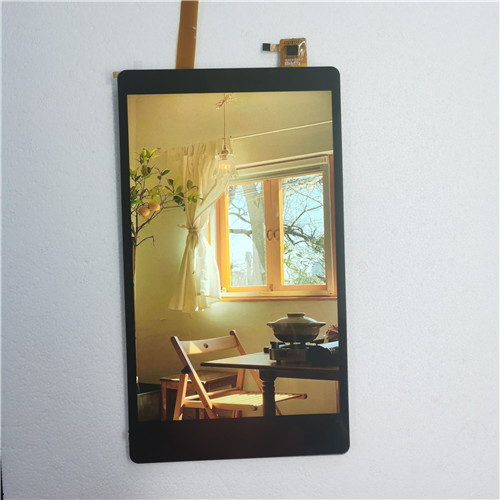

8.0 Inch TFT LCD Display

Get Latest Price

Payment Type:: T/T

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T

Product Description

The LCD module is made up of a mesh of liquid crystals and arrayed in front of a light source (usually at the bottom of the screen) The reflector is used to distribute the light evenly through the screen area. A liquid crystal cell consists of a thin layer (about 10 u m) of a liquid crystal sandwiched between two glass sheets with transparent electrodes deposited on their inside faces. With both glass sheets transparent, the cell is known as transmitting type cell. When one glass is transparent and the other has a reflective coating, the cell is called reflective type. The LCD does not produce any illumination of its own.

ITEM	Sandard value	Unit
Model Number	800018S0-LSS
size	8.0	Inch
LCD Type	Normally black	--
Drive element	TFT active matrix	--
Number of pixels	800*3RGB(H)X1280(V)	Dots
Pixel arrangement	RGB stripe	--
Pixel Pitch (W*H)	0.4485(H) *0.13455 (V)	mm
Active area	107.64(H) * 172.22(V)	mm
LCM Mechanical Outline Size(WHT)	114.6194.12.7	mm
Touch+LCMMechanical Outline Size(WHT)	116.6206.14.63	mm
Viewing direction	ALL O’CLOCK
LCM Driver IC	ILI9881C	-
LCM interface	MIPI Interface	-
Lcm pin n count	31
Backlight leds	30	pcs
Backlight current	220	ma
Backligh voltage	9.6	v
Touch screen structure	G+G
Touch Driver IC	GT911	-
Touch Interface	I2C
operating temperature	-20+70	℃
storage temperature	-30+80	℃
Lumens degrees	450	Cd/㎡
