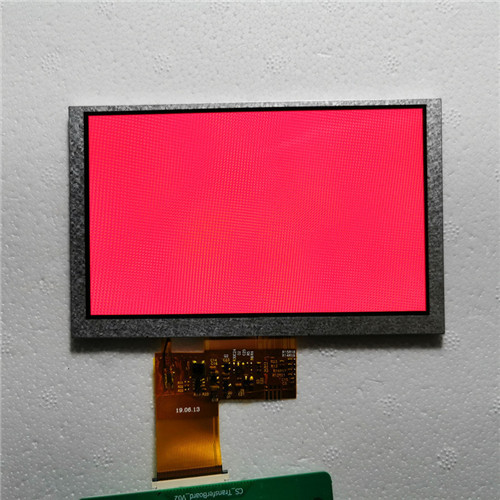

5.5 Inch TFT LCD Display

Get Latest Price

Payment Type:: T/T

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T

Product Description

TFT/LCD is the first book of its kind characterizing thin-film-transistor-addressed-liquid-crystal displays. With chapters and illustrations arranged for easy comprehension, this title begins with a general overview of TFT/LCDs, followed by thorough descriptions of their design, fabrication, characteristics, devices, materials, and basic principles. The topics covered are interdisciplinary to correspond to the diverse fields related TFT/LCDs. The unique features attributed to TFT/LCDs are derived from the combination of amorphous semiconductors and liquid crystals, the two most important materials examined. Device characteristics and materials are discussed primarily in terms of how they relate to display technologies.

ITEM	Sandard value	Unit
LCD Type	Normally black	--
Drive element	TFT active matrix	--
Number of pixels	720*3RGB(H)X1440(V)	Dots
Pixel arrangement	RGB stripe	--
pixel size	85.95 x 85.95	um
Active area	61.88(W) × 123.77(H)	mm
Viewing direction	ALL O’CLOCK	-
TFT Driver IC	ILI9881P-04
TFT interface	MIPI Interface	-
Approx. Weight	TBD	g
Module Size(WHT)	64.22(W) ×130.48(H) ×1.58(T)	mm
Touch structure	--
Touch Driver IC	--	-
Touch Interface	--
