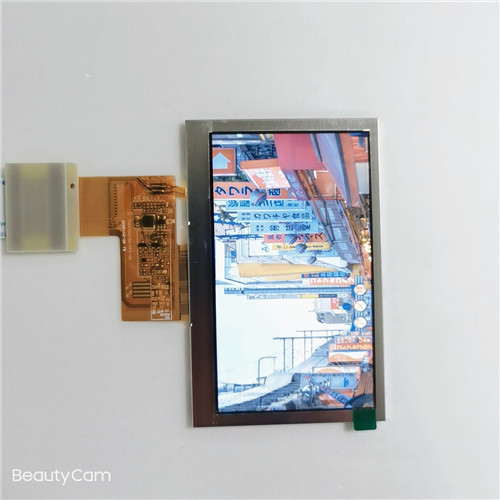

4.3 inch TFT LCD Module Display

Get Latest Price

Payment Type:: T/T

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T

Product Description

4.3 inch TFT LCD Module Display

TFTs are transistors that are currently widely used in electronics such as liquid crystal displays (LCD) and electronic and radio-frequency tags. For example, in an LCD screen, TFTs control individual pixels for high-quality images. TFTs made on flexible substrates could have a variety of applications, says Ma, including flexible and wearable electronics, flexible sensors, large-area surveillance radar, embedded signatures and more.

ITEM	Sandard value	Unit
LCD Type	Normally black	--
Drive element	TFT active matrix	--
Number of pixels	800*3RGB(H)X480(V)	Dots
Pixel arrangement	RGB stripe	--
Pixel Pitch (W*H)	0.1188(H) x0.1122(V)	mm
Active area	95.04(H) x 53.856(V)	mm
Module Size(WHT)	105.40x 67.10 x 3.04	mm
Viewing direction	ALL O’CLOCK
TFT Driver IC	NV3858+NV1057	-
TFT interface	24bit RGB Interface	-
Approx. Weight	TBD	g
Touch structure	--
Touch Driver IC	--	-
Touch Interface	--
