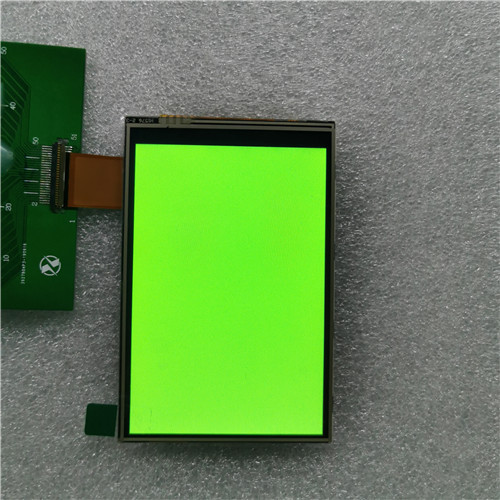

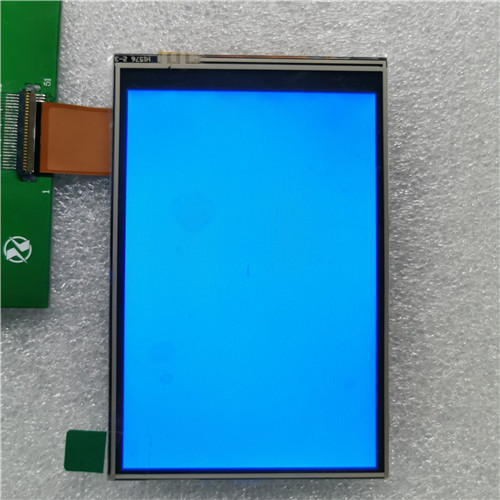

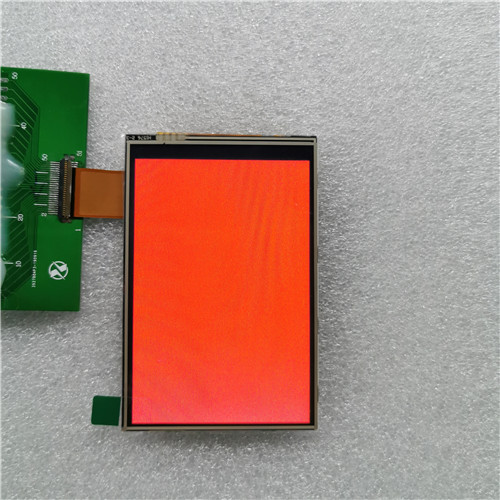

3.5 Inch TFT LCD Screen Display

Get Latest Price

Payment Type:: T/T

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T

Product Description

TFT technology is the basis of liquid crystal (LC), inorganic and organic thin film electroluminescence (EL and OEL) flat panel displays.TFT is a kind of film necessary for manufacturing circuit formed by sputtering and chemical deposition process on non-single wafer such as glass or plastic substrate, and large-scale semiconductor integrated circuit (LSIC) is produced by processing of the film.Using non-single crystal substrate can greatly reduce the cost, which is the extension of traditional lsi to large-area, multi-function and low-cost direction.

Model: 350072C0
Resolution: 320*480
Viewing angle: IPS
Display color: 400 CD/M2
Product structure: LCD+CTP
Product features: high brightness, full viewing angle, square display, touch integration.
Application fields: smart home, 86 box panel, smart switch panel, advertising player, medical equipment, serial port display module, automotive electronics, industrial control equipment, Internet of Things, household appliances, etc.

ITEM	Sandard value	Unit
型号/Model Number	350072C0
尺寸/size	3.5	Inch
显示类型/LCD Type	Normally Black	--
驱动元件/Drive element	TFT active matrix	--
分辨率/Number of pixels	320*3RGB(H)X480(V)	Dots
像素排列Pixel arrangement	RGB stripe	--
像素间距/*Pixel Pitch (WH)**	0.153*0.153	mm
显示区域/Active area	48.96(H) * 73.44(V)	mm
结构尺寸/LCM Mechanical Outline *Size(WHT)*	54.4884.712.2	mm
显示视角/Viewing direction	ALL O’CLOCK	-
驱动IC/LCM Driver IC	ILI9488	-
显示接口/LCM interface	MUC 16 BIT BIT Interface	-
PIN数/Lcm pin n count	40
LED灯数量/Backlight leds	6	pcs
背光电流/Backlight current	20	ma
背光电压/Backligh voltage	18.6	v
工作温度/operating temperature	-20+70	℃
储存温度storage temperature	-30+80	℃
亮度/Lumens degrees	400	Cd/㎡
