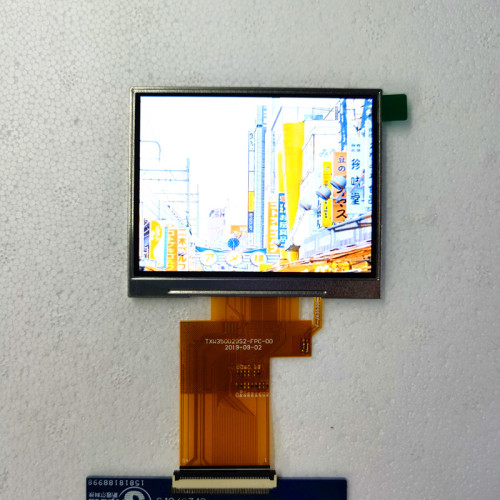

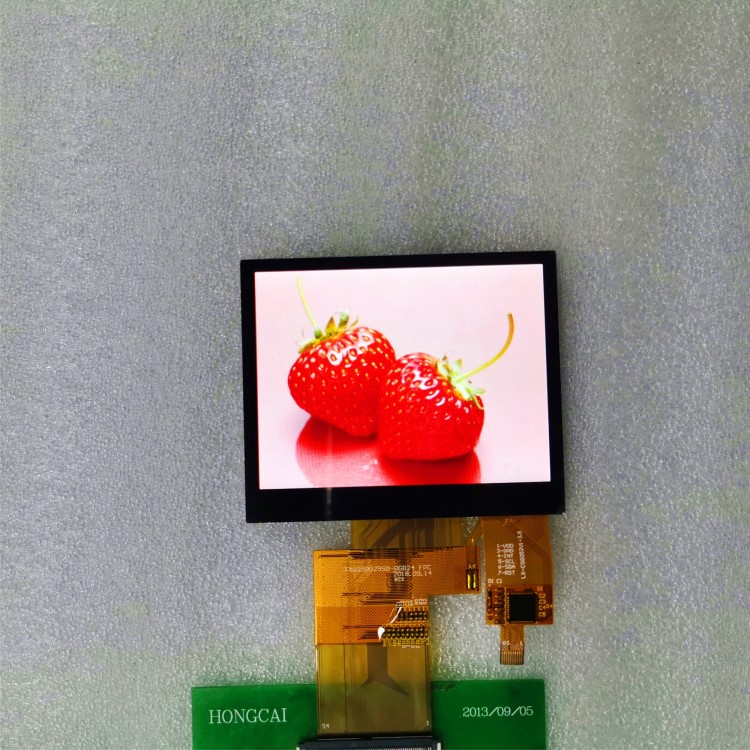

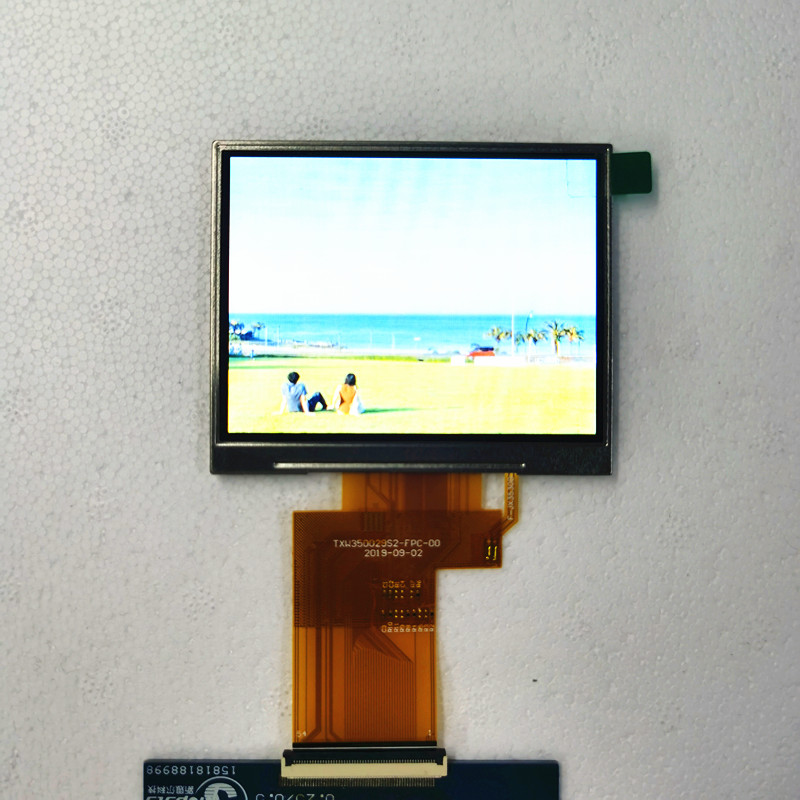

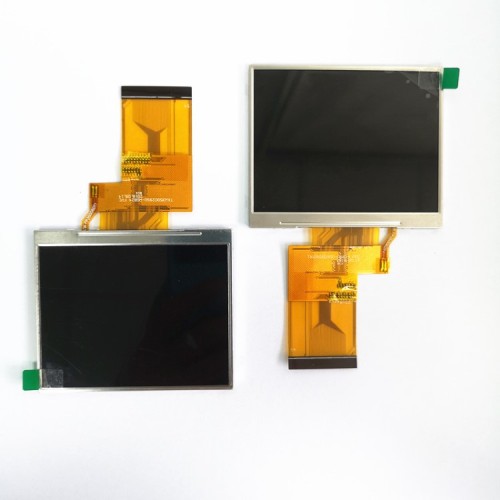

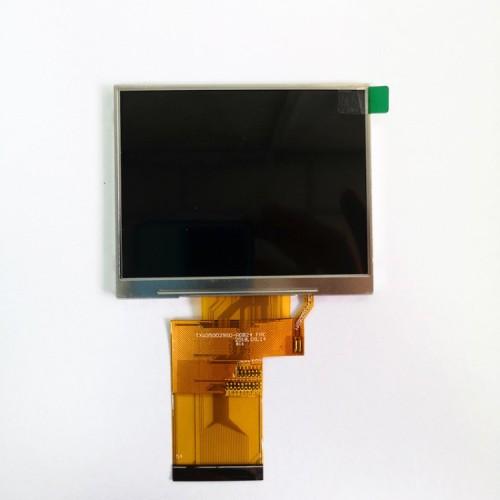

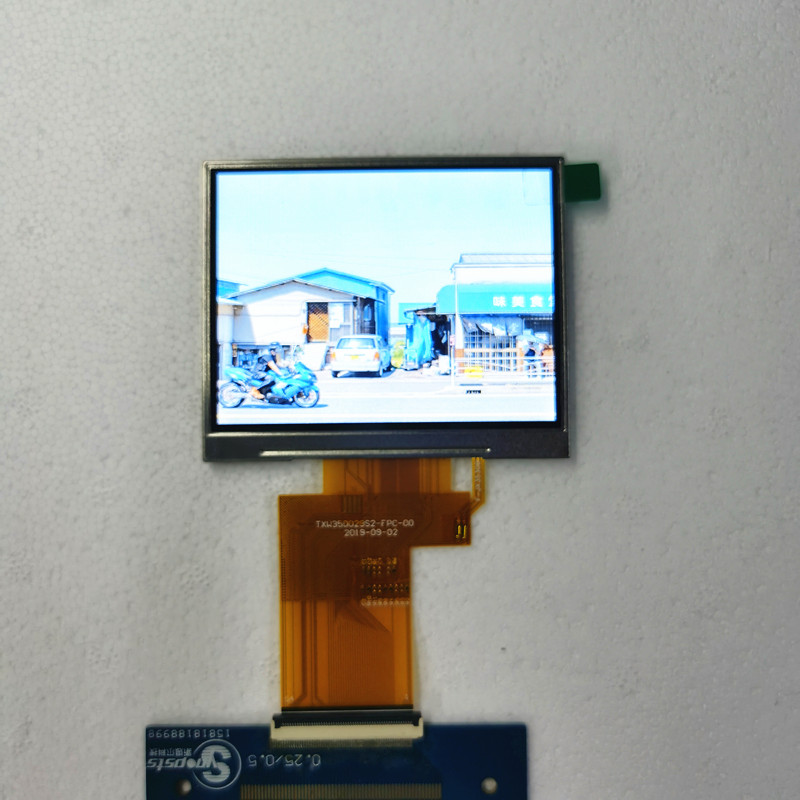

3.5 inch IPS Display Module Screen

Get Latest Price

Payment Type:: T/T

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T

Product Description

Liquid Crystal Display (LCD) Screens

These screens are flat,
need only a small amount of power to run and can be powered by batteries.
They do not weigh as much as ordinary monitors. This means they are ideal for use on laptops and palmtop's.
Liquid crystals work by blocking light reflected from behind, so the screens cannot be read in the dark unless they are backlit

Model: 350029S0
Resolution: 320*240
Viewing angle: IPS
Display color: 16.7M
Product structure: LCD+CTP
Product features: high brightness, full viewing angle, stainless steel upper and lower iron frames, beautiful and versatile
Application areas: game consoles, medical equipment, serial port display modules, handheld PDAs, automotive electronics, industrial control equipment, Internet of Things, white goods, etc.

ITEM	Sandard value	Unit
Model Number	350029S0
size	3.5	Inch
LCD Type	Normally Black	--
Drive element	TFT active matrix	--
Number of pixels	320*3RGB(H)X240(V)	Dots
Pixel arrangement	RGB stripe	--
Pixel Pitch (W*H)	0.219*0.219	mm
Active area	70.08*52.56	mm
LCM Mechanical Outline Size(WHT)	76.8463.843.27	mm
Viewing direction	ALL O’CLOCK
LCM Driver IC	ST7272A	-
LCM interface	RGB	-
Lcm pin n count	54
Backlight leds	6	pcs
Backlight current	20	ma
Backligh voltage	18	v
operating temperature	-20+70	℃
storage temperature	-30+80	℃
Lumens degrees	400	Cd/㎡
