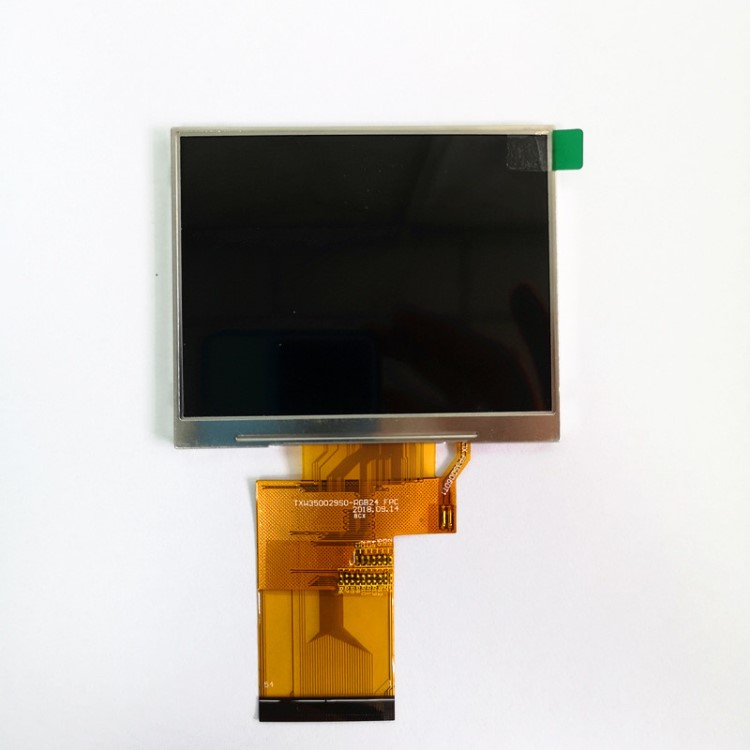

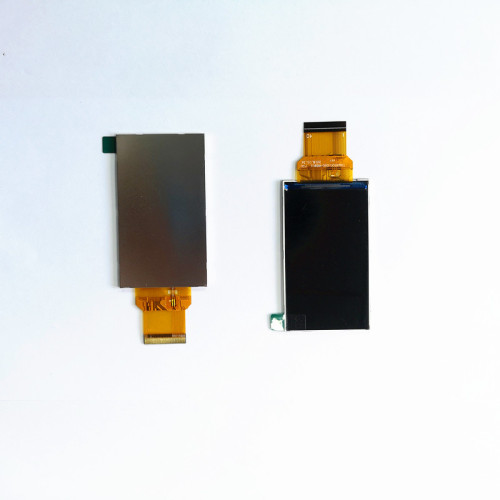

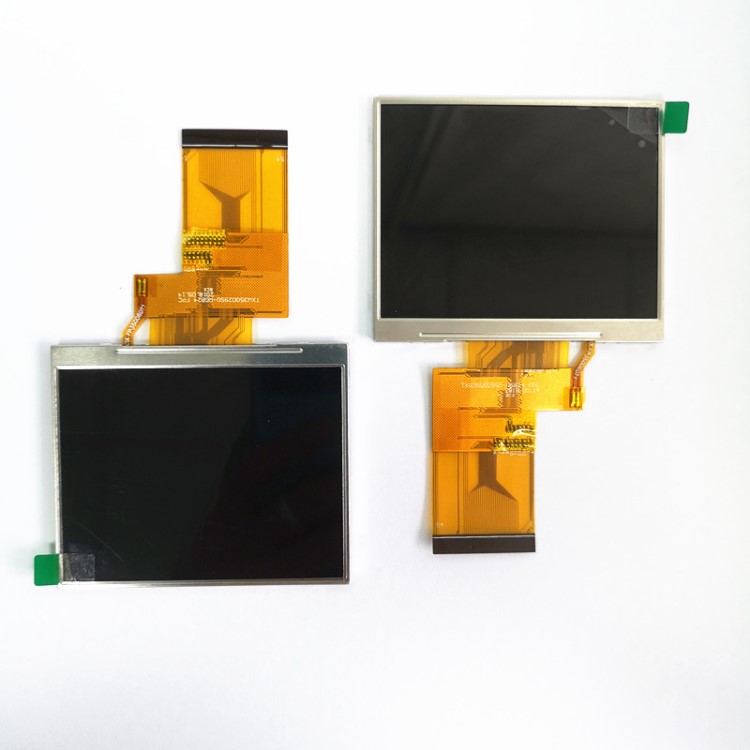

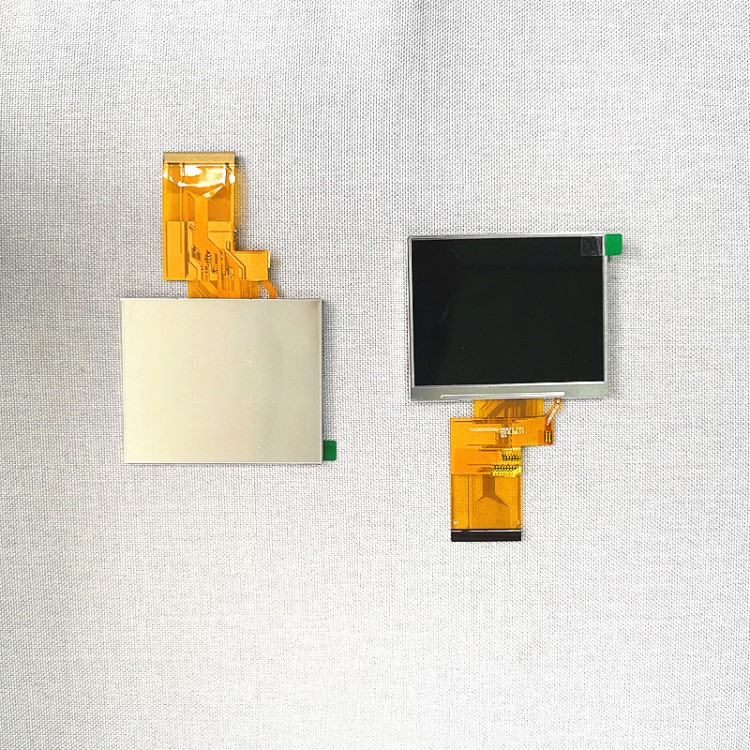

3.0 Inch TFT Display Screen

TFT Display is a thin film transistor type liquid crystal display. TFT liquid crystal is equipped with a semiconductor switch for each pixel, and each pixel can be directly controlled by dot pulses. TFT displays are also known as an “Active Matrix TFT LCD module” and have an array of thin film transistors fabricated on the glass that makes the LCD. There is one of these transistors for each pixel on the LCD.
LCDs use voltage applied to a field of microscopic liquid crystals to change the crystal’s orientation, which in turn changes the polarization of the liquid crystal which creates light or dark pixels on the display.

ITEM	Sandard value	Unit
Model Number	300016S0
size	3.0	Inch
LCD Type	Normally White	--
Drive element	TFT active matrix	--
Number of pixels	360*3RGB(H)X640(V)	Dots
Pixel arrangement	RGB stripe	--
Pixel Pitch (W*H)	0.102*0.102	mm
Active area	36.72(H) * 65.28(V)	mm
TP+LCM Mechanical Outline Size(WHT)		mm
LCM Mechanical Outline Size(WHT)	43.0474.912.25	mm
TP Mechanical Outline Size(WHT)		mm
Viewing direction	ALL O’CLOCK	-
LCM Driver IC	ST7701S	-
LCM interface	MIPI BIT Interface	-
Lcm pin n count	40
Approx. Weight	TBD	g
Touch screen structure
Touch Driver IC		-
Touch Interface
Lumens degrees	400	Cd/㎡
