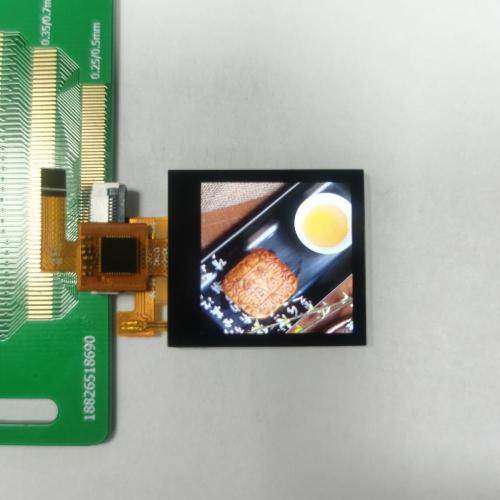

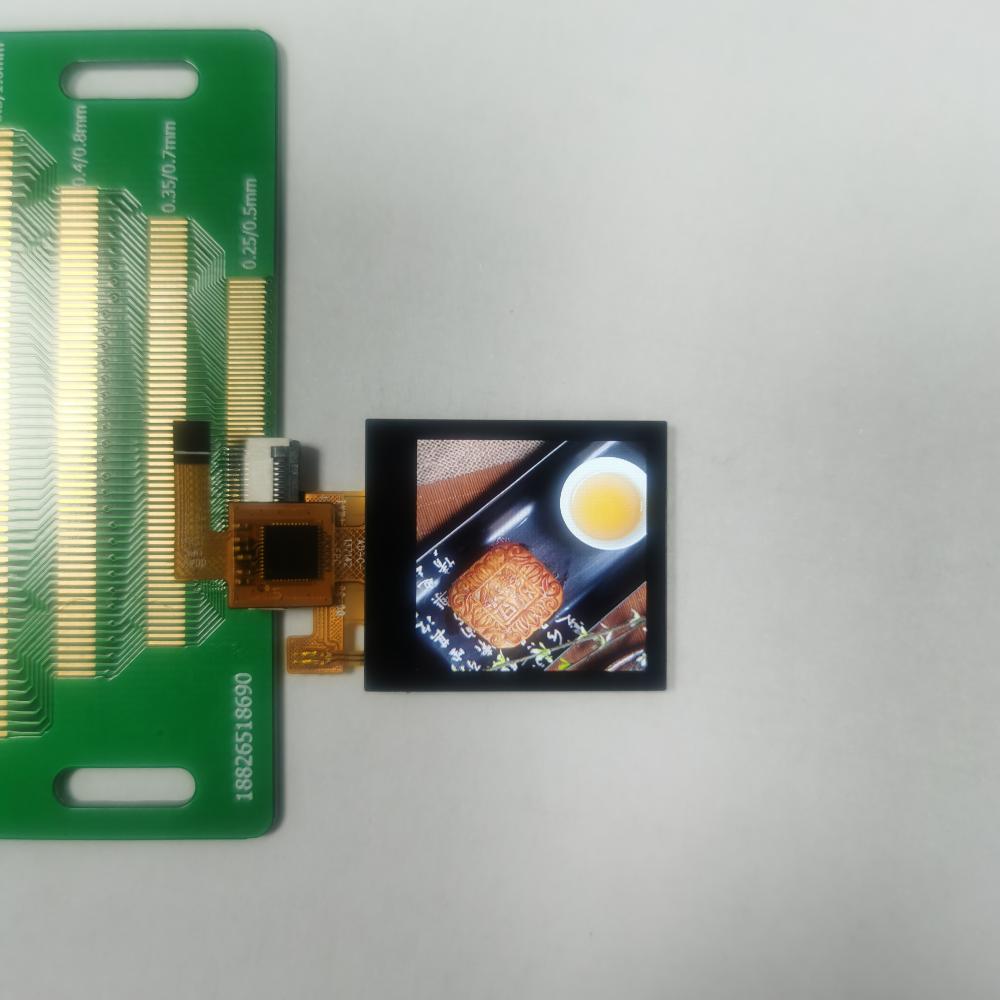

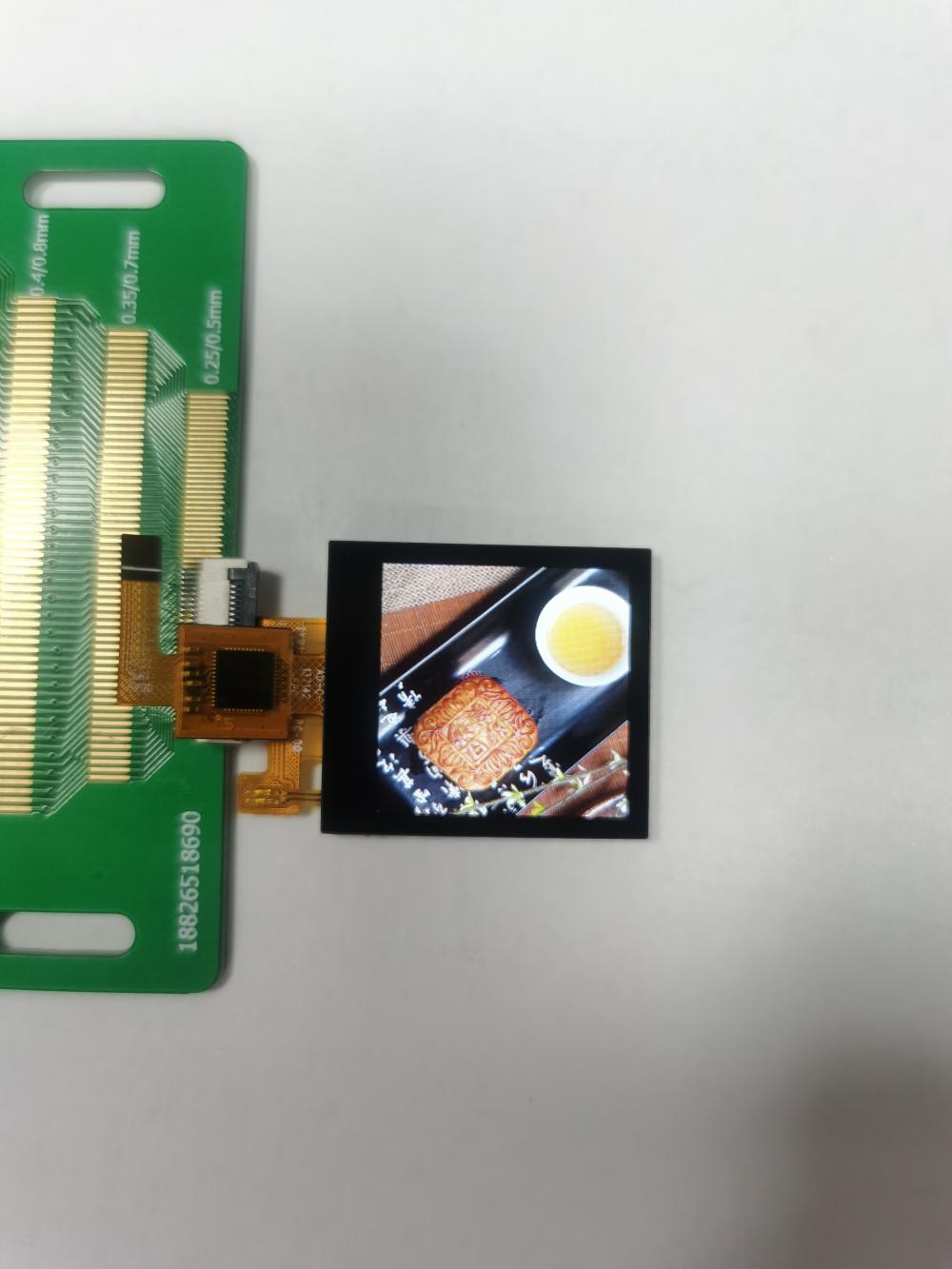

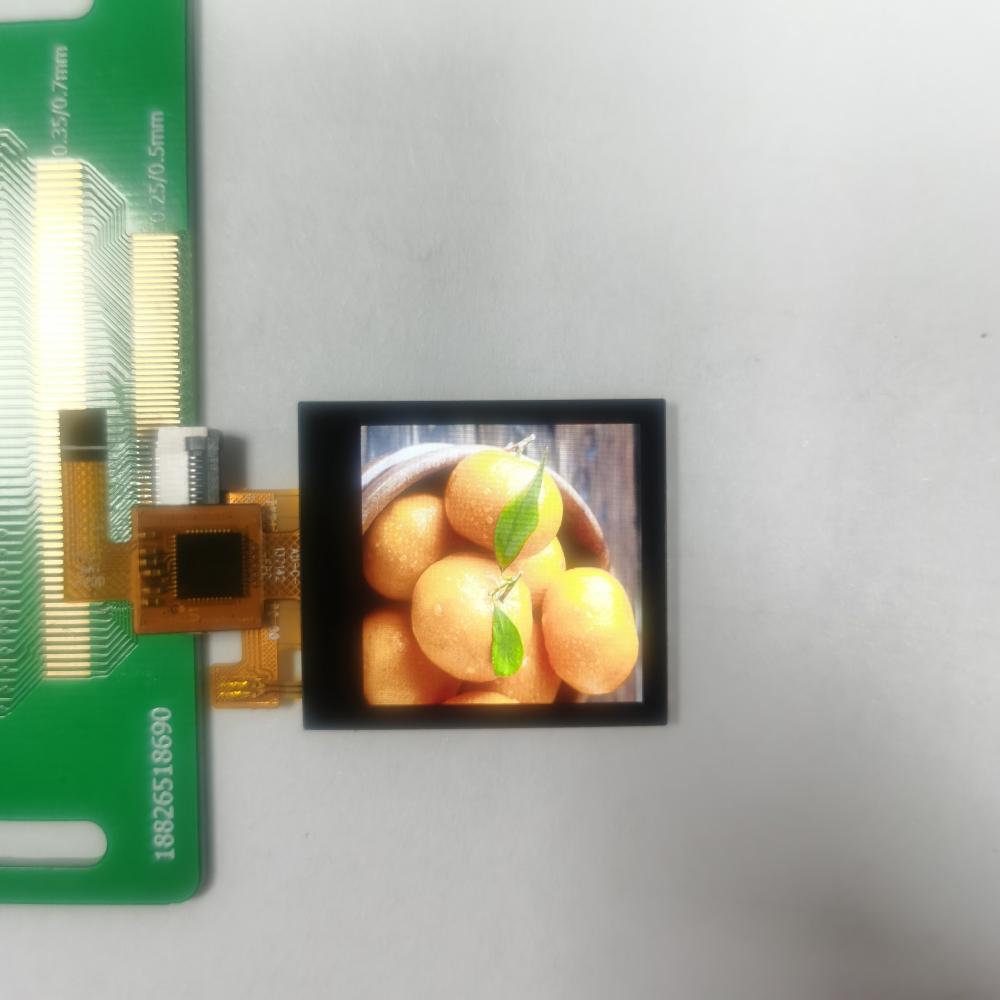

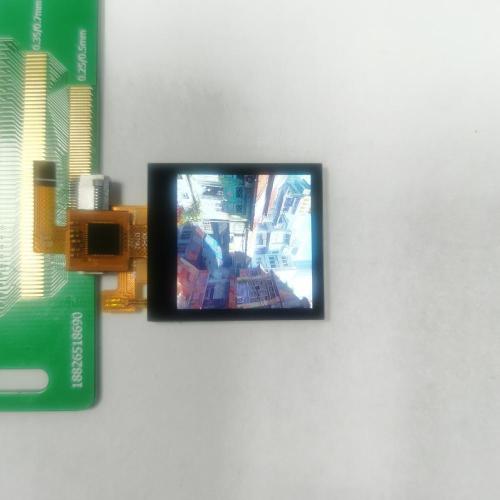

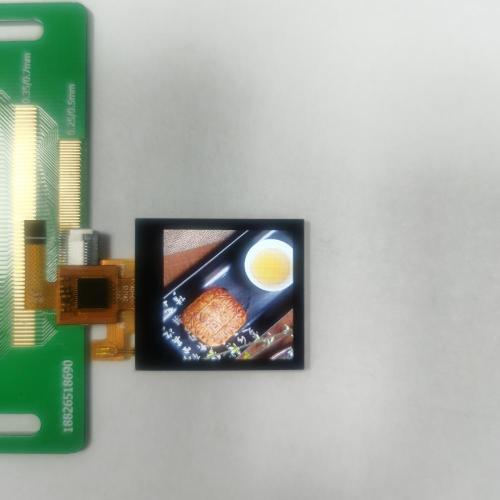

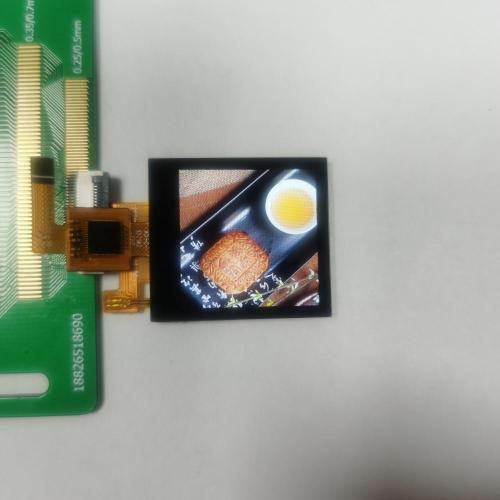

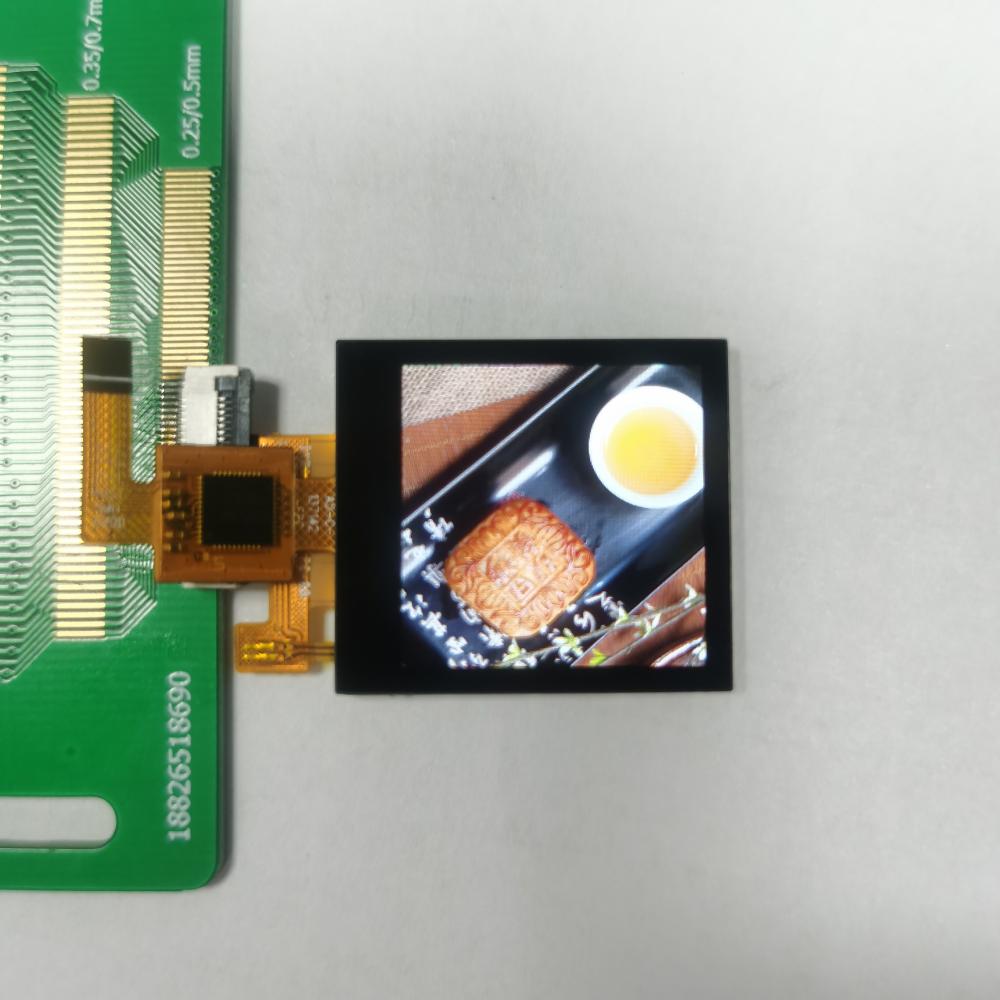

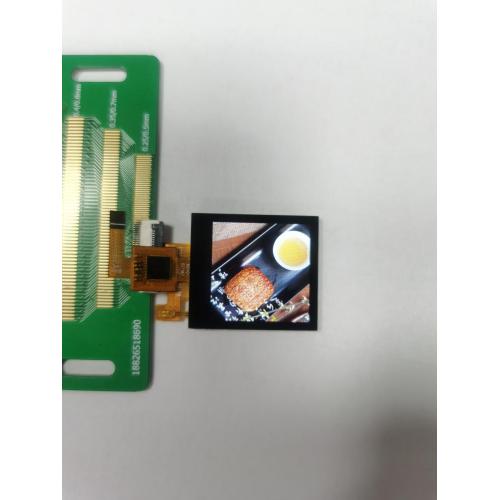

Model: 130013B0
Resolution: 240*240
Viewing angle: IPS
Color: 65K
Features: high brightness, full viewing angle, ultra-thin design with integrated backlight, low power consumption, square structure, etc.
Application: smart wear, children's toys, cameras/smart speakers, medical equipment, digital electronics, etc.

1. Introduction

1.1 Scope of application

This specification applies to the LCD module that is supplied by Tian Xian Wei

Technology CO., LTD.

LCD specification: Dots 240xRGBx240.

As to basic specification of the driver IC, refer to the IC (ST7789V2)

specification and data book.

All material & processing of the LCD module should be Lead Free.

1.2 TFT features:

Structure: TFT PANNEL+IC +FPC+BL+CTP;

IPS Type LCD

240dot-segment and 240 dot-common outputs;

262K Color can be selected by software;

White LED back light;

8bit MCU interfac

1.3 Applications:

2. LCM General specification

ITEM	Sandard value	Unit
LCD Type	Normally black	--
Drive element	TFT active matrix	--
Number of pixels	240(H) RGB × 240(V)	Dots
Pixel arrangement	RGB Vertical Stripe	--
Pixel Pitch (H*V)	0.0975(H) × 0.0975(V)	mm
Active area	23.40(H) × 23.40(V)	mm
Viewing direction	ALL O’CLOCK	-
TFT Driver IC	ST7789V2
TFT interface	8bit MCU interface	-
Approx. Weight	TBD	g
LCM Size(WHT)	26.20(W) ×29.22(H) ×1.46(T)	mm
LCM+CTP Size(WHT)	26.20(W) ×29.22(H) ×2.44(T)	mm
Touch structure	G+F
Touch Driver IC	FT6336U	-
Touch Interface	I2C

3.Absolute Maximum Rating

Characteristics	Symbol	Min.	Max.	Unit
LCM Operating Temperature	T_OPR	-20	+60	°C
LCM Storage Temperature	T_STG	-30	+70	°C
TP Operating Temperature & Humidity(20% ~ 90%RH)	T_OPR	-20	+60	°C
TP SStorage Temperature & Humidity(20% ~ 90%RH)	T_STG	-30	+70	°C
Humidity	RH	-	90	%

4.Electrical Characteristics

4.1 TFT DC Characteristics

Characteristics	Symbol	Min.	Typ.	Max.	Unit	Note
Supply Voltage for(DC/DC)	VDD	2.6	2.8	3.3	V
TFT Gate ON Voltage	VGH	12	--	18	V	1,2
TFT Gate OFF Voltage	VGL	-10	--	-7	V	1,2
TFT Common Voltage	Vcom	-2	--	5	V	*3

Note:
*1. VGH is TFT Gate operating Voltage.
*2. VGL is TFT Gate operating Voltage.
The storage structure of this model is CST(Storage on Common)
*3. Vcom must be adjusted to optimize display quality _Cross talk, Contrast Ratio and etc.

4.2 Back-Light Unit Characeristics

The back-light system is an edge-lighting type with 2 white LEDs. The characteristics of the back-light are shown in the following tables.

Characteristics	Symbol	Min.	Type	Max.	Unit	Notes
Forward Voltage	V_F	2.8	--	3.2	V	-
Forward current	I_F	--	40	-	mA	-
Luminance(With LCD)	Lv		TBD	--	cd/m²	-
LED life time	N/A	----	30,000	--	Hr	Note 1

Note:

(1) The “LED life time” is defined as the module brightness decrease to 50% of original brightness at I_L=20mA/LED. The LED life time could be decreased if operating I_L is larger than 25mA/LED.

Backlight circuit diagram shown in below:

5. Module Function Description

Pin No.	Symbol	LCM Description	remarks
1	GND	Ground
2	LEDK	Power supply for backlight cathode input terminal.
3	LEDA	Power supply for backlight anode input terminal.
4	VCI	Power supply : 2.5V ~ 3.3V
5	RESET	Global reset pin
6	CS	Chip select signal input pin
7	RS	Register select signal.
8	WR	Write strobe signal
9	RD	Read data at the rising edge.
10	DB0	Data bus
11	DB1	Data bus
12	DB2	Data bus
13	DB3	Data bus
14	DB4	Data bus
15	DB5	Data bus
16	DB6	Data bus
17	DB7	Data bus
18	GND	Ground

Pin No.	Symbol	CTP LCM Description	remarks
1	GND	Ground
2	SDA3.0	CTP_Data Singnal
3	SCL3.0	CTP_Clock Singnal
4	RST3.0	CTP _RESET PIN
5	INT3.0	CTP_STOP Singnal
6	VDD3.0	CTP_Power Supply

6. Timing Characteristics

8080 Series MCU Parallel Interface Characteristics: 18/16/9/8-bit Bus

Reset Timing:

7.Optical Characteristics

8. Reliability Test Item

No.	Test Item	Test Condition	Notes
1	High Temp. Storage	+70°C / 96H	1. Functional test isOK. Missing Segment,short, unclear segment non-display,display abnormally and liquid crystal leakare un-allowed. 2. No low temperature bubbles,end seal loose andfall, frame rainbow.
2	Low Temp. Storage	-30°C / 96H
3	High Tempe. Operating	+60°C / 96H
4	Low Tempe. Operating	-20°C / 96H
5	High Temperature /Humidity storage	50°C x 90%RH / 96H
6	Thermal and cold shock	Static state， -30℃（30min） ~60℃ （30min），50 cycles

9. Packing Method----TBD

- END -
