30kg cheap beam Weighing Load Cell Sensor

Single point load cell, which comply with the range of 0.1kg-2T, the applicant for all kinds of electronic scales, packaging scales, and automatic weighing devices.

Most of Hanyu's load cells are the OIML load cells, ROHS load cells. from small load cells to big load cells, with aluminum alloy material, surface anodized treatment, excellent anti-corrosion performance, can be used in various harsh environments.

For HAB-K, the rated capacity is 4, 6, 10, 20, 30kg. price computing scales, counting scales, packing machinerys etc.

Key Features

* Aluminum alloy

* Single Point Load Cell

* 4, 6, 10, 20, 30kg
* Max platform size: 200 x 200mm

Applications

Mainly used for price computing scales, counting scales, packing machinerys etc.

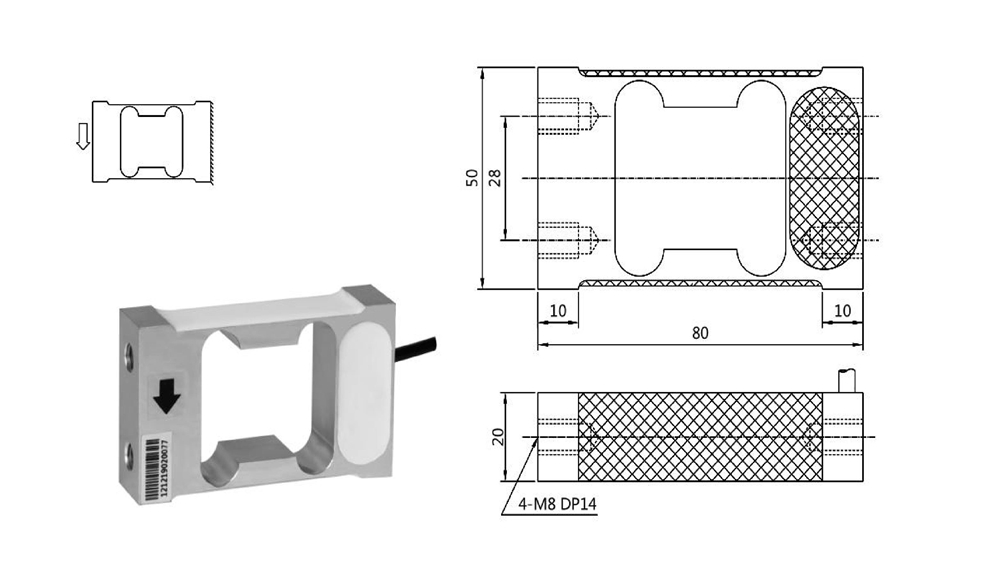

Dimensions

Specifications

Model No.:	HAQ-A
Rated Capacity	4, 6, 10, 20, 30 (kg)
Accuracy Class	G
Rated output	2.0±5%mV/V
Zero balance	±2%R.O.
Input resistance	405±10Ω
Output resistance	350±3Ω
Linearity Error	±0.015%R.O.
Repeatability Error	±0.01%R.O.
Hysteresis Error	±0.01%R.O.

Creep in 30 minute	±0.02%R.O.
Temp.Effect on Output	±0.02%R.O./10°C
Temp.Effect on Zero	±0.02%R.O./10°C
Compensated Temp.Range	-10 - +40°C
Excitation, Recommended	5 - 12VDC
Excitation, Maximum	18VDC
Operating Temperature Range	-20 - +60°C
Safe overload	150%.R.C.
Ultimate overload	200%.R.C.
Insulation Resistance	≥5000MΩ(50VDC)

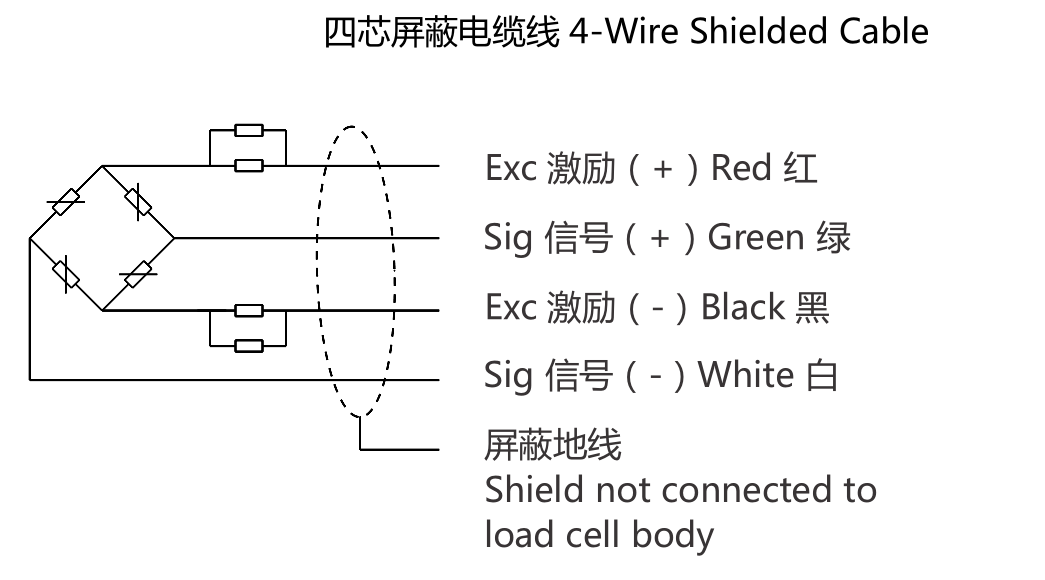

Cable,and length	φ4mm × 0.1m **
Protection Class	IP65
