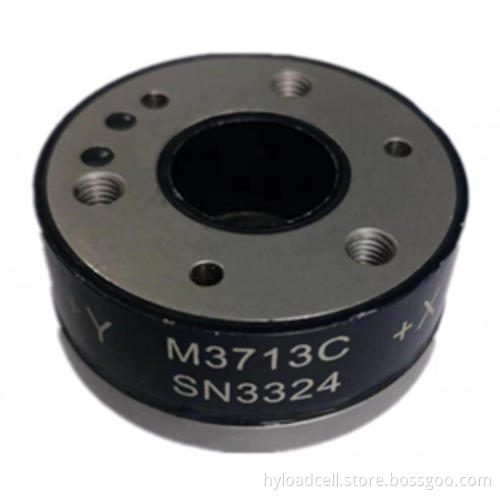

A force sensor is a sensor that can measure force in six directions. It usually consists of three axial force sensors and three axial gyroscopes, which can simultaneously measure force and angle. The application of six axis force sensors is very extensive. The following are some common application areas: industrial robots, medical devices, automotive industry, aerospace, motion analysis. In summary, six axis force sensors have wide applications in various fields, which can help achieve accurate force measurement and control. Features: The M37XX series robot&universal test, with a diameter of 15 to 135mm, 50 to 6400N, and 0.5 to 320Nm, is a matrix decoupled 6-axis force sensor. The M3701 has a diameter of 15mm and a thickness of 14mm, making it the world's smallest commercial 6-axis force sensor. The M37XX series has a non-linear, hysteresis less than 0.5% F.S, and crosstalk less than 2% F.S. It has a 3-fold overload capacity. A decoupling matrix of 6X6 will be provided in the sensor calibration report.

Technical parameter table:

PARAMETERS Nonlinear %FS 1.5 Non-Linearity Hysteresis %FS 1.5 Hysteresis Operating temperature range ℃ -35-65 Use temp.range Safe overload range % 600 Safe overload crosstalk %FS 4 Crosstalk Excitation voltage V 7（DC） Excitation voltage wire m 0.5米Φ3屏蔽线 Cable SIG+ WHITE  SIG- BROWN  EXC+ ORANGE EXC-  YELLOW
