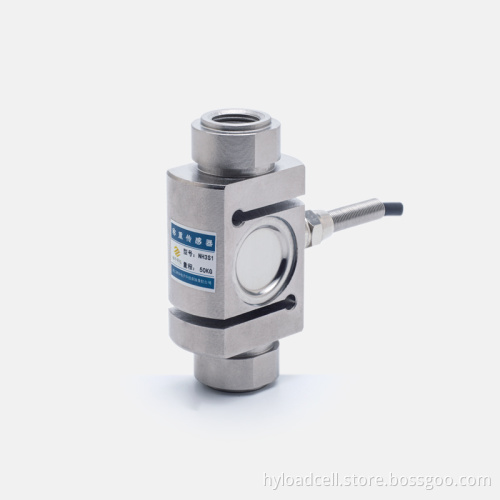

NH3S1 S-Type Load Cell Sensor Arduino
-
$30.00≥10 Piece/Pieces
- Min. Order:
- 10 Piece/Pieces
- Min. Order:
- 10 Piece/Pieces
- Transportation:
- Ocean, Land, Air, Express, express
- Port:
- Shenzhen China
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
| Place of Origin: | Shenzhen China |
|---|---|
| Productivity: | 100000 Piece per Month |
| Supply Ability: | 100000 Piece per Month |
| Payment Type: | L/C,T/T,Paypal |
| Incoterm: | FOB,CFR,EXW,DDP,DDU,CIF |
| Certificate: | ISO9001. ISO14001 |
| HS Code: | 9026809000 |
| Transportation: | Ocean,Land,Air,Express,express |
| Port: | Shenzhen China |
Product Description
Product Description
S-type load cells is the most common sensor among the sensors, which is mainly used to measure the tension and pressure between solids. It is also commonly known as tension pressure sensor. Because its shape is like s shape, it is customarily also known as S-type load cell. This sensor is made of alloy steel, rubber sealed and protected, easy to install and easy to use.S type sentor, It is suitable for hanging scale and batching scale, Electronic force measuring and weighing system such as machine scale.S type load cell .Features: Range: 50KG-20T Widely used for tension measurement in industrial automation process control such as overhead crane scales and hopper scales Structure: Made of alloy steel, designed with an S-shaped structure, with bi-directional load-bearing in tension and compression; Appearance: waterproof and sealed
|
| Wiring method: |
|
|
Technical parameter table:
| PARAMETERS | |||
| Sensor Range | T | 0.05-20 | Rated load |
| Comprehensive error | FS | 0.05% | Comprehensive error |
| sensitivity | mv/v | 2.0±0.2 | Rated output |
| Zero point output | FS | ±1% | Zero balance |
| creep | %FS/30min | ±0.05 | Creep |
| Zero temperature effect | %FS/10℃ | ±0.05 | Temp.effect on zero |
| Sensitivity temperature influence | %FS/10℃ | ±0.05 | Temp.effect on span |
| Nonlinear | %FS | ±0.05 | Non-Linearity |
| Hysteresis | %FS | ±0.05 | Hysteresis |
| Repeatability | %FS | ±0.05 | Repeatability |
| Input impedance | Ω | 350±50 | Input resistance |
| Output impedance | Ω | 350±5 | output resistance |
| insulation resistance | MΩ | ≥5000(100V) | Insulation resistance |
| Temperature compensation range | ℃ | -10-40 | Compensated temp.range |
| Operating temperature range | ℃ | -35-65 | Use temp.range |
| Excitation voltage | V | 5-12（DC） | Excitation voltage |
| Safe overload range | % | 150 | Safe overload |
| wire | m | 3米Φ5屏蔽线 | Cable |

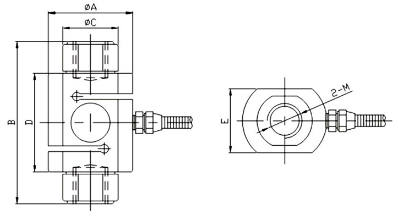

Overall dimensions:
|
