Planar Beam Half Bridge Electronic Micro Load Cell

                                 Micro Planner Beam Load Cell

In order to achieve low cost, easy control, high efficiency, and high reliability, Planar Beam Half Bridge Electronic Micro Load Cellusing minimal devices is introduced to interface the low-voltage PV module. A full-bridge pulsewidth-modulated inverter is cascaded and injects synchronized sinusoidal current to the grid. Moreover, a plug-in repetitive current controller based on a fourth-order linear-phase IIR filter is proposed to regulate the grid current. High power factor and very low total harmonic distortions are guaranteed under both heavy load and light load conditions——Planner Beam Load Cells also are use for electronic. Dynamic stiffness is achieved when load or solar irradiance is changing rapidly.

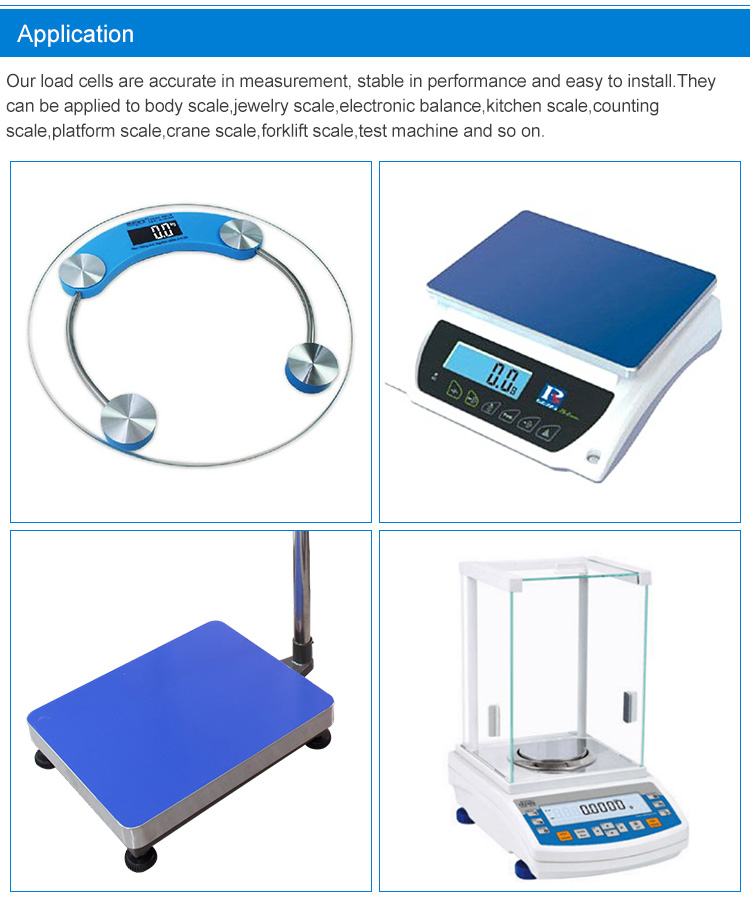

Micro Planar Beam Load Cell NH1A1 range is designed for applications where a low profile solution is needed. Our planar beam load cells would be used in sets of three or four per scale in applications such as retail scales, medical scales or any weighing environment where space is a limiting factor.

Connection mode

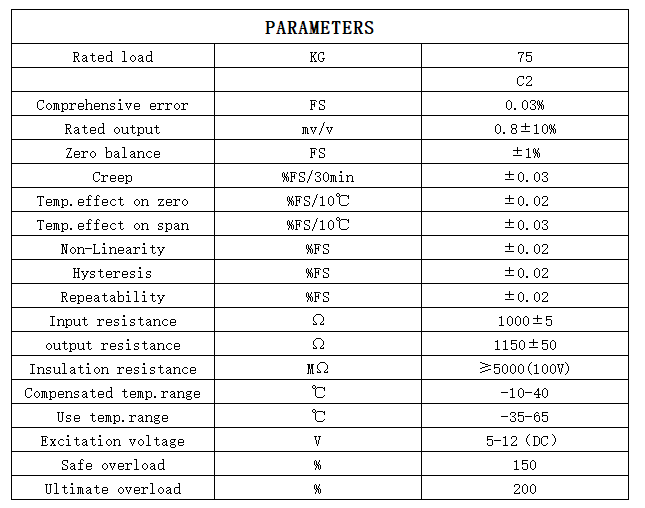

Specification

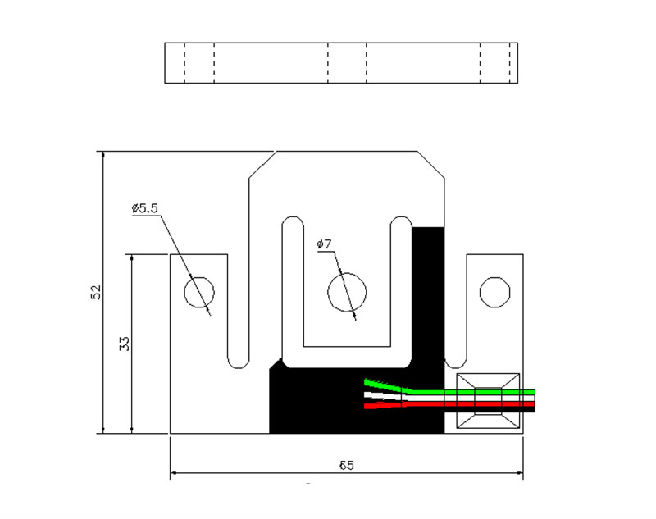

Dimension
