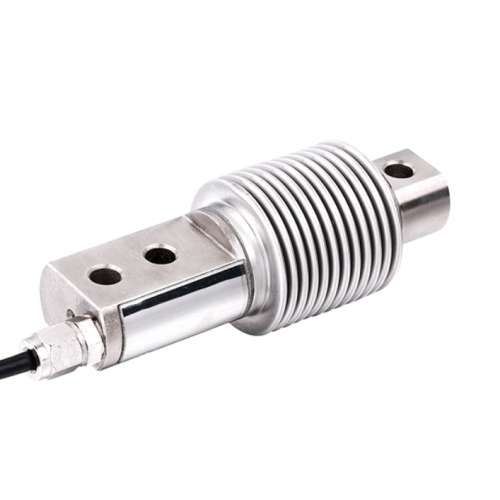

NH6T5 500kg Shear Beam Torque Load Cell
-
$16.00≥800 Piece/Pieces
- Min. Order:
- 800 Piece/Pieces
- Min. Order:
- 800 Piece/Pieces
- Transportation:
- express, Air, Land, Ocean
- Port:
- Shenzhen China
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
| Place of Origin: | Shenzhen China |
|---|---|
| Productivity: | 100000 Piece per Month |
| Supply Ability: | 100000 Piece per Month |
| Payment Type: | L/C,T/T,Paypal |
| Incoterm: | FOB,EXW,CFR |
| Certificate: | ISO9001. ISO14001 |
| HS Code: | 9026809000 |
| Transportation: | express,Air,Land,Ocean |
| Port: | Shenzhen China |
Product Description
Product Description
A shear force sensor is a sensor used to measure the shear force applied to an object. It usually consists of an elastic element and a sensitive element.
Shear force sensors are widely used in industrial automation, robotics, medical equipment, aerospace and other fields. They can be used to measure the load of mechanical equipment, control the strength of robots, monitor the pressure of medical equipment, and so on.
Shear force sensors have the advantages of high sensitivity, high accuracy, and fast response speed. At the same time, they also have a certain level of anti-interference ability and durability.
Features:
Range: 50-500KG
Suitable for multi head weighing equipment, low capacity containers, and hopper weighing systems
Structure: Stainless steel material
Appearance: waterproof and sealed
|
|
|
Wiring method: |
|
|
| Technical parameter table |
| PARAMETERS | |||
| Sensor Range | KG | 5-500 | Rated load |
| Accuracy level | C3 | ||
| Comprehensive error | FS | ±0.03% & ±0.02% | Comprehensive error |
| sensitivity | mv/v | 2.0±0.2 | Rated output |
| Zero point output | FS | ±1% | Zero balance |
| creep | %FS/30min | 0.03 | Creep |
| Zero temperature effect | %FS/10℃ | 0.02 | Temp.effect on zero |
| Sensitivity temperature influence | %FS/10℃ | 0.03 | Temp.effect on span |
| Input impedance | Ω | 350±5 | Input resistance |
| Output impedance | Ω | 405±10 | output resistance |
| insulation resistance | MΩ | ≥5000(100V) | Insulation resistance |
| Temperature compensation range | ℃ | -10-40 | Compensated temp.range |
| Operating temperature range | ℃ | -35-65 | Use temp.range |
| Excitation voltage | V | 5-12（DC） | Excitation voltage |
| Safe overload range | % | 150 | Safe overload |
| Protection level | IP68 | Defend grade | |
| wire | m | 1.5米Φ5屏蔽线 | Cable |
|
Overall dimensions: |
|
|
|
