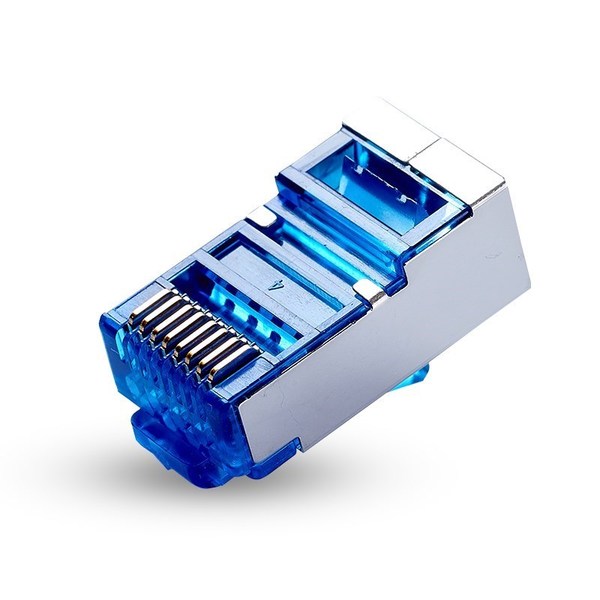

Color Cat6/CAT7 RJ45 Connector shield Nickel-plated
-
$0.42≥1000 Piece/Pieces
- Min. Order:
- 1000 Piece/Pieces
- Min. Order:
- 1000 Piece/Pieces
- Transportation:
- Ocean, Land, Air, Express, Others
- Port:
- SHENZHEN
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | China |
|---|---|
| Productivity: | 100000 Piece/Pieces per Day |
| Supply Ability: | 100000 Piece/Pieces per Day |
| Payment Type: | T/T,Paypal,Others |
| Certificate: | ISO ROHS UL CE |
| HS Code: | 8544421900 |
| Transportation: | Ocean,Land,Air,Express,Others |
| Port: | SHENZHEN |
With a good quality Rj45 Plug, you can hear the sound of clank when you flick the shrapnel with your fingers. If you move the shrapnel forward to 90 degrees, the shrapnel will not break, and it will return to its original shape and the elasticity will not change! You can hear a crisp "click" when inserting the finished Rj45 Wall Plug into the hub device or the Lan Wire card. We also have a metal shrapnel Rj45 Plug Wiring. The shrapnel can be disassembled separately, which solves the problem that the plastic shrapnel is easy to break or lose its elasticity in the Power Wire.
| Electrical |
Current Rating |
1.5AMPS at 25℃ |
|
Voltage Rating |
125V/AC |
|
|
Insulation Resistance |
1000MΩ/Min at 500V DC EIA-364-21C |
|
|
Withstand Voltage |
1500V DC at 0.5MA 50Hz/ 60Hz/ Min EIA-364-20B |
|
|
Connector Resistance |
40MΩ Max, EIA-364-23B |
|
|
Mechanical |
Retension Strength |
57.83N/ Min EIA-364-98 |
|
Durability |
1000 Mating Cycles/ Min |
|
|
Environmental |
Yes |
|
|
Operation Temperature |
-20℃ to 70℃ |
|
|
Storage Temperature |
-10℃ to 40℃ Relative Humidity <80% |
|
|
Material |
Shell/ Housing |
Eco-friendly Plastic |
|
Flammablity Class |
Flammablity Class |
|
|
Terminal |

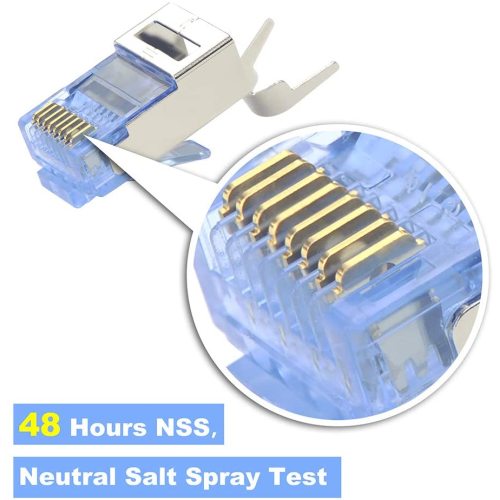

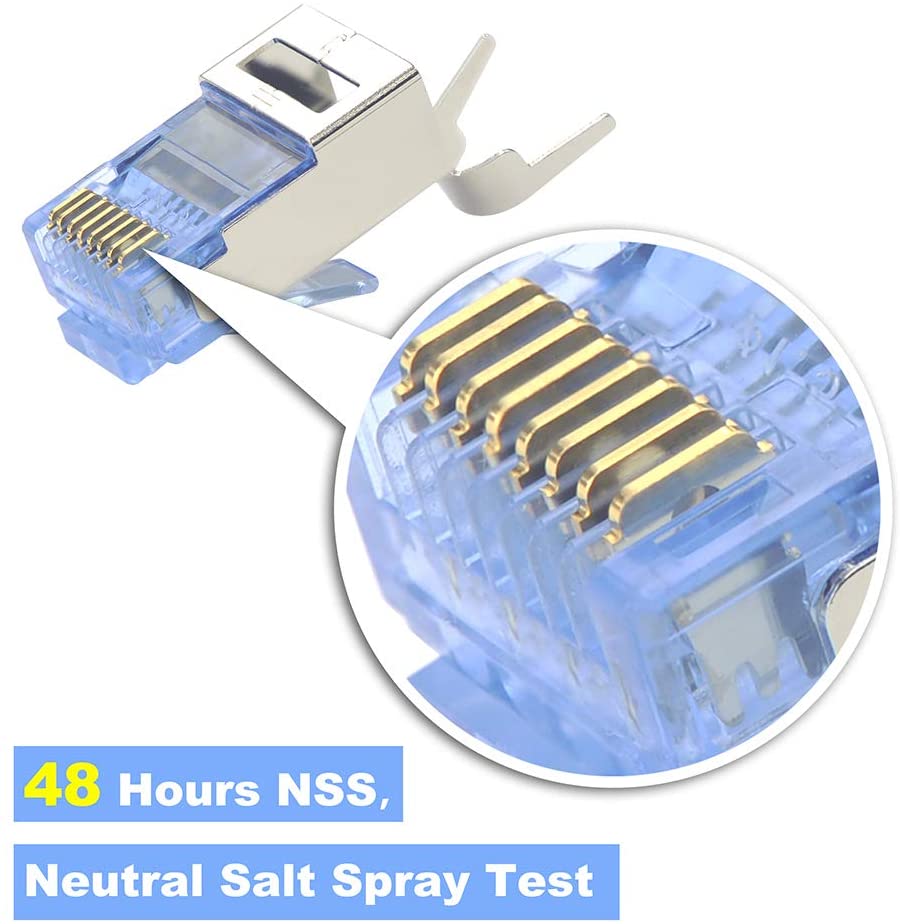

Thickness 0.3mm Phosphor Bronze Selectrive Gold-plated Over Nickel |
|
|
Gold-plated |
Fu, 3u, 5u, 15u, 30u and 50u |
Description:
|

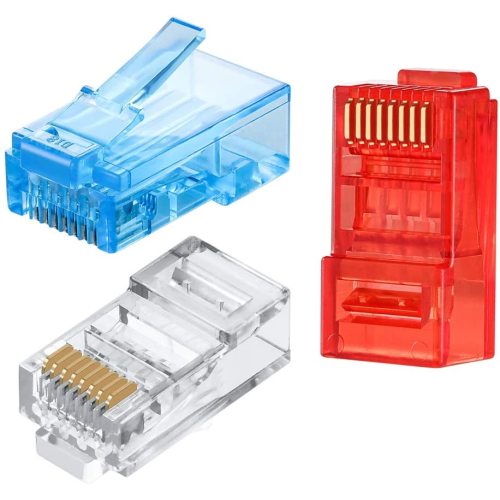

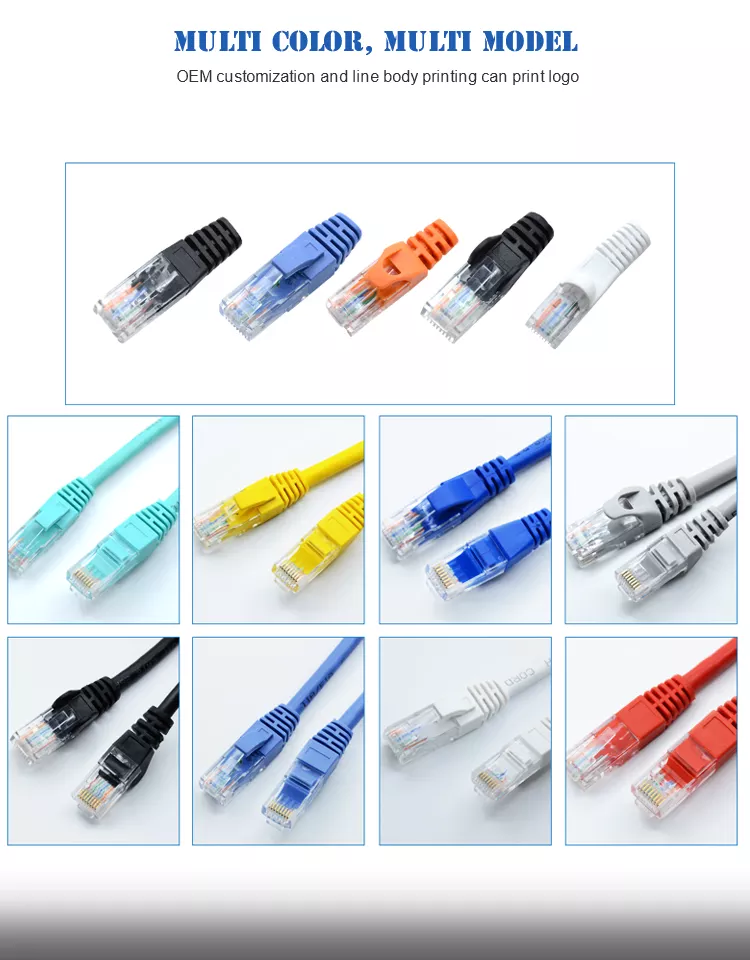

1). OEM the Transparent color |
|
2). Meet or exceed the requirement in the cat5e/cat6/cat7/Cat8 T568B |
|
3). Contacts are nickel plated, phosphor bronze with 1U, 3U, 15U….50U gold plated |
|
4). Exclusive stagger conductors guide design reduces near end cross talk |
|
5). Accept 24AWG, 26AWG 28AWG solid with a insulation diameter of 0.56mm, 0.50mm, 0.40mm |
OEM/ODM Service

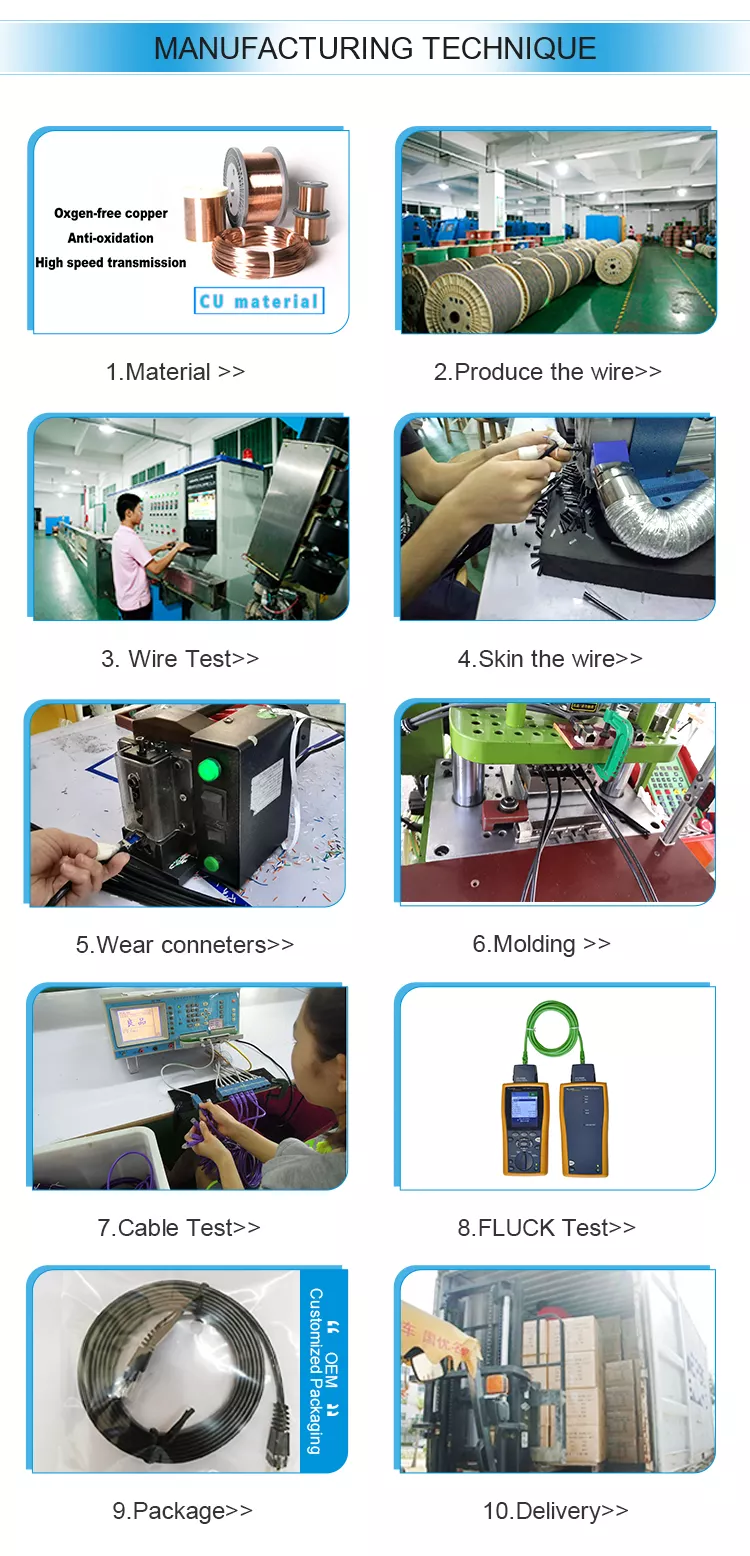

We have specialized in cable R＆D and manufacturing for nearly 11 years. You can design your own cable, choose your favorite cores, shield, jacket, connector, package.
Application
Delivery
1. By Air or by Sea for batch goods.
2. Customers specifying freight forwarders or negotiable shipping methods.
3. Delivery Time: 3-5 days for stock samples; 15-25 days for batch goods after confirm the received the deposit.
Packing & Delivery
Packing:
1. 1pcs/pe bag
2. OEM bag/Carton optional
FAQ
Q1: Are you a manufactory?
Yes, our company is a professional wires and cables manufactory with 11 years of experience, we will provide you with the most competitive goods and products.
Q2: Do you accept OEM and ODM?
Yes, OEM and ODM cooperating mode is available.
All products are made of new environmental protection materials, the core, color, length, company LOGO, injection model can be customized, and network wire can pass FLUKE test.
Q3: May I know the status of my order?
A7: Yes. The order information and photos at different production stage of your order will be sent to you and the information will be updated in time.
Please contact us if you have any questions or other requirement.
