Egg Shape Carabiner Spring Snap Hook
- Min. Order:
- 50 Piece/Pieces
- Min. Order:
- 50 Piece/Pieces
- Transportation:
- Ocean, Air
- Port:
- Yantian China
Your message must be between 20 to 2000 characters
Contact NowPlace of Origin: | China |
---|---|
Payment Type: | L/C,T/T |
Incoterm: | FOB |
Certificate: | ISO9001 |
Transportation: | Ocean,Air |
Port: | Yantian China |
Egg Shape Carabiner Spring Snap Hook

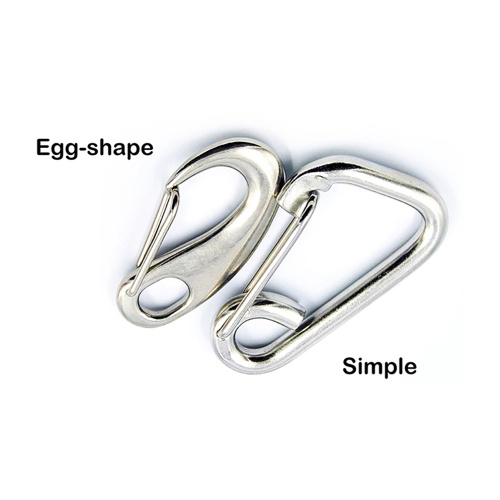

The Egg Shape Carabiner Spring Snap Hook belongs to the Spring Hooks Shackles Cable Clamps. (Show the product Bolt Snap Hook Square Base.) This carabiner has two shapes, one is egg-shaped and the other is triangular. (Show the product Spring Hook Dual Head.) Both buckles have a round hole at the bottom for attaching ropes, chains, and other connecting parts. Both buckles are topped with hooks. The hook opening is closed with a spring clip to prevent the carabiner from disengaging. (Show the product Wire Clip Cable Clamp Double.) The hook shape of the egg-shaped carabiner is a semicircle. The hook shape of the triangular climbing hooks is flat on the top. The material of this carabiner can be stainless steel or zinc alloy electroplating. (Show the product D Shackle Stainless Steel.) For these two carabiners, we have three sizes to choose from, their lengths are 50 mm/ 1.9685", 70mm / 2.7559" and 100 mm/ 3.9370". If customers need other shapes and sizes, they can be specially customized. (Show the product Bow Shackle Heavy Duty.) Our company is confident to satisfy customers with high quality, reasonable price, and excellent service. If you have such demand, please don't hesitate to contact us.
We produce ODM and OEM products. All materials are Rohs and REACH compliance. Please don't hesitate to contact us for details, drawings, and quotes.

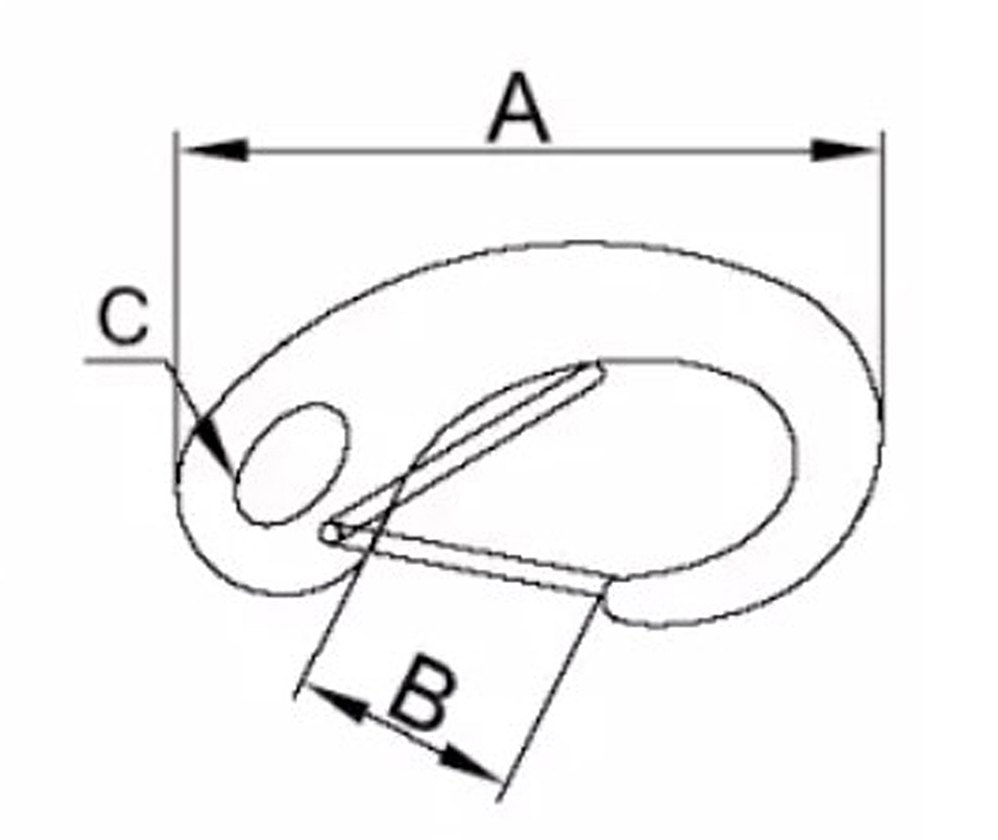

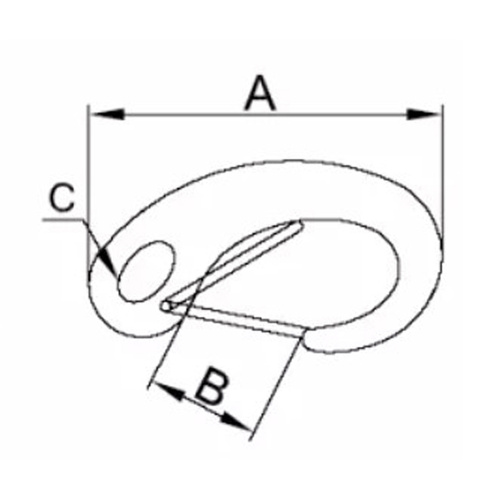

Drawing
Size Table
A ( mm / inch ) | B ( mm / inch ) | C ( mm / inch ) | WLL ( Work Load Limit ) |
50 / 1.9685" | 10 / 0.3937" | 6 / 0.2362 | 70 kgs / 150 lbs |
70 / 2.7559" | 13 / 0.5118" | 10 / 0.3937" | 200 kgs / 440 lbs |
100 / 3.9370" | 23 / 0.9055" | 15 / 0.5906" | 400 kgs / 900 lbs |
